4. Place the trim ring over the back box as shown in Figure 4.14.
Figure 4.14 Installing Trim Ring
5. Attach the Door assembly to the back box using screws provided.
6. After the annunciator wiring to the panel has been completed (described in Section Figure 4.5), replace the electronic assembly in
the back box. Place the bezel over the back box and tighten the set screws on the bezel.
4.5.2 Connecting the RA-100 to the Panel

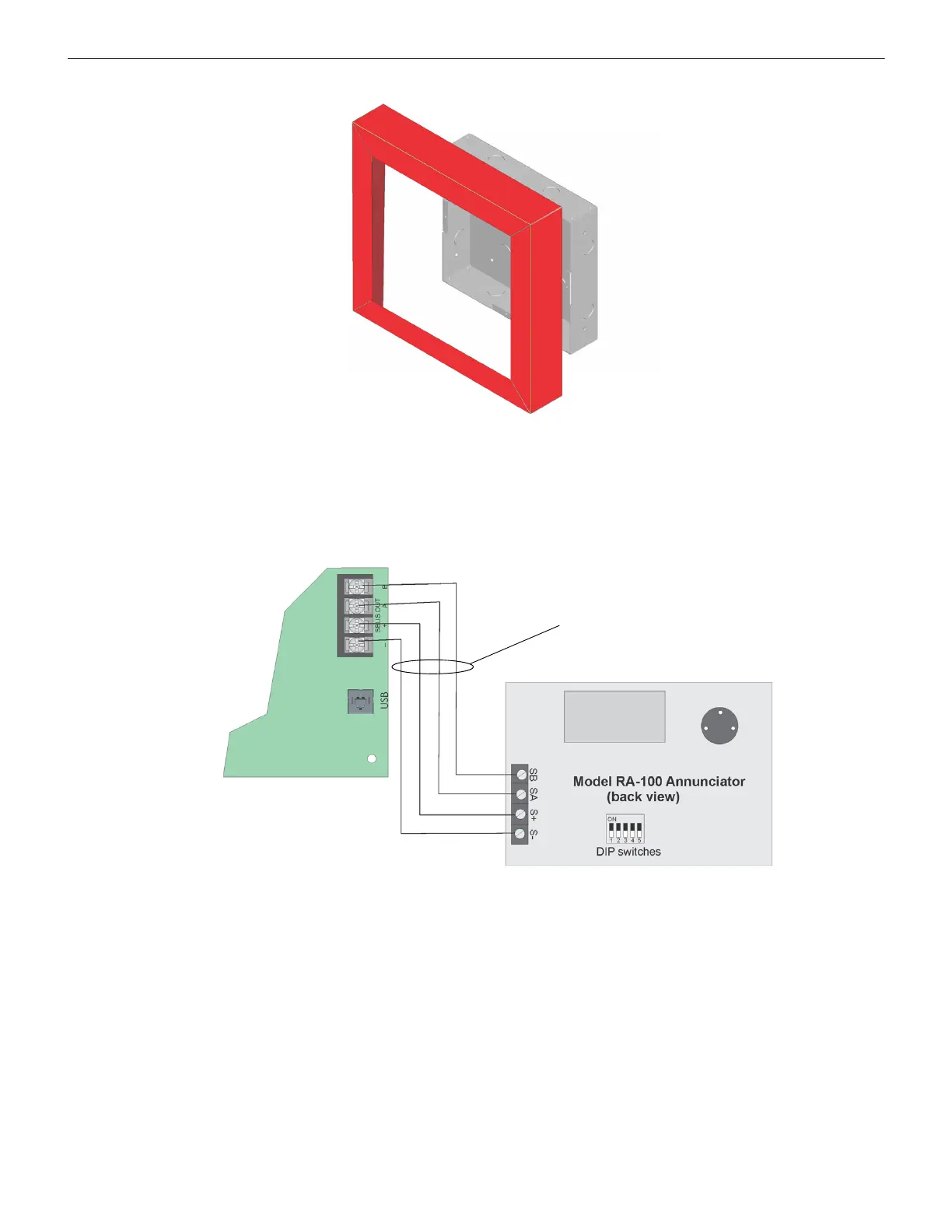

Connect the RA-100 to the panel as shown in Figure 4.15.
Figure 4.15 Model RA-100 Connection to the Panel
