IFP-300 / IFP-300ECS Manual P/N LS10145-001SK-E:B 12/18/2017 50
4.14 Telephone Connection
Connect the telephone lines as shown in Figure 4.42. The Model 7860 phone cord is available from Honeywell for this purpose. A num-
ber of programmable options are available for customizing telephone lines. These options are described in Section 9.6.

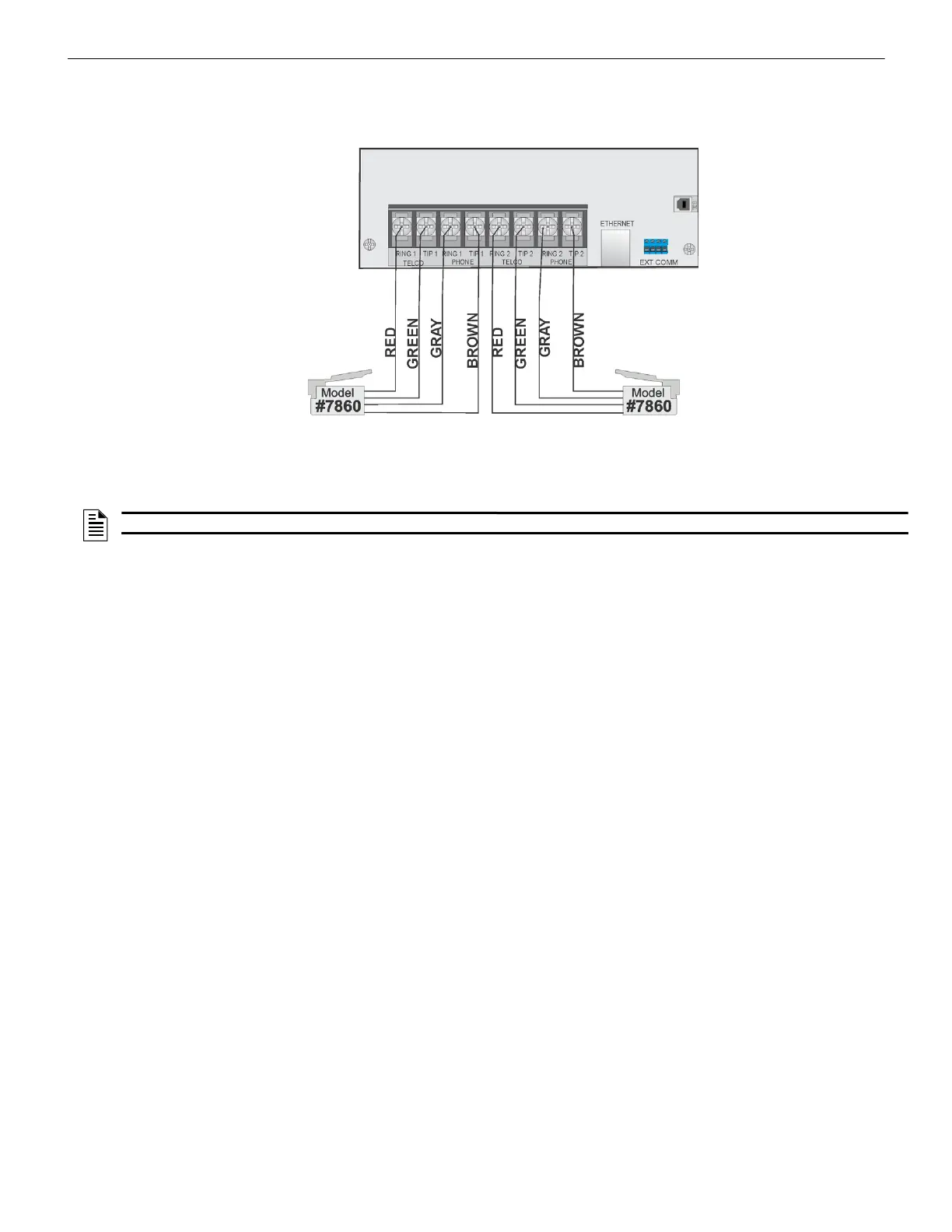

Figure 4.42 Connection of Telephone Lines
4.15 Notification Appliance/Auxiliary Power Circuits
Four outputs are built-in to the IFP-300 FACP which can be programmed to be used as NACs (Class A or Class B) or as Aux power.
This section of the manual explains how to install conventional notification appliances and how these terminals can be used for auxiliary
power.
4.15.1 Conventional Notification Appliance
This sub-section of the manual explains how to install conventional notification appliances for Class A and Class B configurations.
Class B Notification Wiring
You must use an appliance from the list of compatible appliances in Appendix A.
To install a Class B notification appliance circuit:
1. Wire Class B Notification appliances as shown in Figure 4.43.
Supervised
NOTE: These circuits are considered regulated unless used for releasing type service, in which case they are considered special applications
