IFP-300 / IFP-300ECS Manual P/N LS10145-001SK-E:B 12/18/2017 36
The RA-1000 comes from the factory fully assembled. You must disassemble it for mounting. To disassemble the annunciator, use a 5/64
hex wrench to remove the set screws, located on the bottom of the annunciator bezel. (See Figure 4.18 for location of the set screws.)

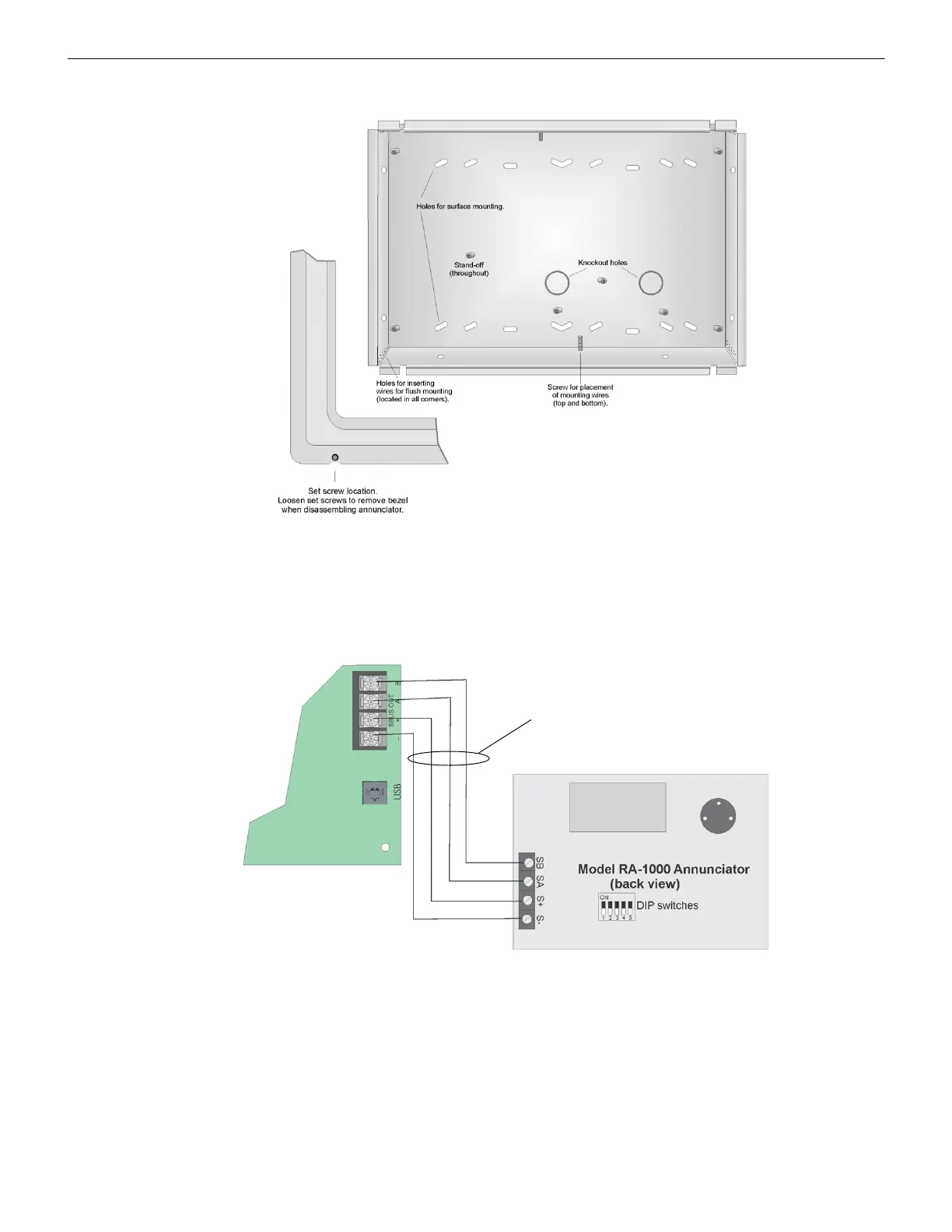

Figure 4.18 Annunciator Back Box and Bezel Details
Flush Mounting
This section of the manual describes flush mounting. You can flush-mount with or without an electrical box.
4.6.2 Connecting the RA-1000 to the Panel
Connect the RA-1000 to the panel as shown in Figure 4.19.
Figure 4.19 Model RA-1000 Connection to the Panel
Supervised
Power Limited Class B
To Next Page
