IFP-300 / IFP-300ECS Manual P/N LS10145-001SK-E:B 12/18/2017 46
4.11.4 Dry Contact Wiring
The 8 input circuits on the 5880 board are for monitoring switch inputs-any type of switch supported by the control panel can be used
with the 5880. For example, you can use a 5880 to monitor pull stations, water flow, tamper, reset, or silence switches.

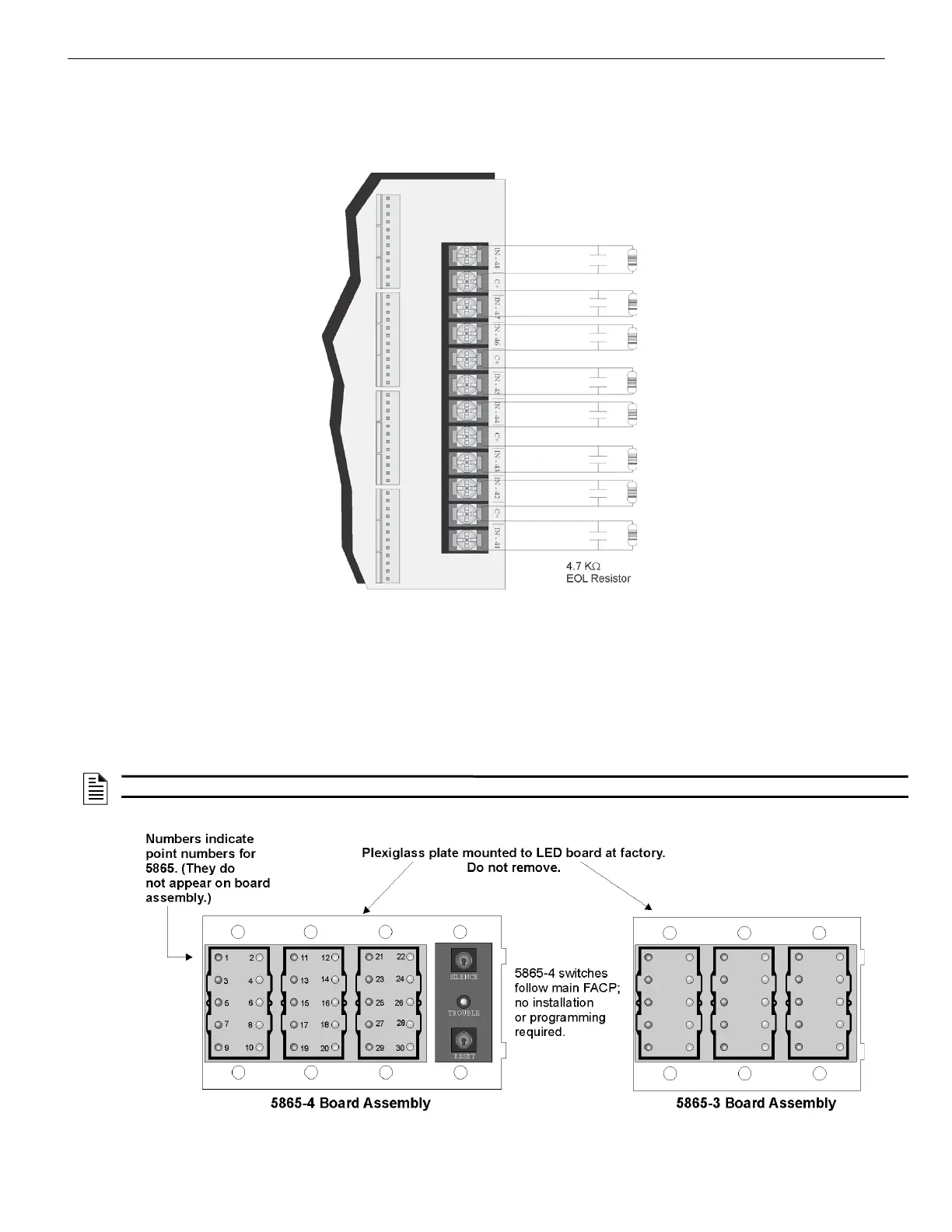

Wire dry contacts as shown in Figure 4.36. Notice grouping of terminals; power terminals are shared by two inputs.
Figure 4.36 Dry Contact Wiring
4.12 5865-3 / 5865-4 LED Annunciator Installation
The 5865-3 and 5865-4 are LED annunciators. The 5865-4 has 30 mappable LEDs, remote silence and reset key switches, and a general
system trouble LED. The 5865-3 has 30 mappable LEDs only. These are arranged as 15 pairs of red (typically used for alarm) and yel-
low (typically used for trouble) LEDs.
Installation of the 5865-3 and 5865-4 is identical. The key switches and the trouble LED follow the behavior of other system annuncia-
tors and do not require any installation steps. The following sub-sections describe how to install the 5865-3 and 5865-4 hardware. Refer
to Section 9 for programming information.
Figure 4.37 5865-3 and 5865-4 Assembly (front view)
NOTE: This manual uses “5865” when referring to aspects of the 5865-3 and 5865-4 that are common to both models
