IFP-300 / IFP-300ECS Manual P/N LS10145-001SK-E:B 12/18/2017 60

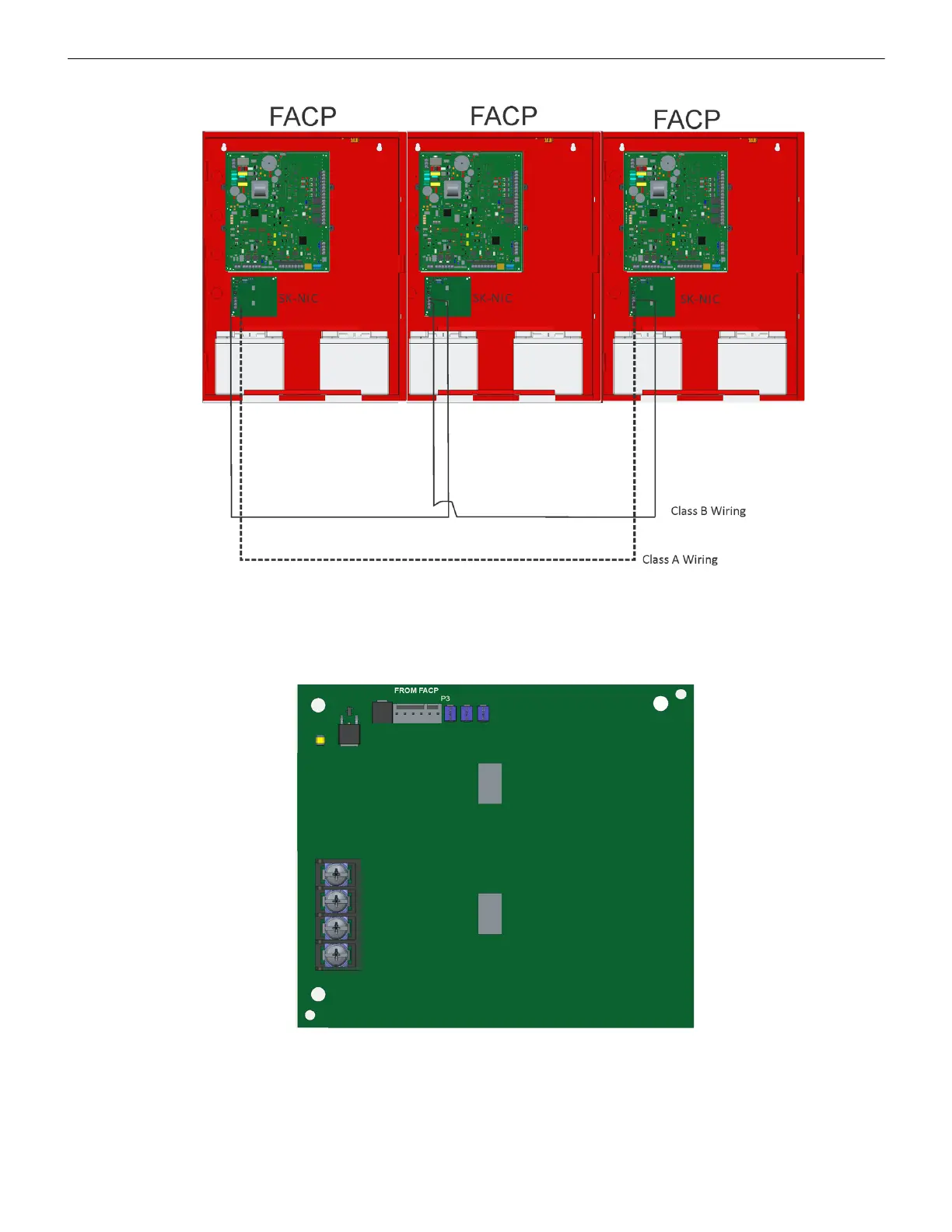

Figure 5.2 Internal SK-NIC Wiring Option
5.3 SK-NIC Wiring Options
Networking a group of IFP-300/ECS requires the use of a network interface card with each panel. The SK-NIC connects to other net-
worked units using unshielded, twisted-pair wiring or fiber-optic cable.
Figure 5.3 SK-NIC Network Interface Card
