7.10.1 SLC Devices with DIP Switches
Input and relay module addresses are set using the DIP switches on the module board. The chart below shows the available addresses.
For example, to select address 3, place DIP switches 1 and 2 in the up position. The range of valid addresses is 1-127. 0 is an invalid
address.

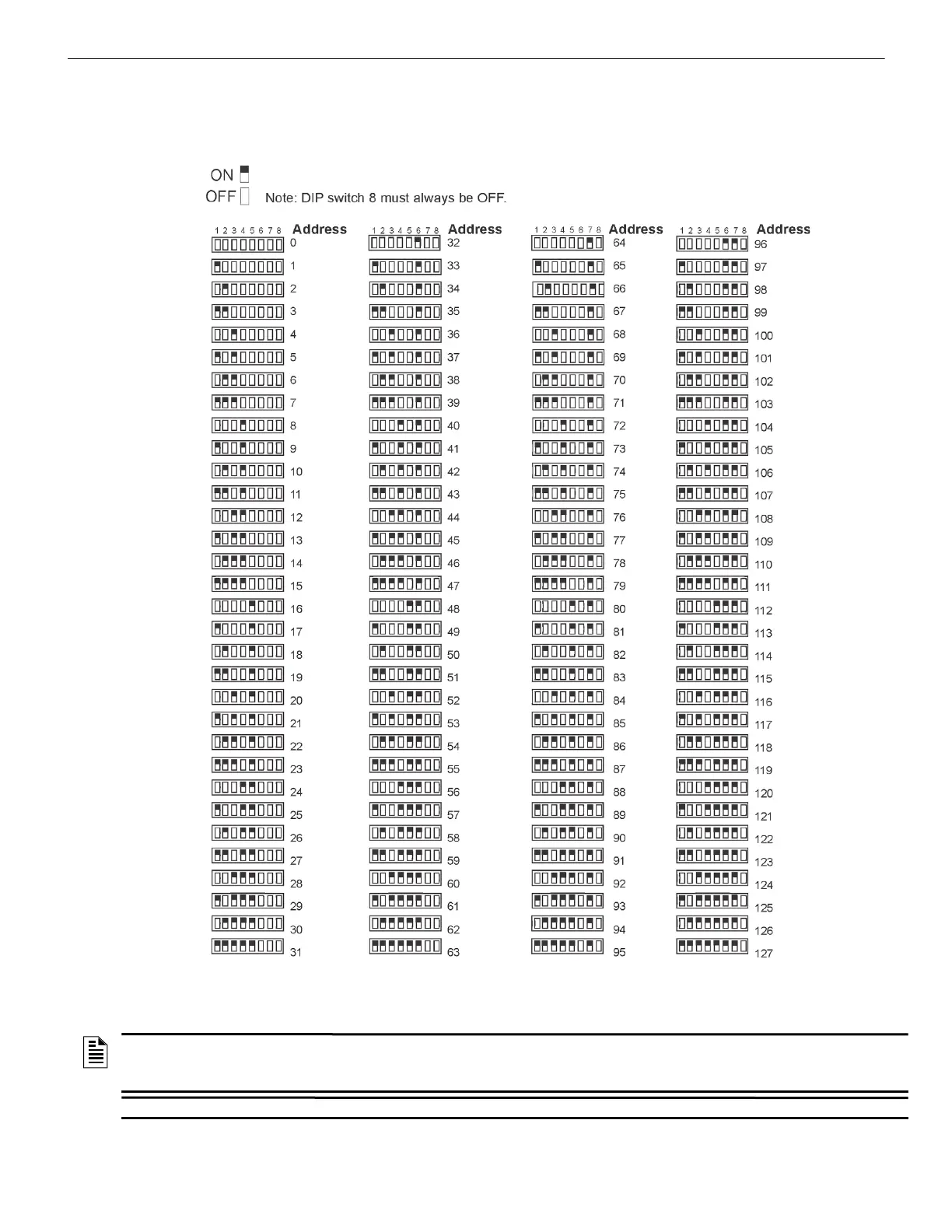

Figure 7.7 SD SLC Device Addressing Using DIP Switches
7.11 WIDP-WGI Wireless Gateway
For more information regarding Gateway wiring instructions, see SWIFT manual LS10036-000FH-E or LS10036-000SK-E.
NOTE: The WIDP-WGI or SK-WGI, as part of the wireless network, has been tested for compliance with the Federal Communications
Commission (FCC) requirements of the United States Government. It has not been evaluated for use outside the USA. Use of this system
outside the USA is subject to local laws and rules to which this product may not conform. It is the sole responsibility of the user to determine if
this product may be legally used outside the USA.
NOTE: It is recommended to use the same wire gauge if there are multiple connections to the same terminal.
