81 IFP-300 / IFP-300ECS Manual P/N LS10145-001SK-E:B 12/18/2017
When using T-taps, the total length of all taps and the main bus must be met in addition to the maximum distance requirements for the
various wire gauges.

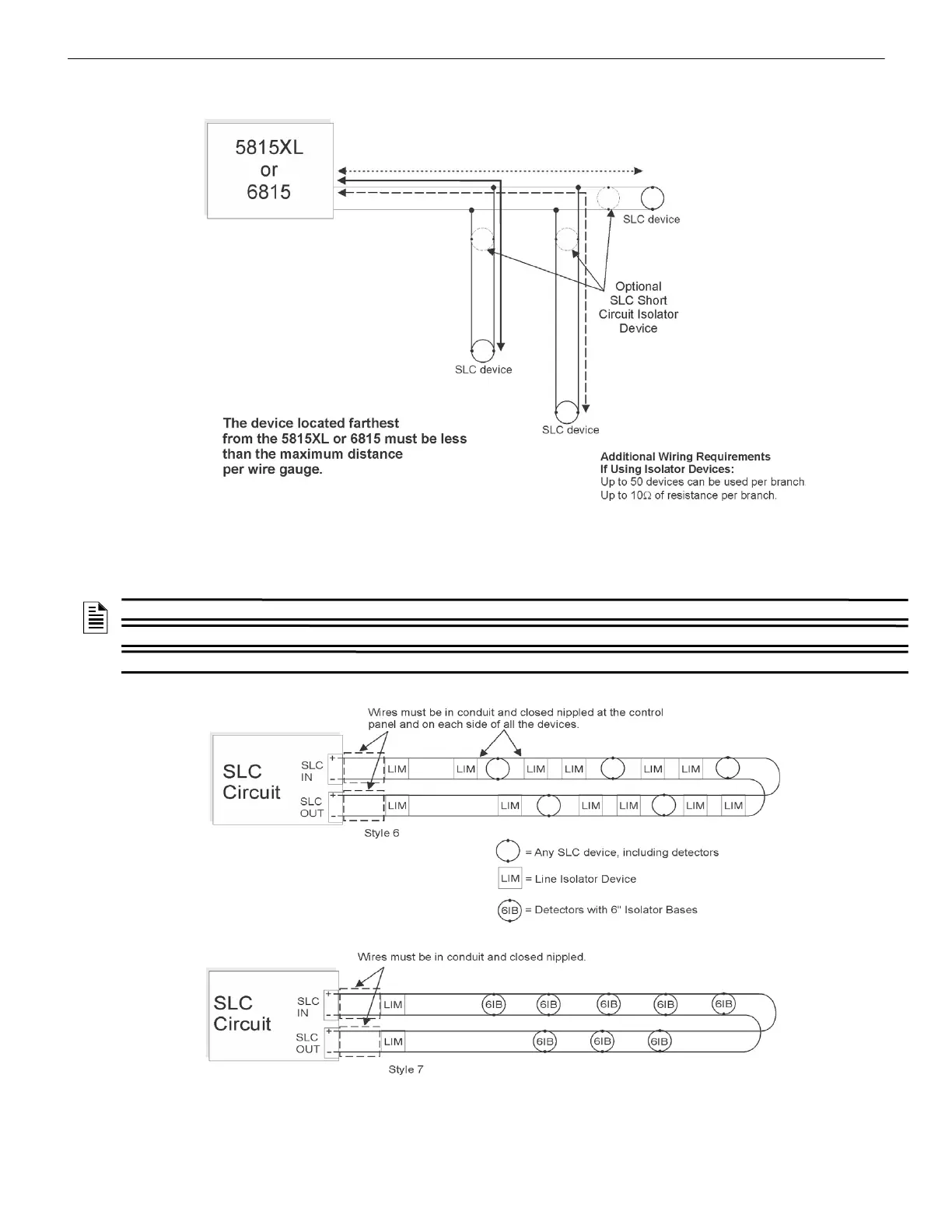

Figure 7.2 Calculating Wire Run Length for a T-tap
7.7.1 Wiring 5815XL or 6815 in Style 6 & 7 (Class A) Configuration
Figure 7.3 illustrates how to wire the SLC loop for Class A installations.
.
Figure 7.3 Class A SLC Configuration
NOTE: Style 6 does not use short circuit isolator devices
NOTE: Style 7 requires an isolator module as the first device on the in and the out loop
NOTE: No t-taps allowed on class A SLC loops
