8.2.4 Mapping LED Points
Figure 8.7 is a simple example showing how LED points are mapped to zones and output groups. Typically you would create two output
groups for each zone, one for alarms and one for troubles. (LED points are available when Models 5865-3/4 and/or 5880 are used with
the system.)

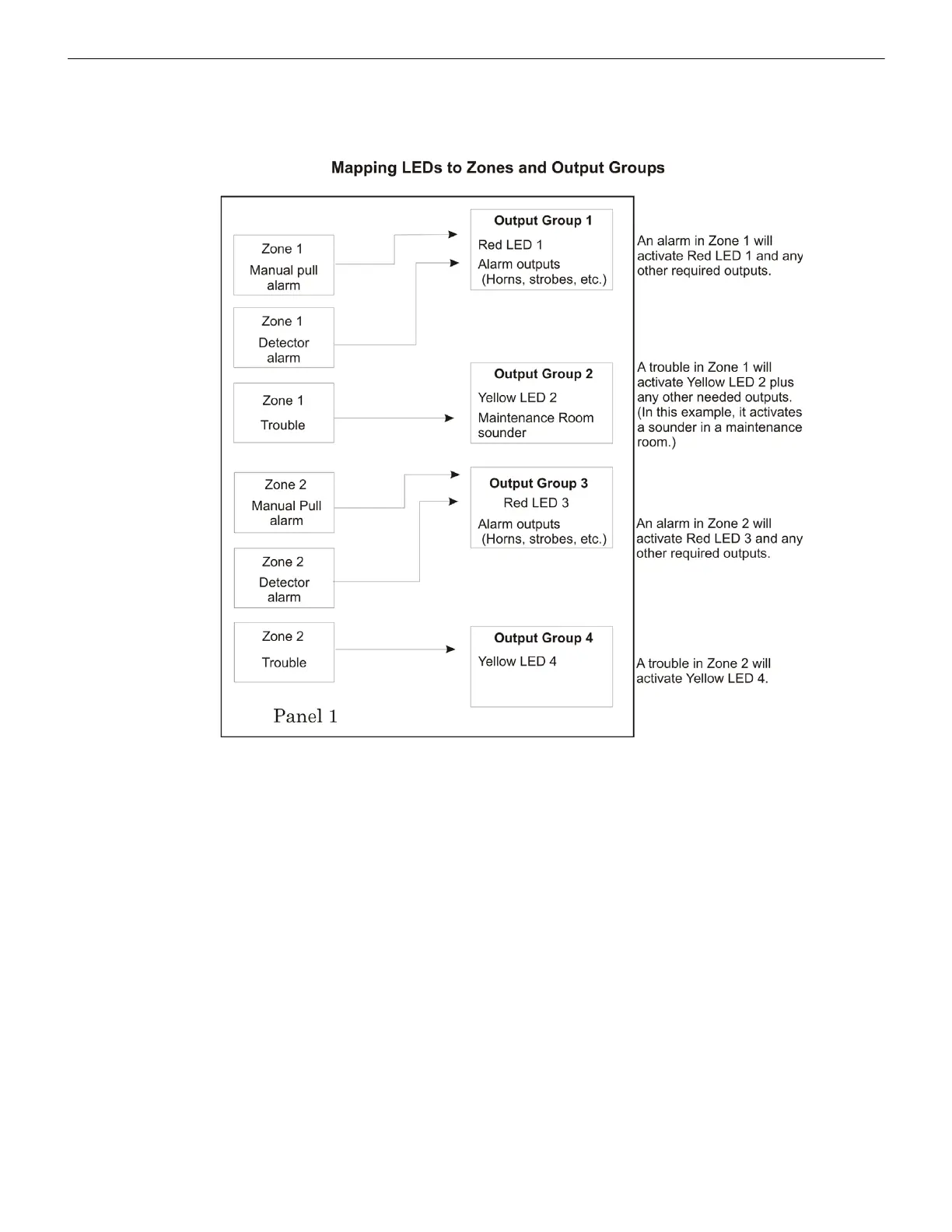

Figure 8.7 Example of LED Points Mapped to Output Groups
(applies to Models 5865-3/4 and 5880)
