65 IFP-300 / IFP-300ECS Manual P/N LS10145-001SK-E:B 12/18/2017
Fiber Optic and Twisted Pair Wiring between Multiple Panels
A mixture of fiber optic cable and twisted pair wiring between multiple panels is shown in Figure 5.10. Class A cabling is shown with
dotted line.

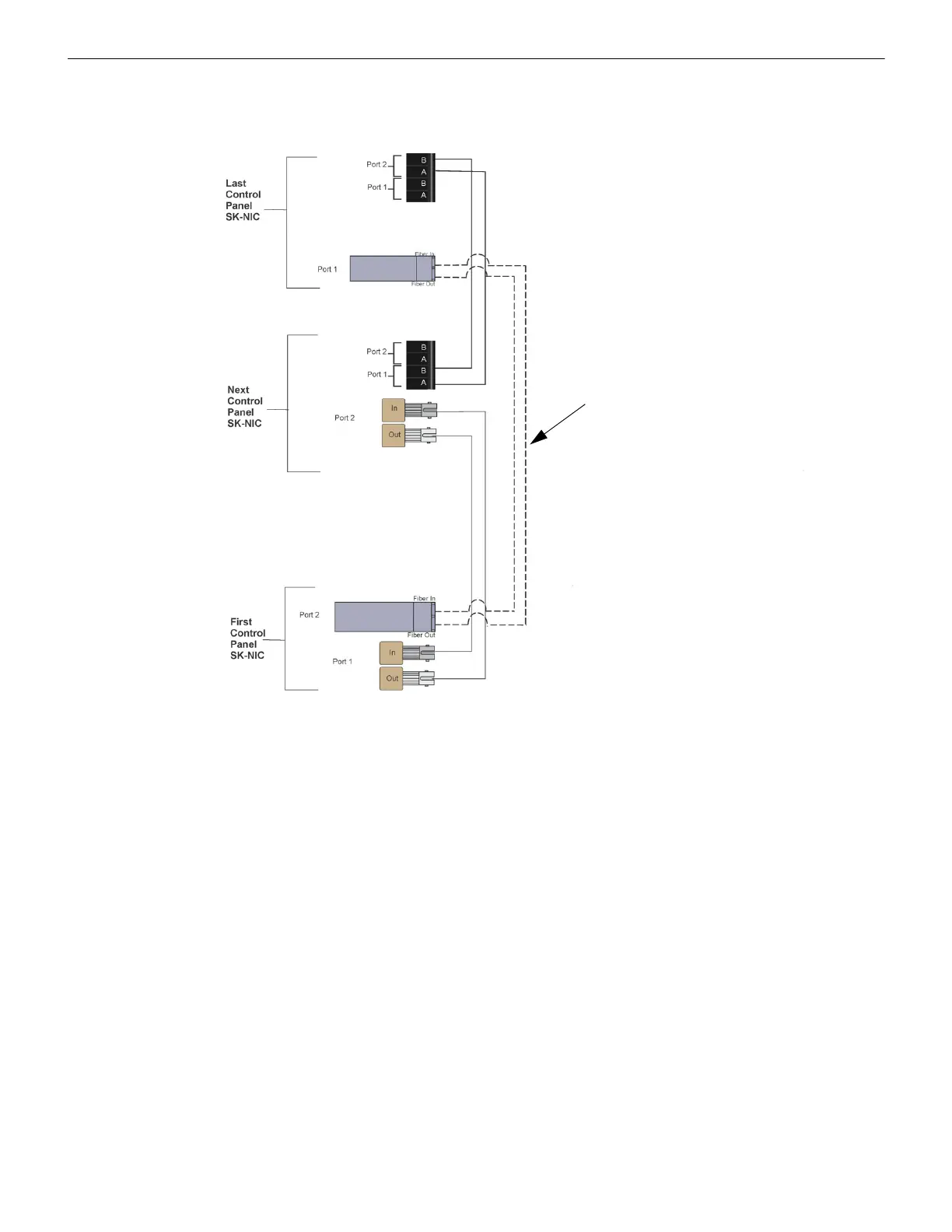

Figure 5.10 Twisted Pair and Fiber Optic Combination Wiring Example
Class A wiring
