IFP-300 / IFP-300ECS Manual P/N LS10145-001SK-E:B 12/18/2017 38
Follow these steps to flush mount the RA-2000
1. The back box dimensions are 9¼” W x 8 3/8” H. The minimum depth required is 2". The back box can be mounted prior to the
complete installation of the RA-2000 using any of the mounting holes shown in Figure 4.10.

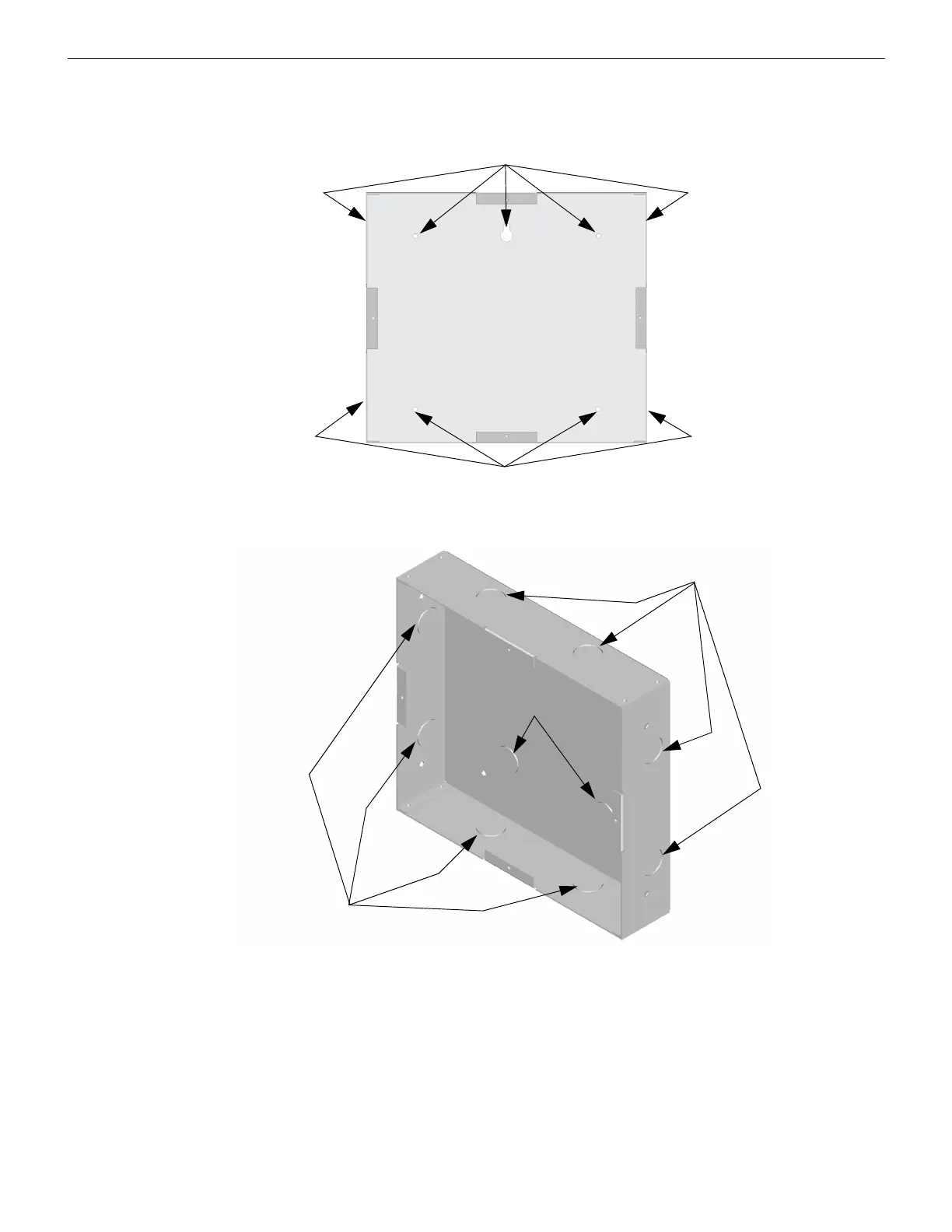

Figure 4.21 Back Box Mounting Holes
2. Remove knockout holes as needed for wires. See Figure 4.11 for backbox knockout locations.
Figure 4.22 Back Box Knockout Locations
3. Wire the annunciator board to the main control panel. As described in Section 4.7.2.
Mounting Holes
Mounting Holes
Wire Knockouts
Wire Knockouts
Wire Knockouts
To Next Page
