Galaxy 2 Series Installation Manual

01 Format

The communicator provides three signalling formats:

• DTMF

• SIA

• Contact ID

Once the format has been selected, the alarm and event triggers that the panel will transmit to the ARCs, may

be programmed.

1 = DTMF (Dual tone Multiple Frequency)

DTMF is the fast format. When DTMF format is selected, the operation of the dialler is similar to that of a

hardwired 8-channel communicator.

Programming Channels

On selecting DTMF, the keypad displays 1 = Channels 1 – 8. All eight channels can be individually pro-

grammed. To access the Channels option press the ent key; the programming details of the first channel are

displayed. Select the required channel using the A and B keys or by entering the channel number directly and

press the ent key.

1 = Channels 1-8

Each channel can be programmed with the following attributes:

1 = Function

Any of the system output functions (see option 53 = Outputs) can be assigned to each of the channels

1 – 8. Channel 3 defaults to output function 04 = INTRUDER. Channel 5 defaults to 32=OMIT.

Channel 7 defaults to 20 = CONFIRM. All other channels default to 0 = NOT USED. Select the

required output function using the A and B keys or by entering the function number directly. Once the

required function is displayed, press the ent key to assign the function to the selected channel. For

example, a PA function programmed on channel 2 results in a PA code to be transmitted on channel 2 to

the ARC when there is a PA alarm activation.

2 = Not used

3 = Not used

56 - Comms (cont’d)

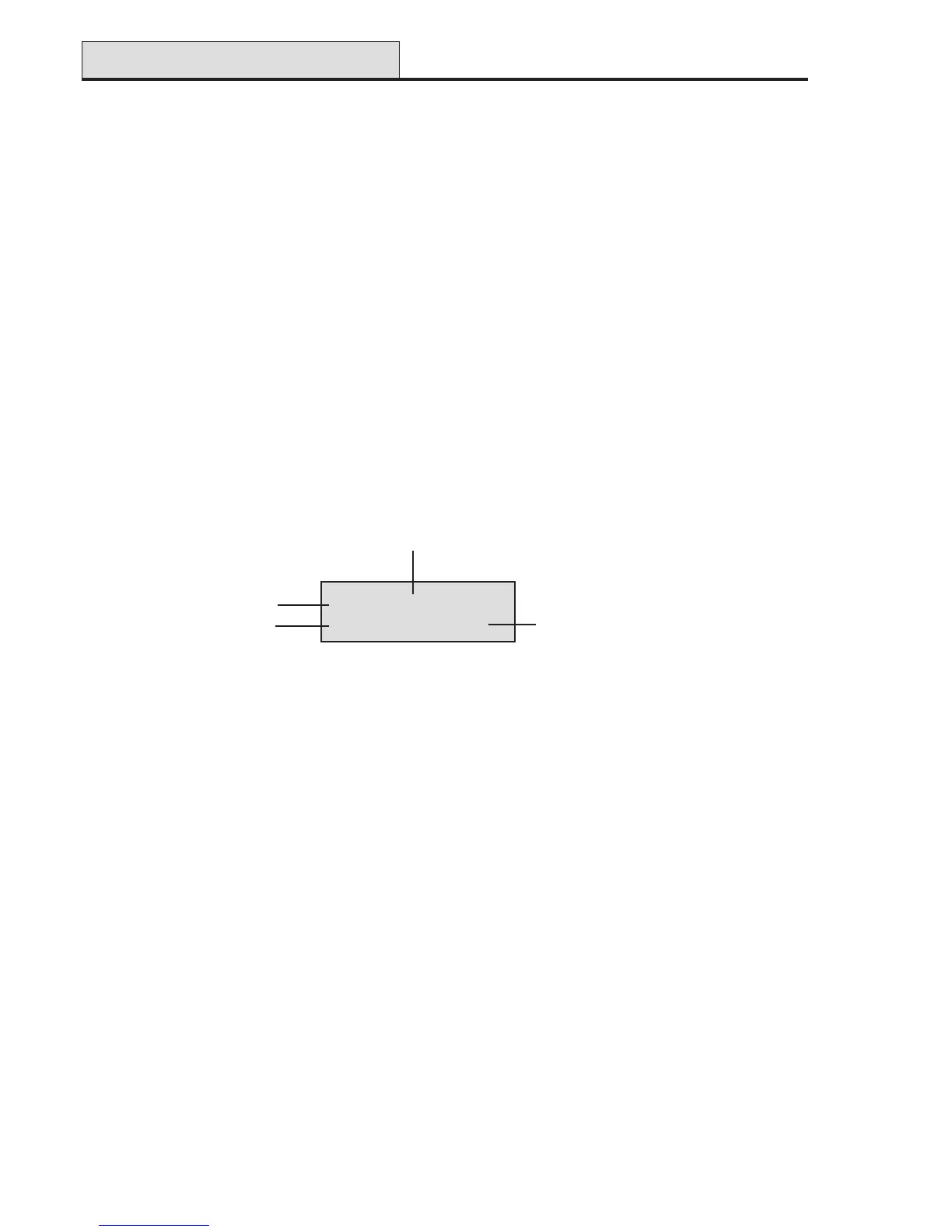

Channel

Polarity

Channel Output Function

Groups assigned

CH03 INTRUDERCH03 INTRUDER

CH03 INTRUDER

POS 1234POS 1234

POS 1234
