 Remove the window  page 6Ć15.
 Remove the center cover  page 6Ć16.
 Remove the left endcover  page 6Ć18.
 Remove the right endcover  page 6Ć19.
 If the maintenance you need to perform
requires you to remove the trailing cable
as well as the trailingĆcable guide, then
remove the trailing cable now  page 6Ć29.

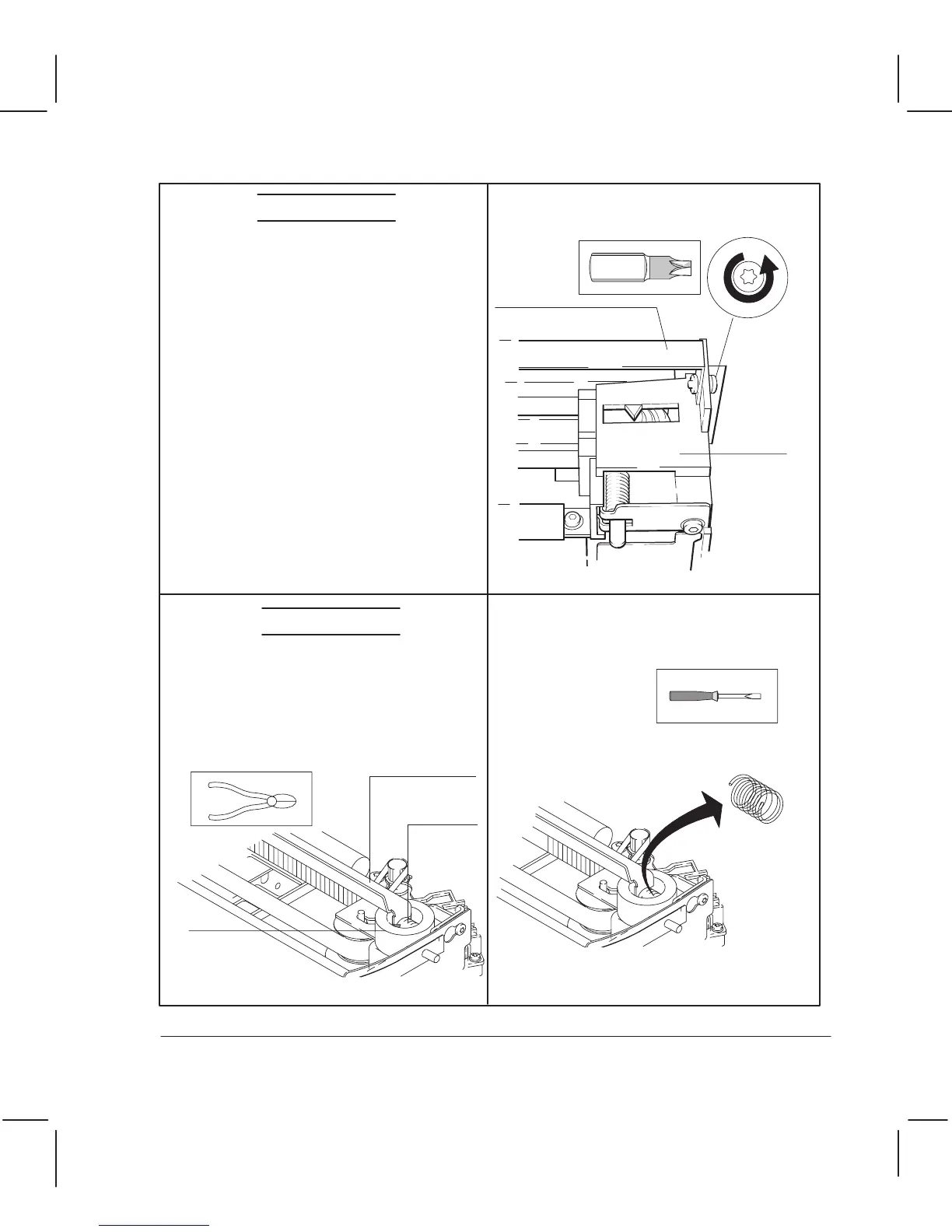

 Remove the screw that attaches the
trailingĆcable guide to the tensioner
housing.
Tensioner
housing
Trailing-cable guide
Torx-15
CAUTION
Exercise care to avoid damaging the ferrite
ring when carrying out the following
instructions.
 Cut the plastic tie, on the spring in the
ferrite ring, located where the trailingĆ
cable guide attaches to the YĆdrive
bracket.
Ferrite ring
Spring
and tie
Trailing-cable
guide
 Using a screwdriver, compress and
release the spring from between the
inside surface of the ferrite ring and the
trailingĆcable guide.
CAUTION
Handle the trailing cable and the
trailingĆcable guide with care.
     
6Ć43 Removal and ReplacementC3187Ć90000
   
