When replacing screws on any plastic part, always begin
by gently twisting the screw in anticlockwise with your hand, until the
screw finds the thread path and clicks, and then twisting the screw in
clockwise with your hand, before using a screwdriver. This is to avoid
crossĆthreading. Do not overĆtighten the screws.

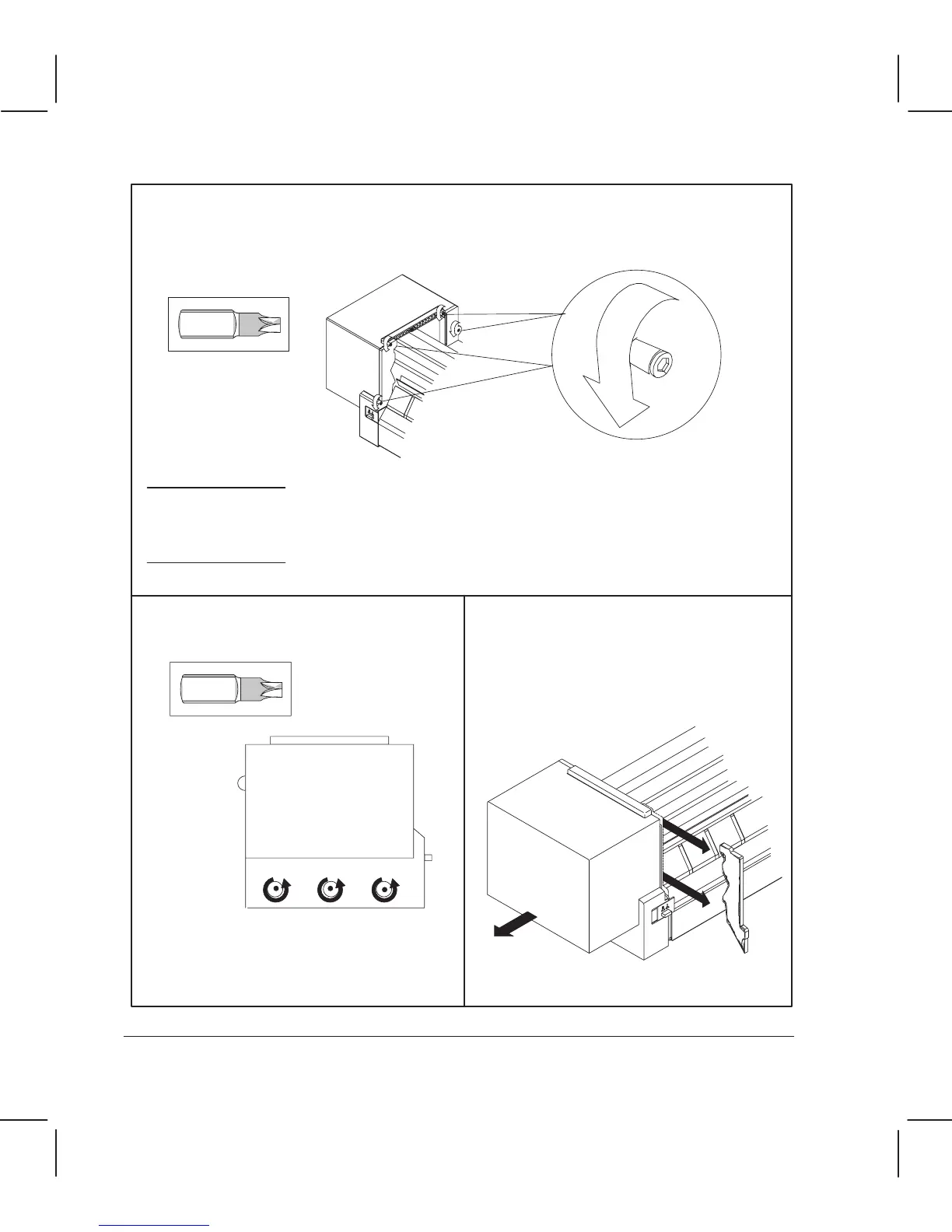

Remove the three screws from the left
side of the left endcover.
Remove the window page 6Ć15, and the center cover page 6Ć16.
Remove the two screws on the left front trim and the two screws on the left back trim.
CAUTION
Torx-15
Torx-15
If the plotter is mounted on legs,
the two leftĆhand screws that attach the
plotter to the legs.
Maintaining an even pressure on the top
and bottom of the endcover, pull it to the
left, away from the plotter.
6Ć18 Removal and Replacement
C3187Ć90000
To Next Page
