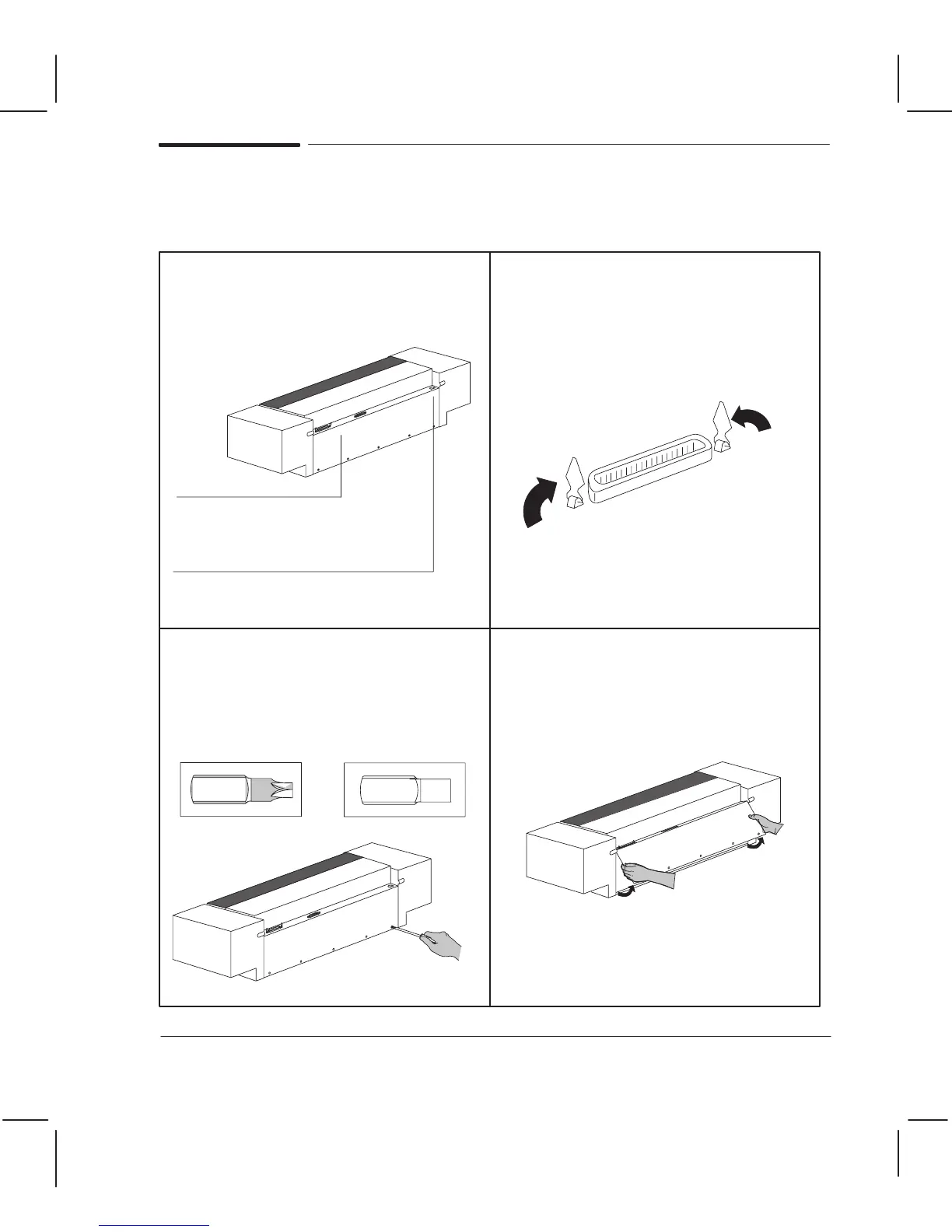

Ensure that the plotter is switched
and that the power cord and interface
cable(s) are not connected to it.
At the back of the plotter, ensure that
the two small wire clamps of the parallel
port are positioned vertically.
Power inlet: cord
not connected
Remove the screws that attach the
electronicsĆenclosure cover to the
electronics enclosure.
Gently lift open the electronicsĆenclosure
cover to an angle of 45
d
.
Torx-20
or
Flat
6Ć5 Removal and ReplacementC3187Ć90000
Repair Procedures
