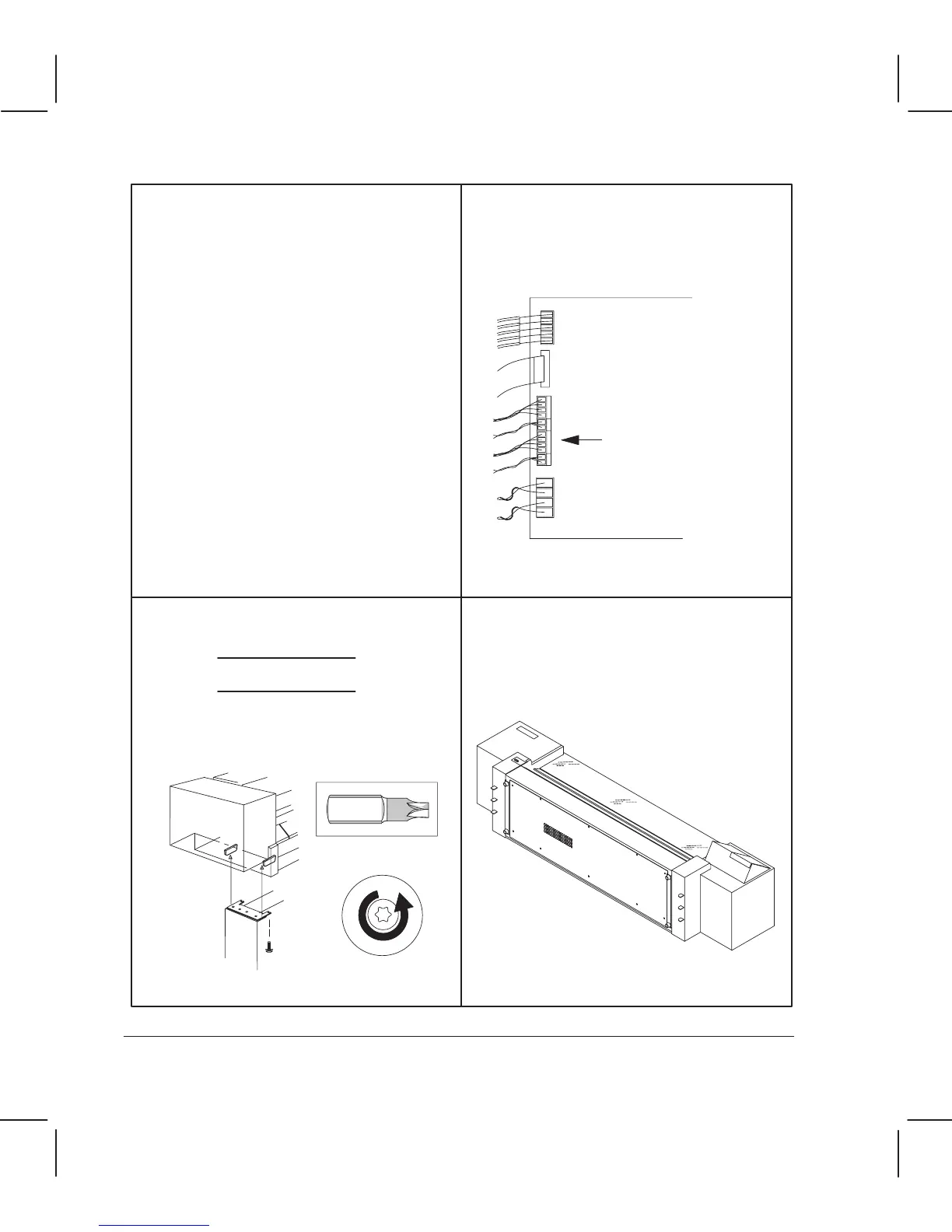

If the plotter is mounted on legs, remove
the four screws that attach it to the legs.
Remove the electronicsĆenclosure
cover page 6Ć5.
Remove the window page 6Ć15.
Media-sensor
connector
Remove the center cover page 6Ć16.
Remove the right endcover page 6Ć19.
Disconnect the mediaĆsensor cable
connector from the main PCA, and from
the holding clip and ferrite on the right
sideplate.
Torx 15
Place the plotter on a flat surface and
turn it on its back.
It requires two people to lift the plotter
"
The ferrite holder opens from the top
Reassembling: The cable goes through the
same ferrite as for the window sensor page 6Ć24
6Ć26 Removal and Replacement
C3187Ć90000
!
