5Ć26 Functional Overview
C3187Ć90000
The servo processor system consists of the following:
Servo processor (8052)
Processor support ASIC
FrontĆpanel interface
StepperĆmotor driver
CarriageĆprocessor interface
Various sensor inputs
EEROM
Motor
Position
Encoders
Front-Panel
Interface
Motor
Drivers
EEROM
To Main
Processor
System
To Carriage
Processor
System
Processor
Support
ASIC
Stepper-Motor
Driver
Sensors
8052
Servo
Processor

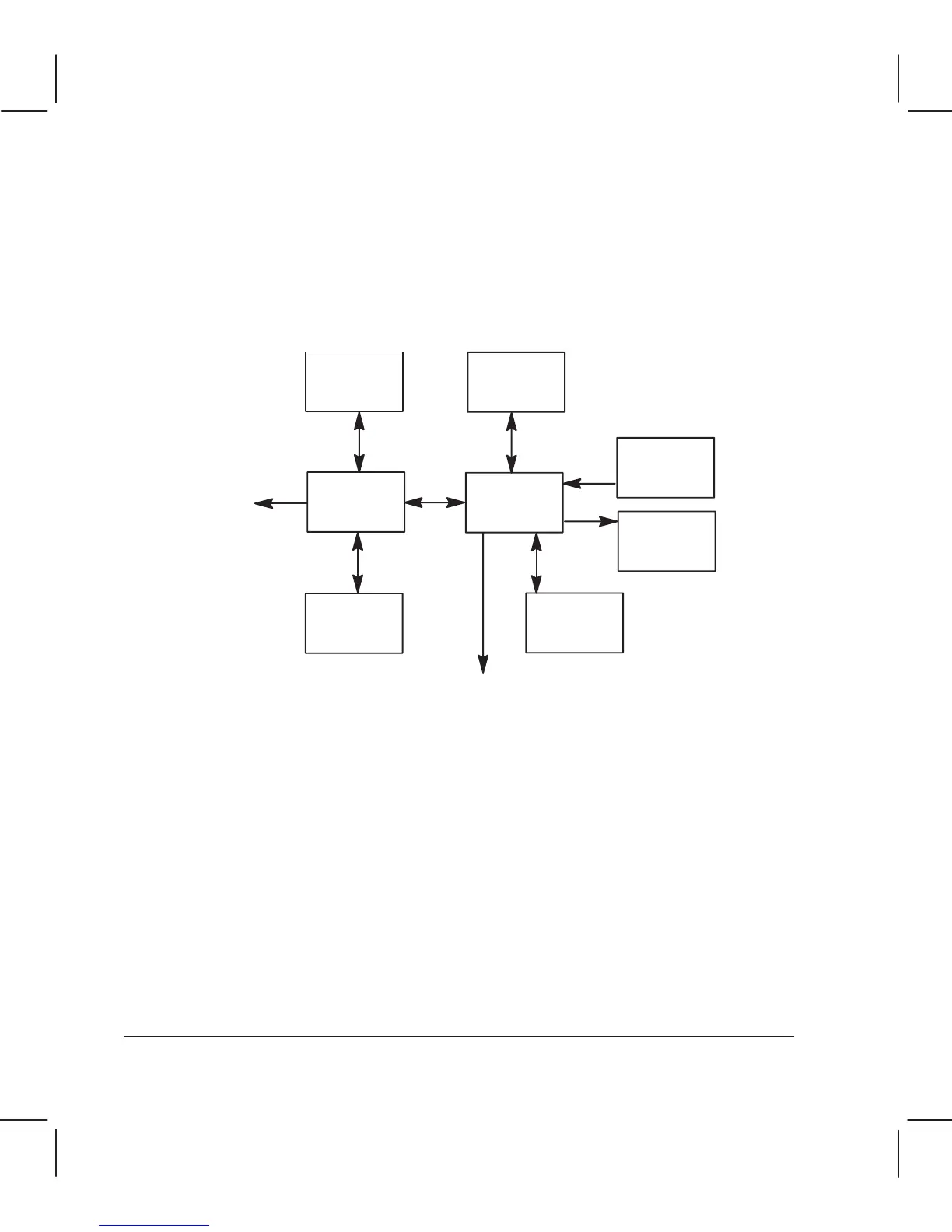

Servo Processor System
The servo processor controls all of the plotter actuators. Executing the commands issued by
the main processor, it reads the carriage and roller position from the processor support ASIC
and writes the needed control data to the PWM (Pulse Width Modulation) generators in that
ASIC. Through a serial link, the servo processor sends nozzleĆtiming data to, and receives
carriageĆsensor data from, the carriage processor.
The processor support ASIC provides support for the servo processor, and an interface
between the main processor and the servo processor.
