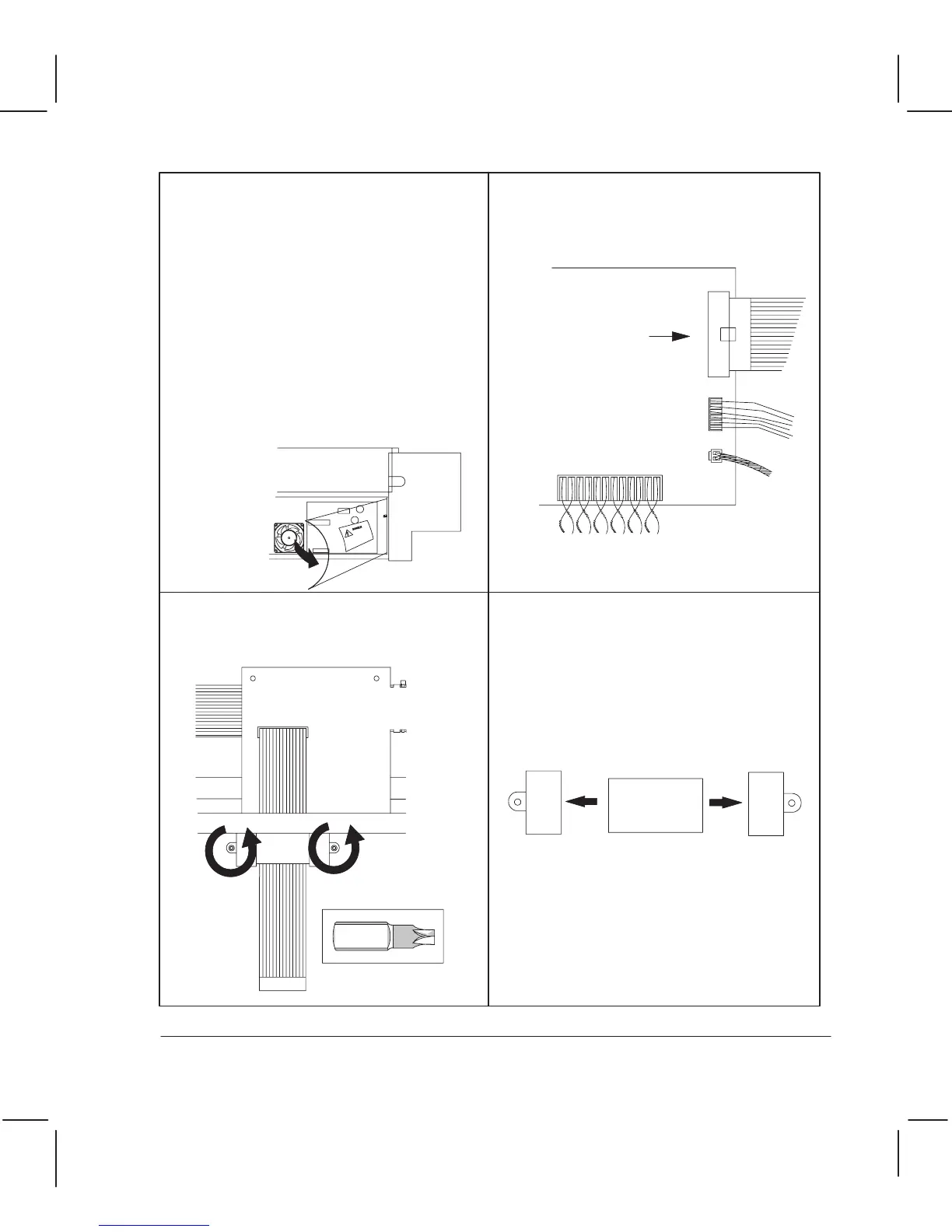

Remove the electronicsĆenclosure
cover page 6Ć5.
Remove the window page 6Ć15.
Remove the center cover page 6Ć16.
D/A1Ćsize plotters only: Open the
flexible, DANGER HIGH VOLTAGE,
insulation cover.
Disconnect the trailingĆcable connector
from the main PCA.
Remove the two screws that attach the
toroid to the rear of the electronics
enclosure.
Flex the cover to open it. Do not detach
the cover from the plotter.
Trailing-cable
connector
Pull off the two endcaps of the toroid and
remove the toroid from the trailing cable.
Torx-10
If you are installing a new trailing cable,
make sure the main PCA is compatible
with it. (Details chapter 9.)
6Ć29 Removal and ReplacementC3187Ć90000
