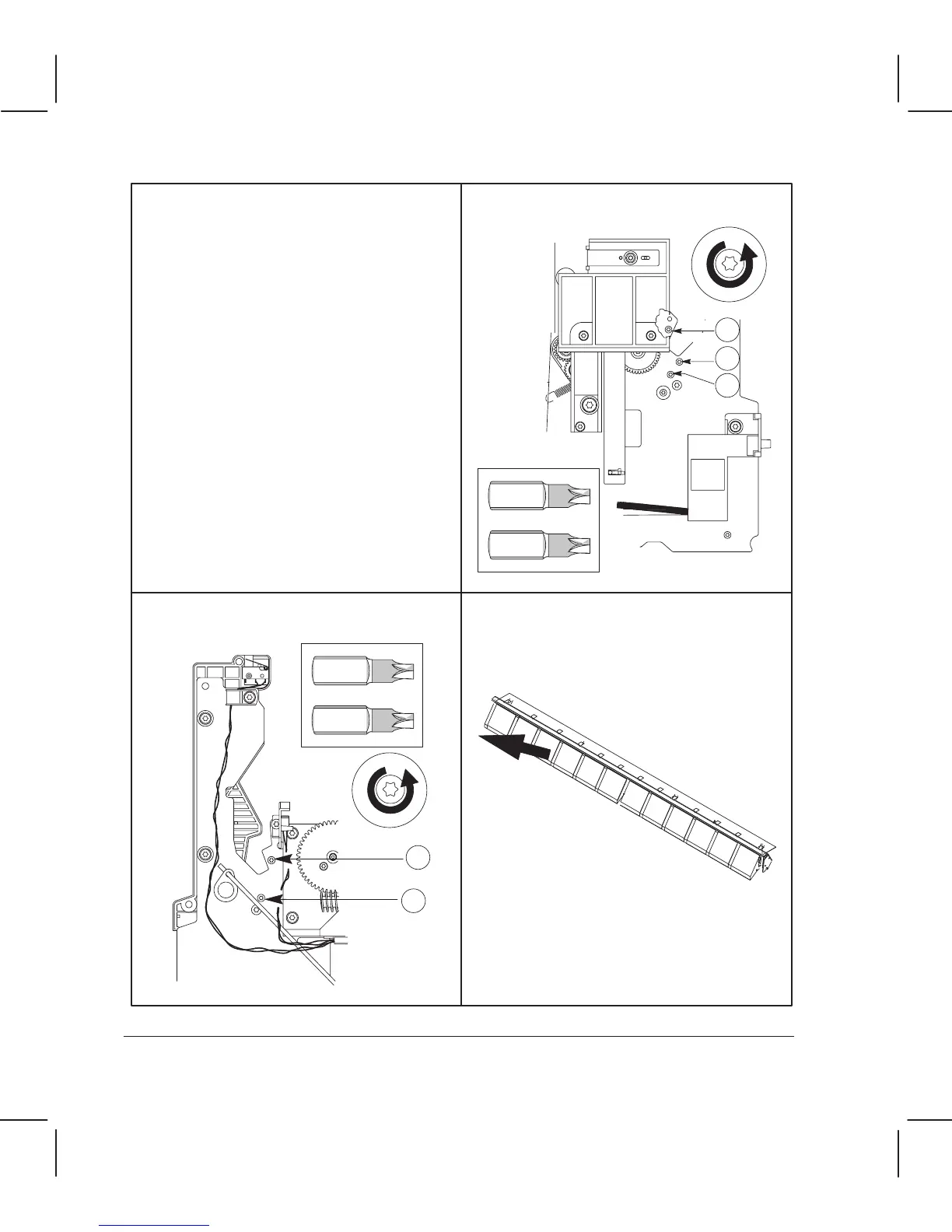

HP 200 - Removing the Overdrive Enclosure

 Remove the window  page 6Ć15.
 Remove the center cover  page 6Ć16.
 Remove the left endcover  page 6Ć18.
 Remove the right endcover  page 6Ć19.
 Remove the overdrive roller  page 6Ć60.
 Remove the three indicated screws from
the left sideplate.
1
2
3
Torx-15
Torx-20
LEFTĆHAND SIDE
 Remove the two indicated screws from
the right sideplate.
1
2
Torx-15
Torx-20
RIGHTĆHAND SIDE
 Lift the overdrive enclosure clear of the
plotter.
   
Overdrive enclosure
