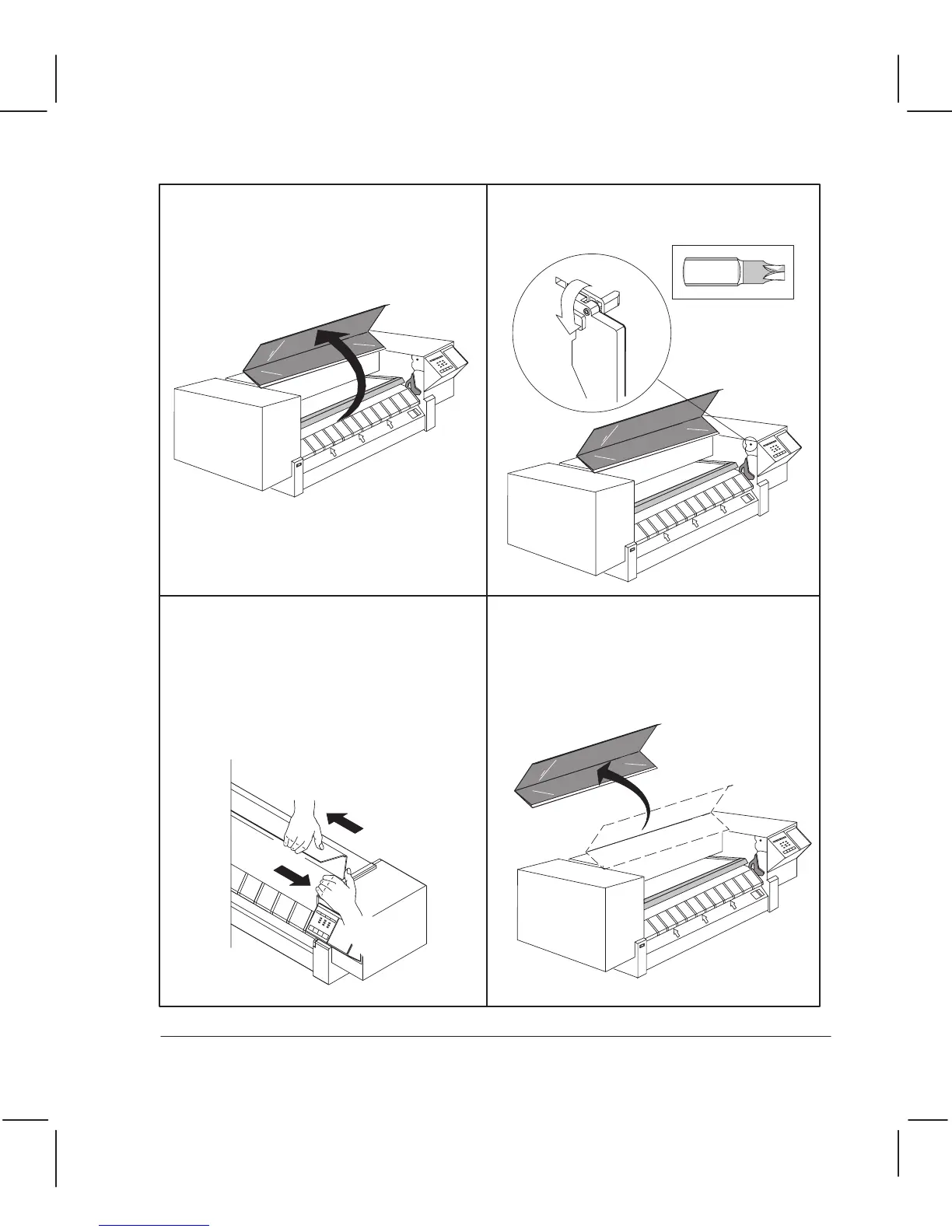

Open the window.
the top screw of the right front
trim (two full turns).
Carefully push the right endcover and
the window apart, far enough to lift the
window up so that the right pivot just
clears its socket.
Move the window to the right so that the
left pivot slides out of its socket, and lift
the window clear of the plotter.
Torx-15
6Ć15 Removal and ReplacementC3187Ć90000
