6Ć4 Removal and Replacement

C3187Ć90000

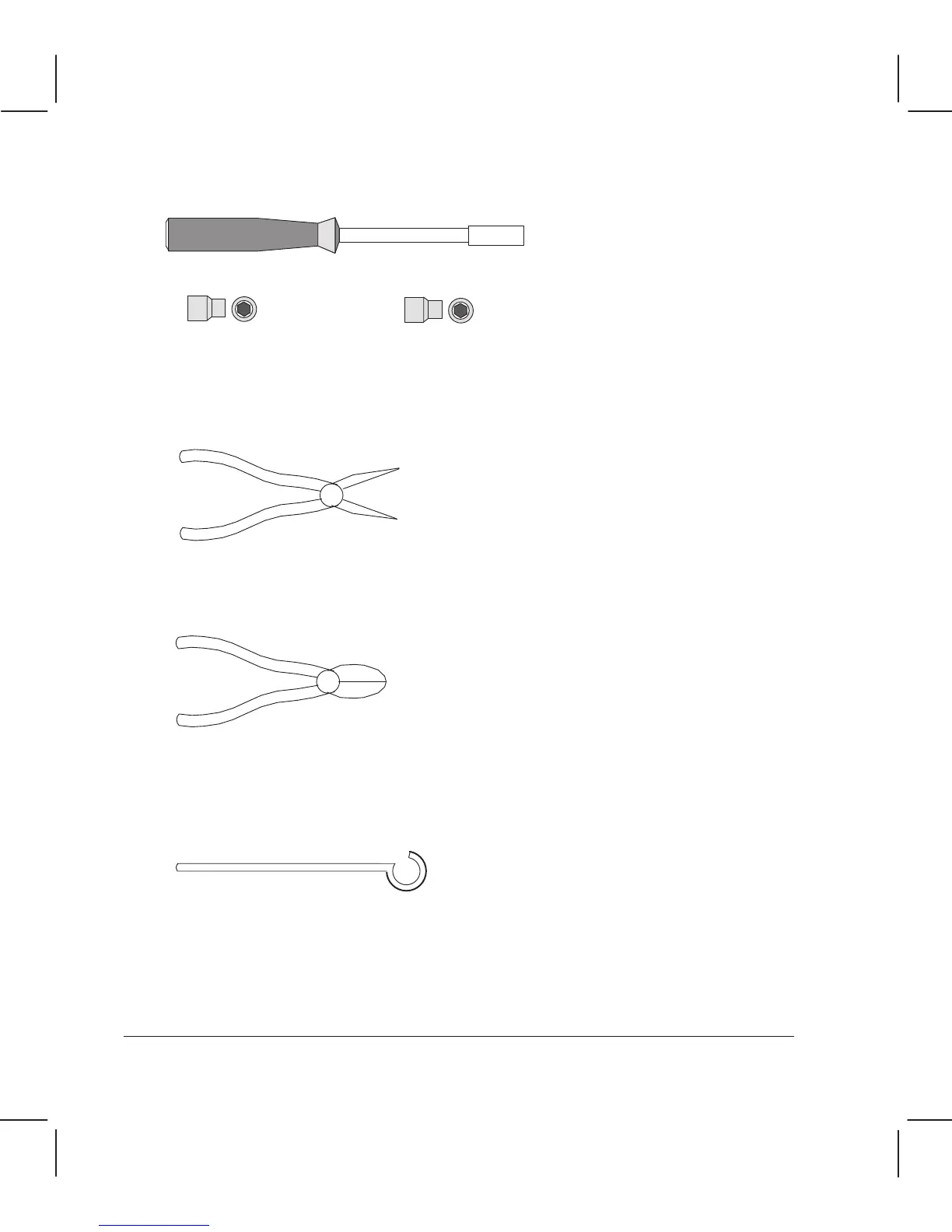

D Nut driver with indicated attachments:

3/16 inch

5.5 mm

and

D NeedleĆnose pliers

D Cutting pliers

D Spring hook

D Loopback connector (HP Part Number 07440Ć60302)

D 10X Magnifier
