HP 200 - Page 81

To Next Page

To Previous Page

Torx-15

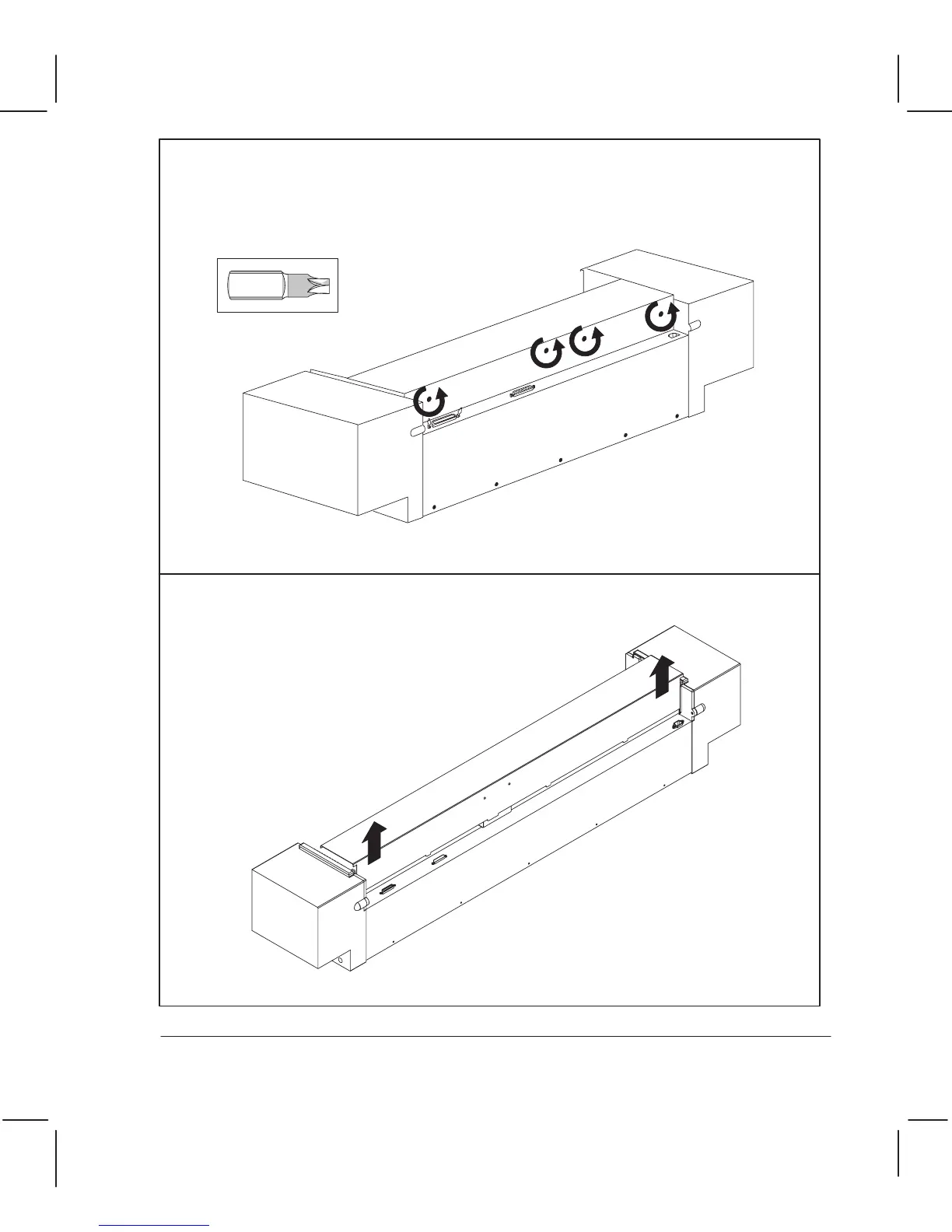

 Remove the screws from the back of the center cover.

         

 Slide the center cover vertically upwards, and lift it clear of the plotter.

6Ć17 Removal and ReplacementC3187Ć90000
