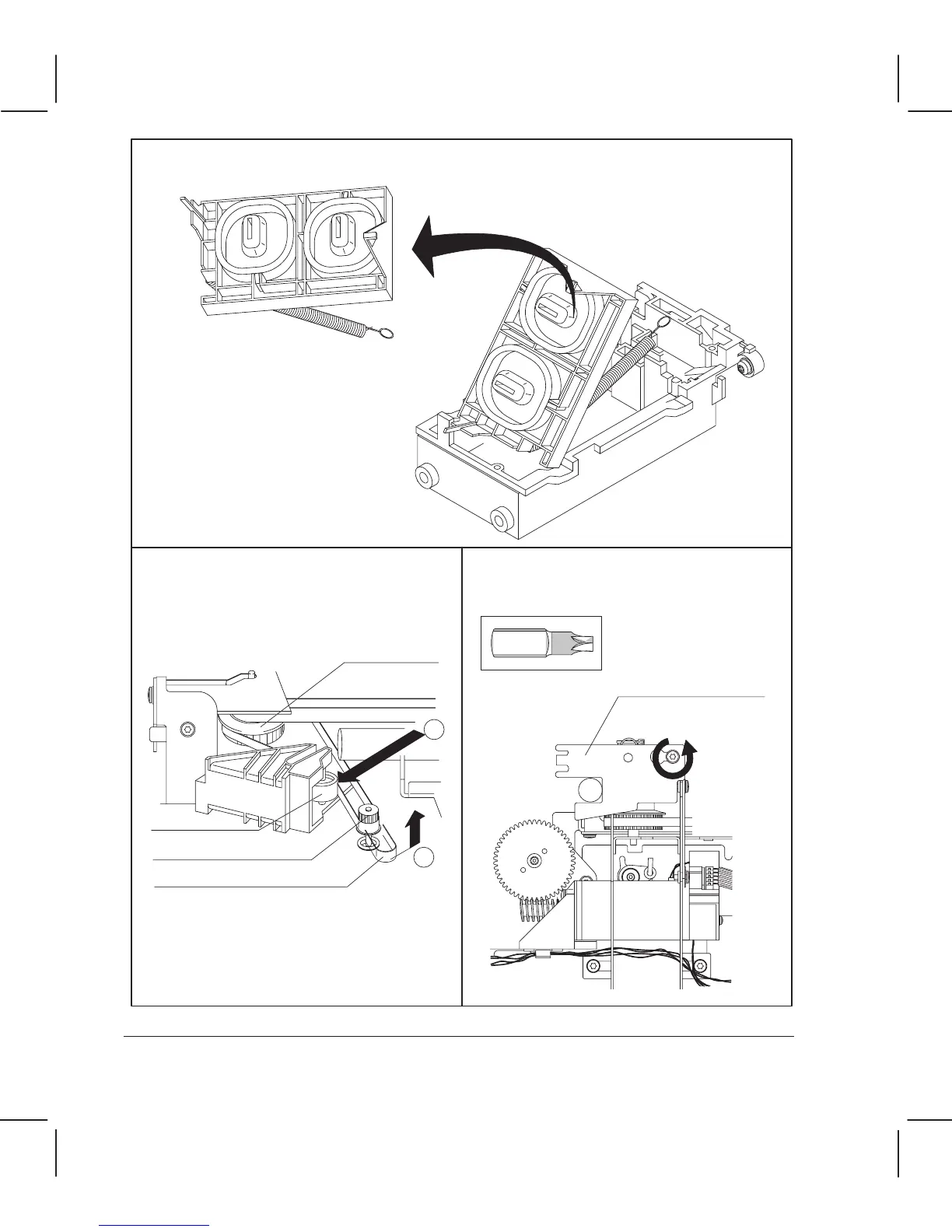

Lift the serviceĆstation sled clear of the serviceĆstation housing and the plotter.
1
2
Tensioner wheel
Motor gear
Double pulley
Move to the right side of the plotter.
Pressing the small drive belt against the
tensioner wheel to loosen the belt, slide
the belt off of the motor gear; then
carefully release your hand from the the
tensioner wheel.
Small drive belt
Remove the screw and washer that
attach the encoderĆstrip spring to the
spring bracket.
Encoder-strip spring
Torx-15
6Ć50 Removal and Replacement
