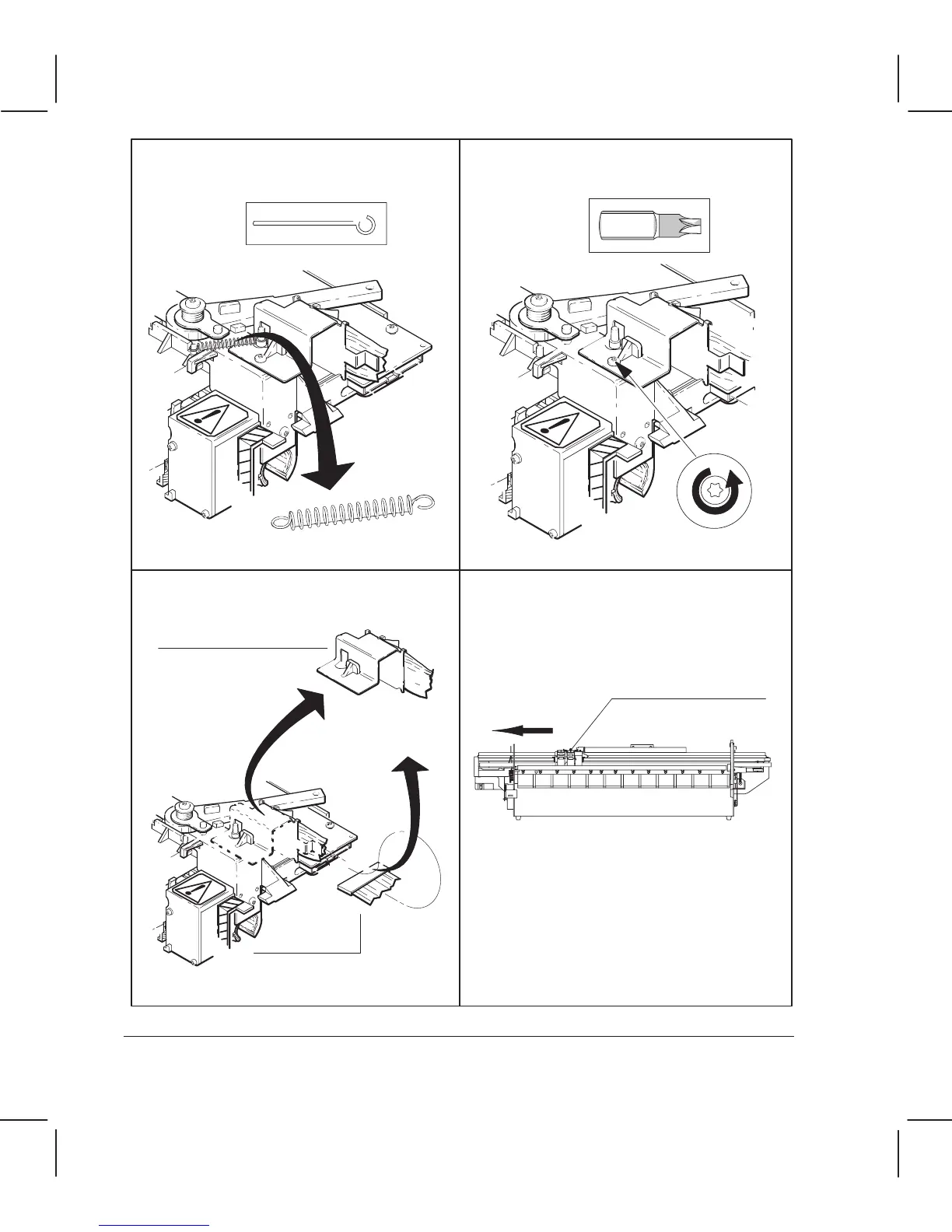

Remove the right spring from the
cartridgeĆcarriage assembly.
Remove the screw that attaches the
trailingĆcable bracket to the carriage
assembly.
Torx-10
Lift the trailingĆcable and bracket clear
of the carriage assembly.
Bracket
Trailing cable
Slide the cartridge carriage to the left
side of the plotter.
Cartridge carriage
6Ć52 Removal and Replacement
C3187Ć90000
To Next Page
