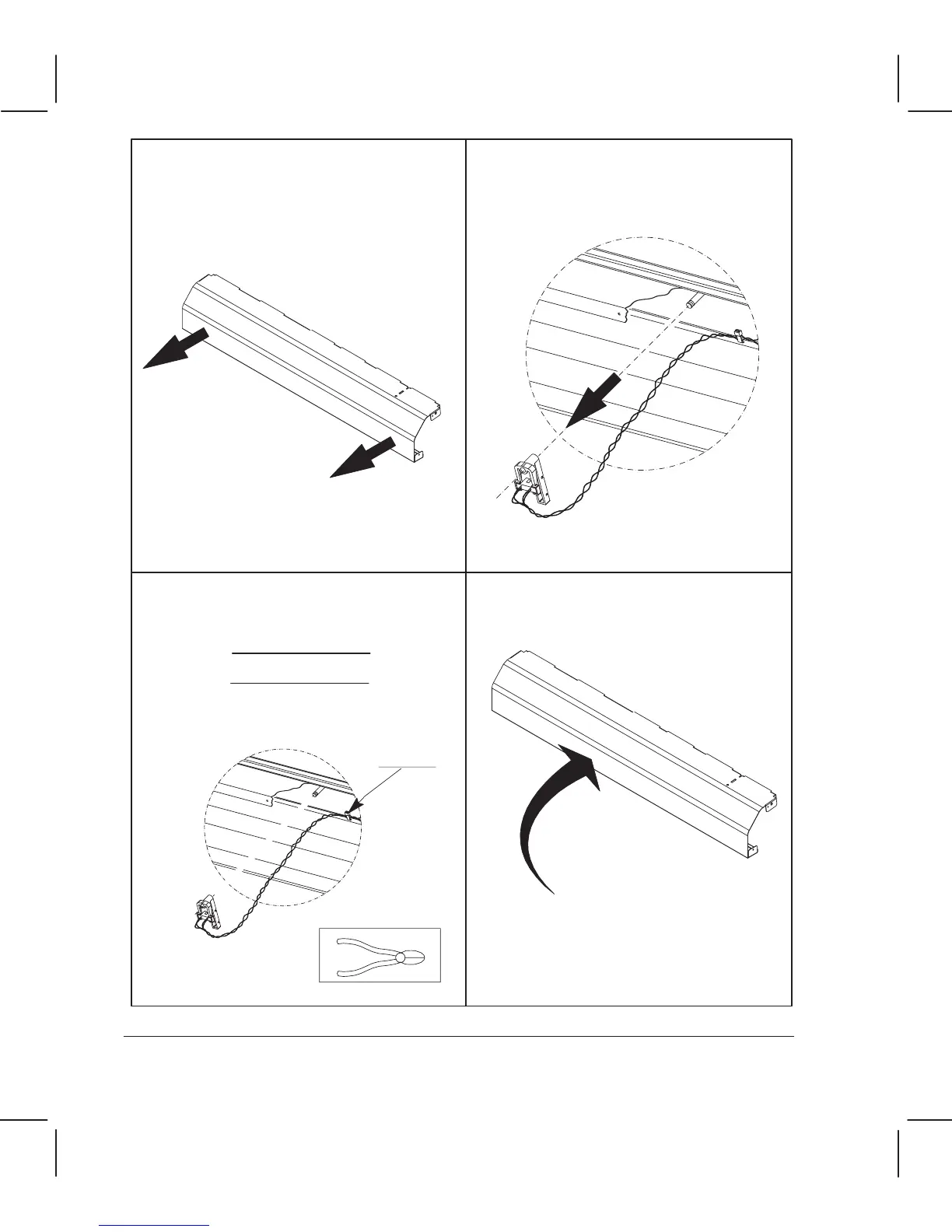

Pull the entry platen out from the plotter
in order to access the media sensor.
Detach the mediaĆsensor holder from
the underside of the entry platen by
pulling the holder straight out.
Cut the plastic tie that fastens the
mediaĆsensor cable to the underside of
the entry platen.
Lift the entry platen clear of the plotter.
Plastic tie
Take care not to cut the mediaĆsensor cable
itself.
CAUTION
6Ć66 Removal and Replacement
C3187Ć90000
