3Ć4 Installation and Configuration

C3187Ć90000

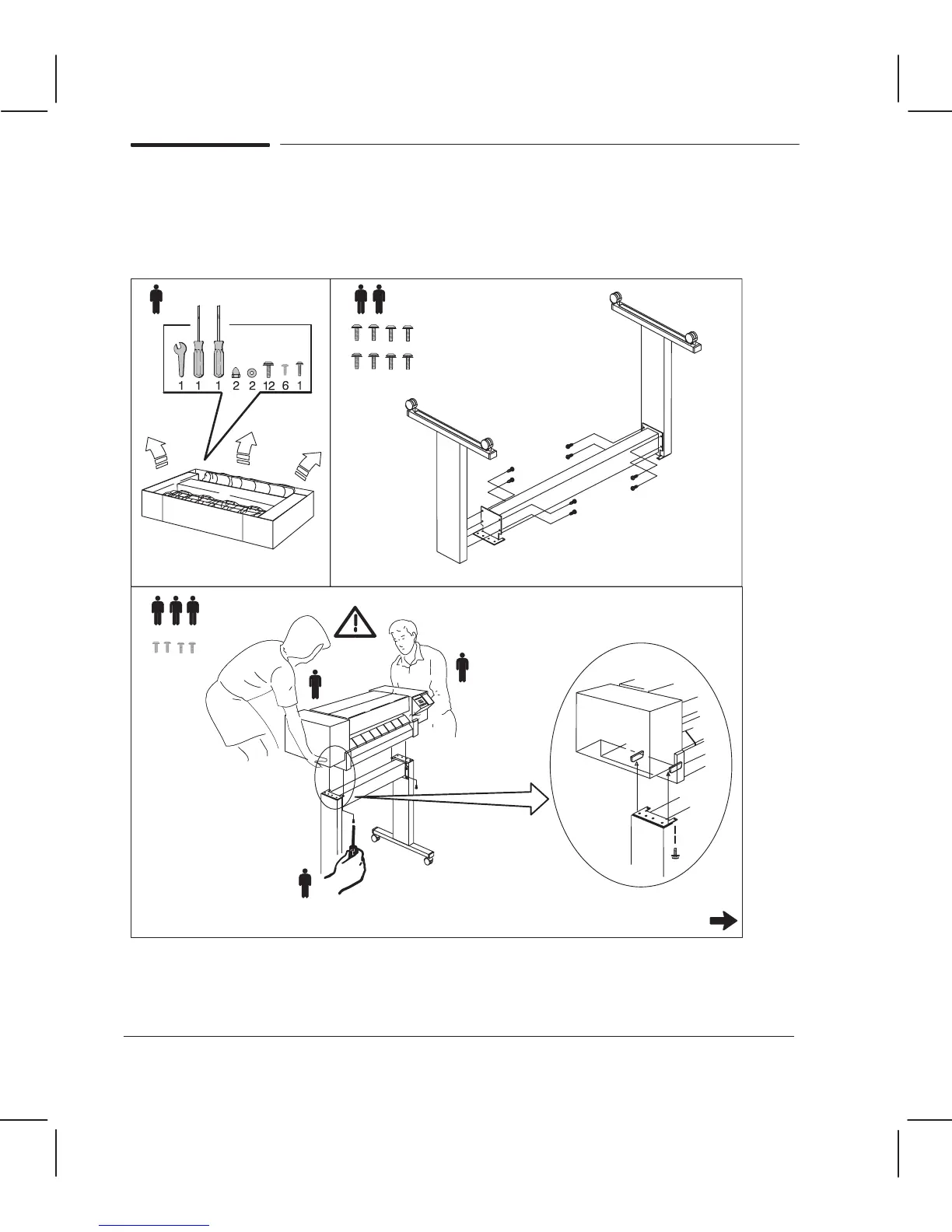

Assembling the Legs and Media Bin (Optional)

If the user has purchased the optional legs and media bin for the plotter, assemble them

following the series of illustrations below:

1 2

45 kg

(99 lb)
