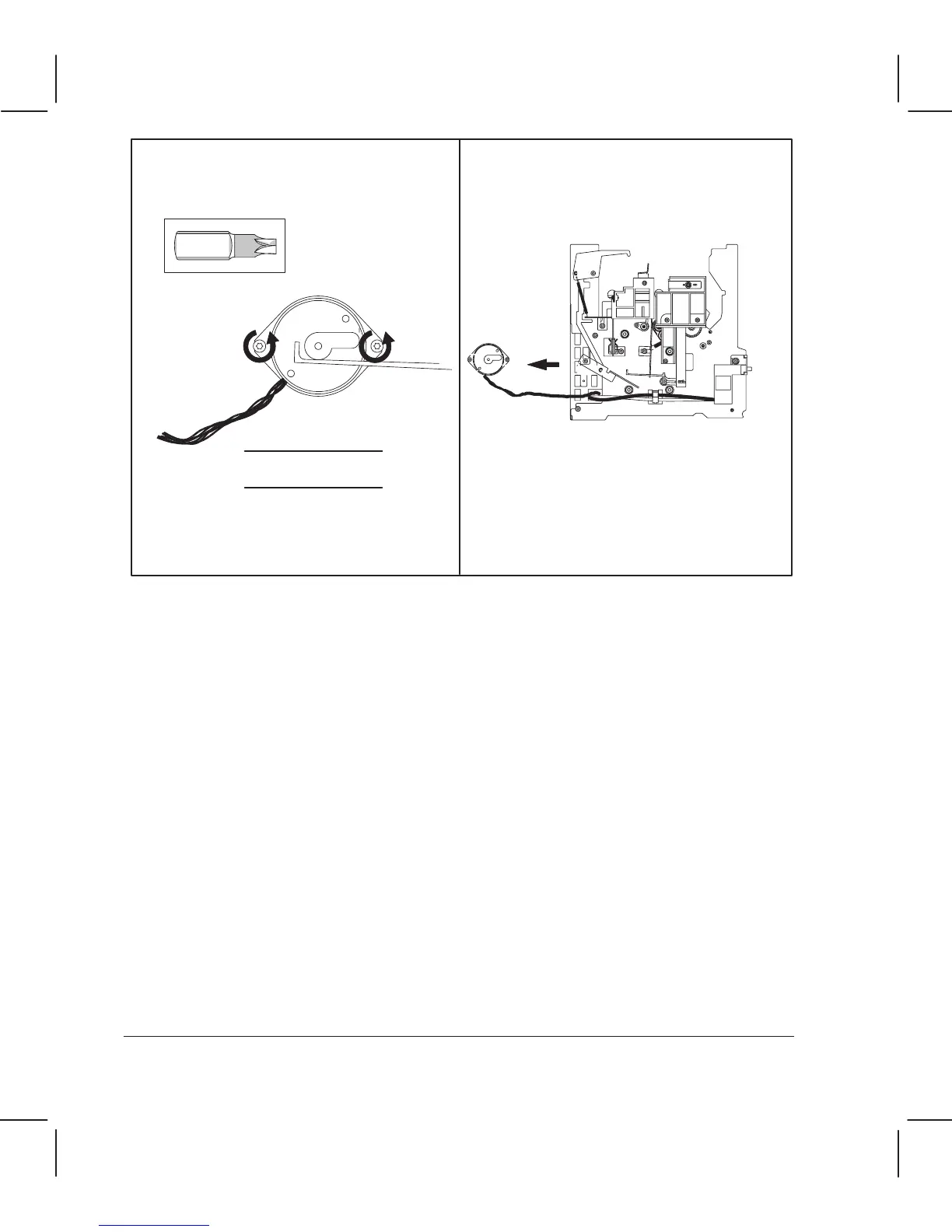

Loosen the right screw and remove the
left screw that attaches the stepper
motor to the left sideplate.
Loosen
Remove
CAUTION
Do not crossĆthread or
overĆtighten the screws.
Move the stepper motor toward the rear
of the plotter.
Pull the stepperĆmotor cable gently out
from the electronics enclosure, through
the hole in the left side of the electronics
enclosure, and lift it and the stepper
motor clear of the plotter.
Torx-10
6Ć22 Removal and Replacement
C3187Ć90000
