HP 5130 EI series User Manual

35

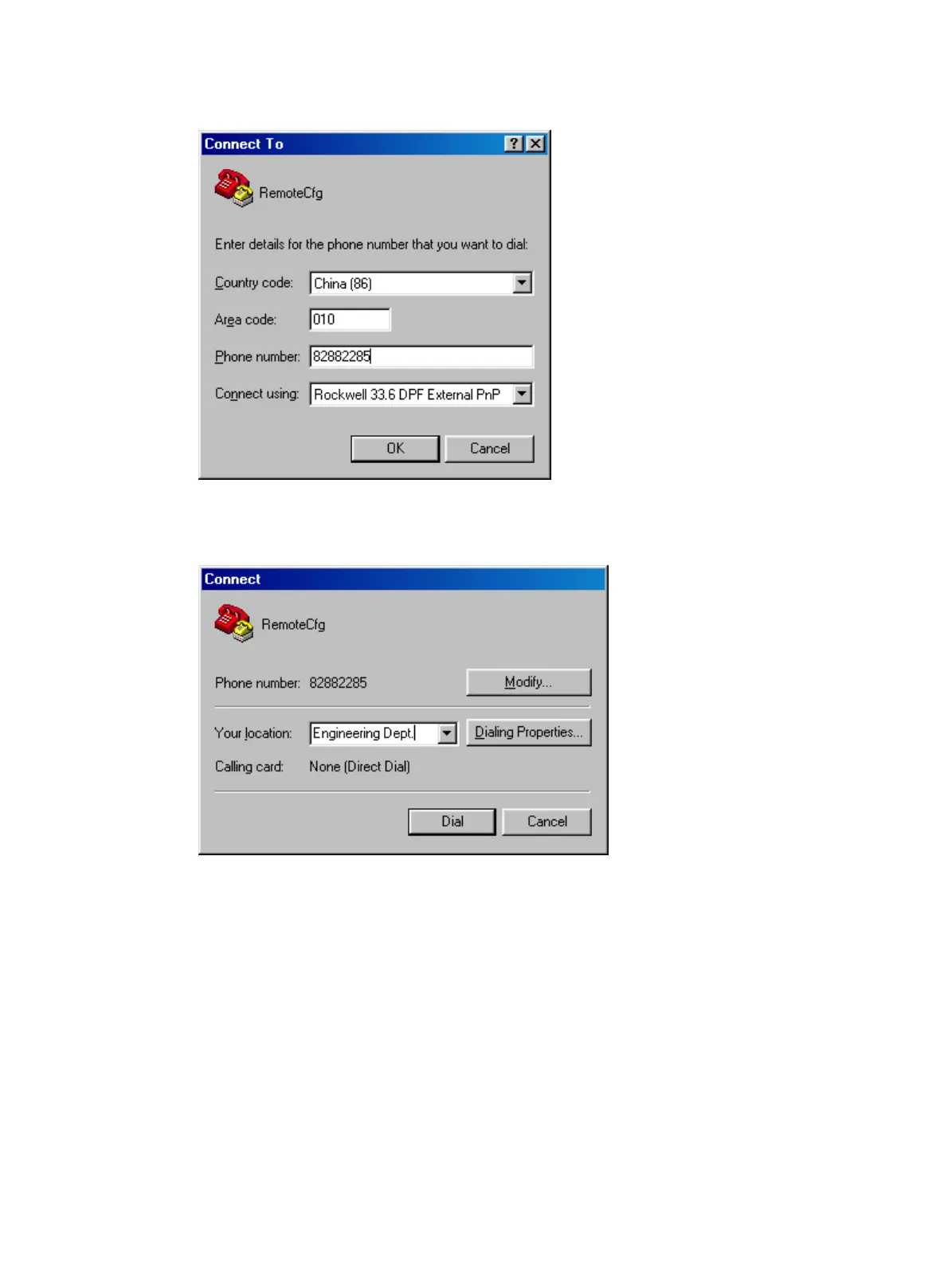

Figure 16 Configuring the dialing parameters
7. Dial the telephone number to establish a connection to the device.
Figure 17 Dialing the number
8. After you hear the dial tone, press Enter as prompted.
If the authentication mode is none, the prompt <HP> appears. If the authentication mode is
password or scheme, you must enter the correct authentication information as prompted.

HP 5130 EI series Specifications

General

Layer	Layer 3
VLANs	4094
Multicast Protocols	IGMP, PIM
Operating Temperature	0°C to 45°C
Model	HP 5130 EI
Ports	24 or 48 10/100/1000 ports
Uplink Ports	4 x 1/10G SFP+
Stacking	Up to 9 switches
Power over Ethernet (PoE)	PoE+ (IEEE 802.3at) on PoE+ models (JG936A, JG937A)
Management	Web, CLI, SNMP
MAC Address Table Size	32, 000 entries
Routing Protocols	OSPF, RIP, BGP, static routing
Operating Humidity	10% to 90% (non-condensing)
