General System Configuration
Configuring Ethernet Settings

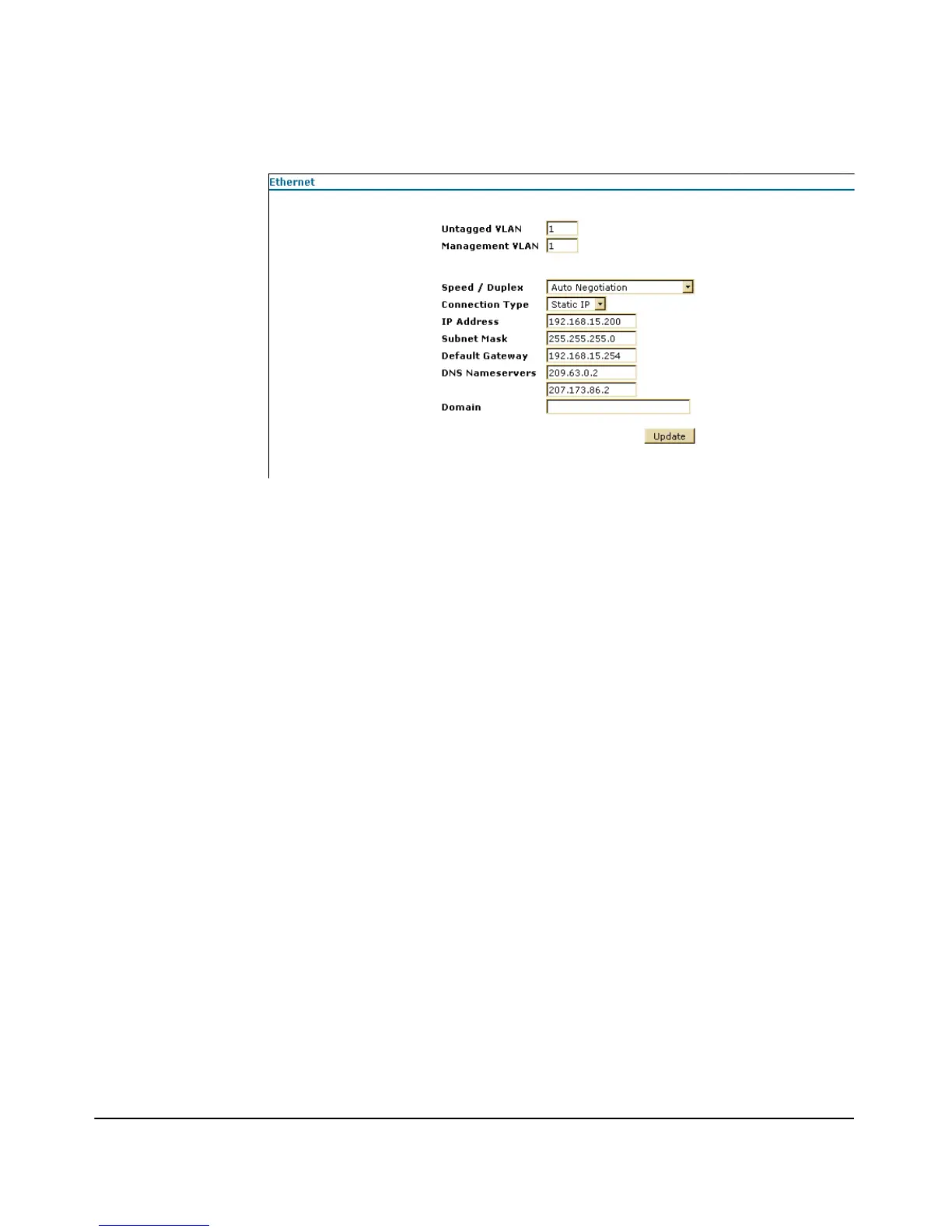

Figure 5-4. Configuring IP Settings
To Enable the DHCP Client i:
1. Select Network Setup > Ethernet.
2. To configure the VLAN (untagged), enter a value in the VLAN field.
3. To set the mode and speed of data transmission, select Speed/Duplex in
the drop-down.
4. To set a dynamic connection, select DHCP in the Connection Type drop-
down.
5. Select [Update] to save the DHCP settings.
To Configure IP Settings Manually:
1. Select Network Setup > Ethernet.
2. To configure the VLAN (untagged), enter a value in the VLAN field.
3. To set the mode and speed of data transmission, select Speed/Duplex in
the drop-down.
4. To set a manual connection, select Static IP in the Connection Type drop-
down.
5. If you chose Static IP, the IP address and subnet mask auto populates with
the system defaults. You can manually enter a new IP address and subnet
mask in the Static IP Address and Subnet Mask fields. These are required
fields.
