HP 530 User Manual

7-23
Wireless Security Configuration
Establishing Security

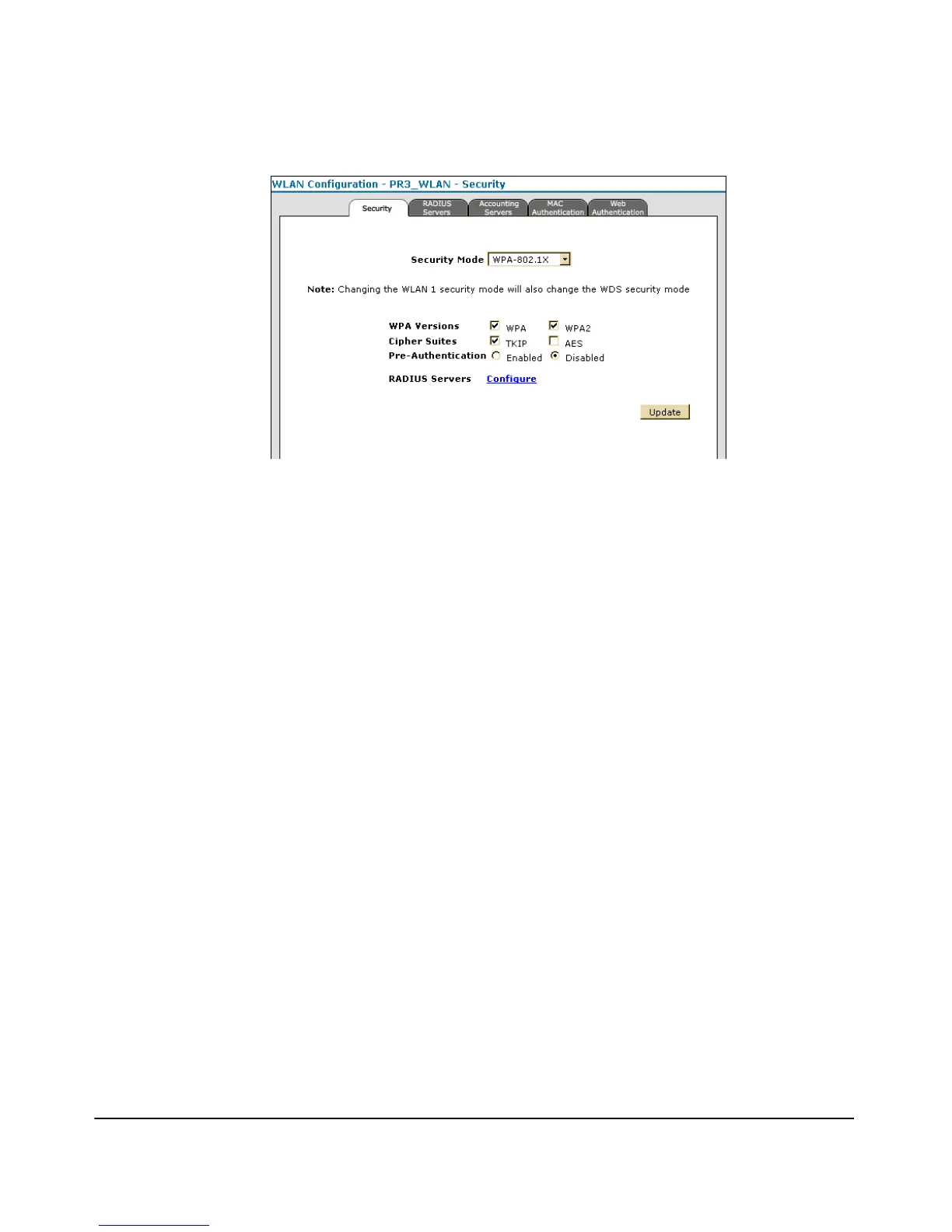

Figure 7-4. Configuring WPA-802.1X
To Configure WPA-802.1X:
1. Select Network Setup > WLANs.
2. Click [Edit] after the selected WLAN. The WLAN Configuration Security
pop-up window opens, displaying the Security tab.
3. Select WPA-802.1X from the Security Mode drop-down.
4. Select WPA, WPA2, or Both for WPA support, as required.
5. Select Enable pre-authentication if you selected WPA2 or Both for the
WPA version.
6. Select TPIK, AES (recommended if you selected WPA2), or Both to enable
the type of Cipher encryption.
7. Select RADIUS Servers to configure the RADIUS server to enhance secu-
rity.
8. Select [Update] to set the WPA-802.1X security parameters.

HP 530 Specifications

General

Graphics	Intel GMA 950
Processor	Intel Core Duo T2050
RAM	512 MB, upgradable to 2 GB
Storage	80 GB HDD
Display	15.4-inch WXGA (1280 x 800)
Operating System	Windows XP Professional
Battery	6-cell Lithium-Ion
Optical Drive	DVD+/-RW
Ports	3 x USB 2.0, 1 x VGA, 1 x RJ-45, 1 x RJ-11, 1 x Headphone, 1 x Microphone
Wireless	802.11a/b/g
