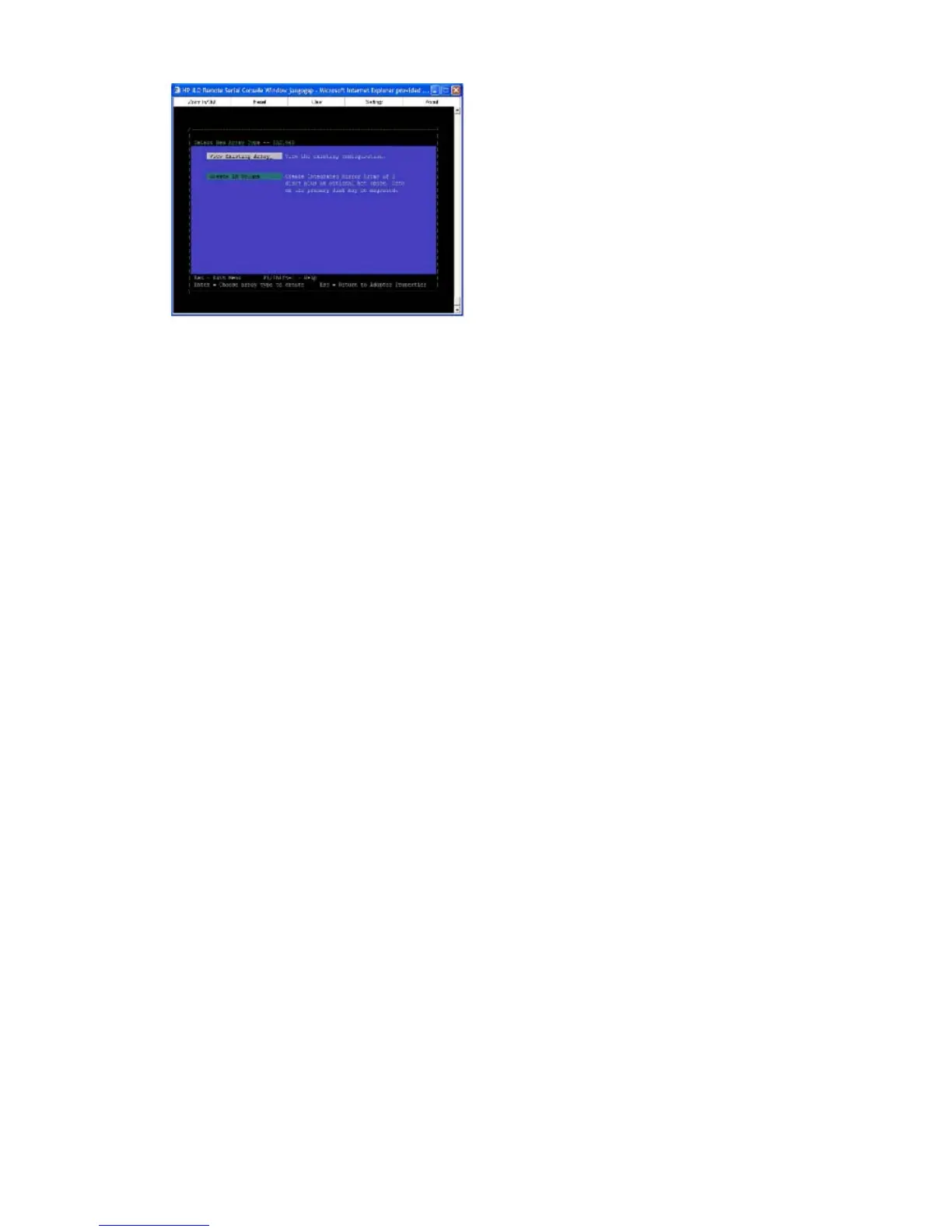

Figure 30 Select New Array Type Screen
Select New Array Type Screen
The Select New Array Type screen enables you to view an existing array or create an Integrated
Mirror array of two disks, plus an optional hot spare.
• To go to the Create New Array screen, select Create IM Volume.
• To go to the View Array screen, select View an Existing Array.
Create New Array Screen
The Create New Array screen enables you to create an array. To access the Create New Array
screen, press Enter on the Create IM Volume field from the Select New Array Type screen.
To create an array:
1. Select one of the following options:
To migrate to an IM array, press M. This keeps the existing data, and the disk is synchronized.
To delete all data on all disks in the array, press D. This overwrites data when creating a new
IM array, and the disk is not synchronized.
2. To create the array after the volume is configured, press C. The server prompts you to save
changes, which creates the array. During the creation process, the utility pauses. You are then
taken back to the Adapter Properties screen.
The following are descriptions for the Create New Array screen.
Array Type Indicates the type of array being created.
Array Size Indicates the size of the array in Megabytes.
Bay Displays the bay where the devices are located.
Device Identifier Displays the device identifier.
RAID Disk Specifies the devices (disks) that make up an IM array. If RAID Disk
is Yes, the device is part of an IM array. If RAID Disk is No, the
device is not part of an IM array. This field is grayed out under the
following conditions:
• The device does not meet the minimum requirements for use in an
IM array.
• The device is not large enough to mirror data on the primary drive.
• This disk has been selected as the hot spare for the IM array.
Hot Spr Specifies whether a device is the hot spare for an IM array. If Hot
Spr is Yes the device is used as a hot spare for the IM array. If Hot
Spr is No, the device is not used as a hot spare for the IM array. Only
one hot spare per IM array is permitted. A hot spare is not required
Configuring the HP 2 Internal Port SAS Host Bus Adapter 57
To Next Page
