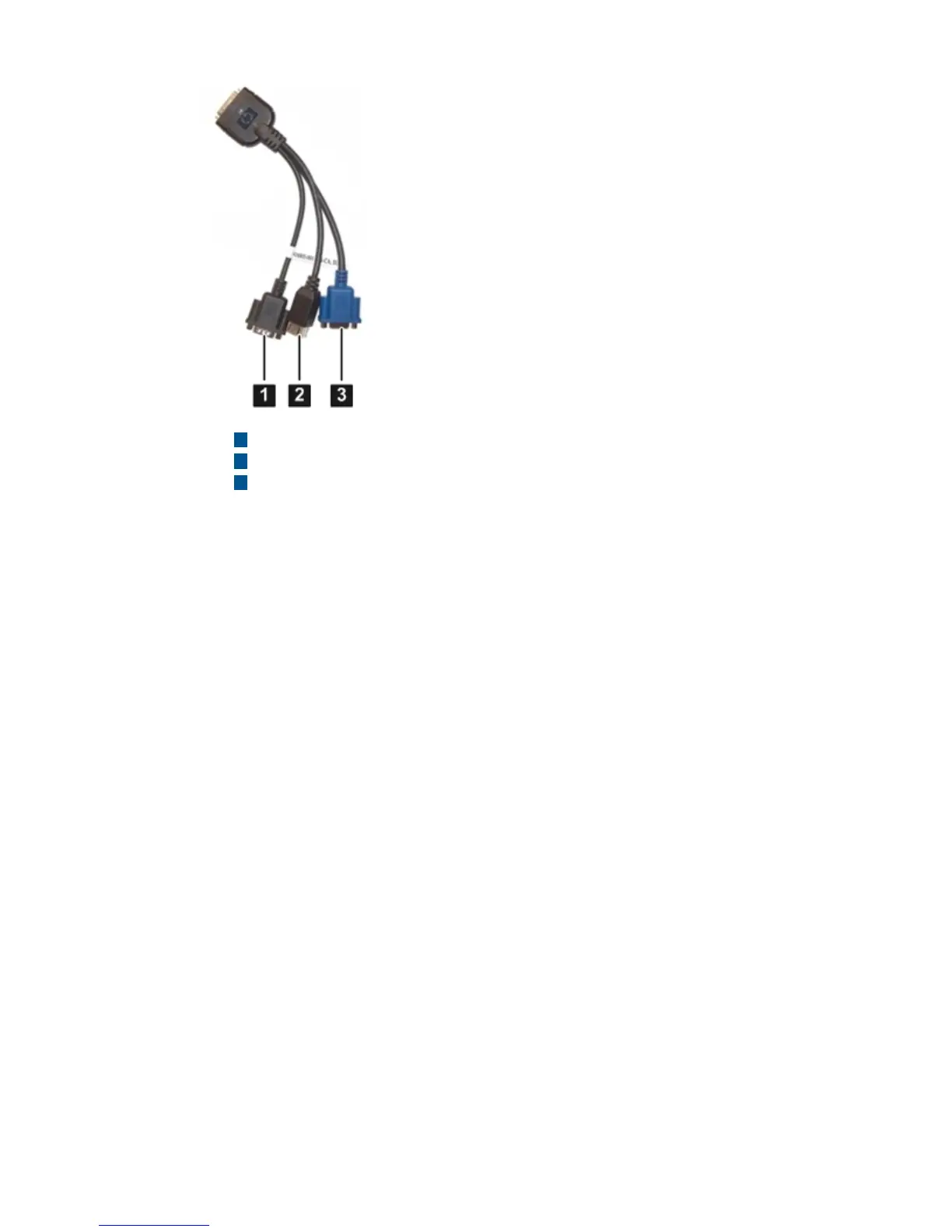

Figure 32 Ports on the SUV Cable
1
Serial port
2
USB ports (2)
3
Video port
3. Reset (or reconnect) the server blade, and reboot to EFI.
4. Turn on the external USB DVD device.
Installing the OS from the External USB DVD Device
To install the OS from an external USB DVD device:
1. Insert the CD with the OS into the external USB DVD drive.
2. Use the EFI Boot Manager Menu and boot to the drive that contains the CD with the OS.
3. From the boot menu, select EFI Shell (Built In).
4. At the EFI Shell prompt, specify the device name (for example, fs1:) for the DVD and enter
the EFI install command, as in the following example.
If the device is not automatically selected, select the device name for the DVD and run install.
For example, from the EFI Shell prompt you see something similar to this:
Shell> fs1:
fs1:\> install
If you do not see the USB DVD drive, use the EFI Map command to list all the device names
from the EFI Shell prompt. The list of devices displays automatically, and the install process
selects the device for you. The Map command displays the following (this may not match
completely:
Seg Bus Dev Fnc Vendor Device Slot
# # # # ID ID # Path
--- --- --- --- ------ ------ --- -----------
00 00 02 01 0x103C 0x1048 XX Acpi(HWP0002,0)/Pci(2|1)# MP - rope 0
00 00 01 00 0x1033 0x0035 XX Acpi(HWP0002,0)/Pci(1|0)# USB - rope 0
00 00 01 01 0x1033 0x0035 XX Acpi(HWP0002,0)/Pci(1|1)# USB - rope 0
00 00 01 02 0x1033 0x00E0 XX Acpi(HWP0002,0)/Pci(1|2)# USB - rope 0
00 00 02 00 0x103C 0x1290 XX Acpi(HWP0002,0)/Pci(2|0)# MP - rope 0
00 20 01 00 0x1000 0x0030 XX Acpi(HWP0002,100)/Pci(1| # SCSI- rope 1
00 40 01 00 0x1077 0x2312 XX Acpi(HWP0002,200)/Pci(1|0) # FC - rope 2
00 40 01 01 0x1077 0x2312 XX Acpi(HWP0002,200)/Pci(1|1) # FC - rope 2
00 80 01 00 0x14E4 0x1648 XX Acpi(HWP0002,400)/Pci(1|0) # LAN - rope 4
00 80 01 01 0x14E4 0x1648 XX Acpi(HWP0002,400)/Pci(1|1) # LAN - rope 4
00 80 03 00 0x14E4 0x1648 XX Acpi(HWP0002,400)/Pci(3|0) # LAN - rope 4
00 80 03 01 0x14E4 0x1648 XX Acpi(HWP0002,400)/Pci(3|1) # LAN - rope 4
The USB DVD device is the one shown in bold.
Installing the Operating System onto the Server Blade 67
