5. Remove the SAS backplane by lifting it straight out of the server by the backplane handle.

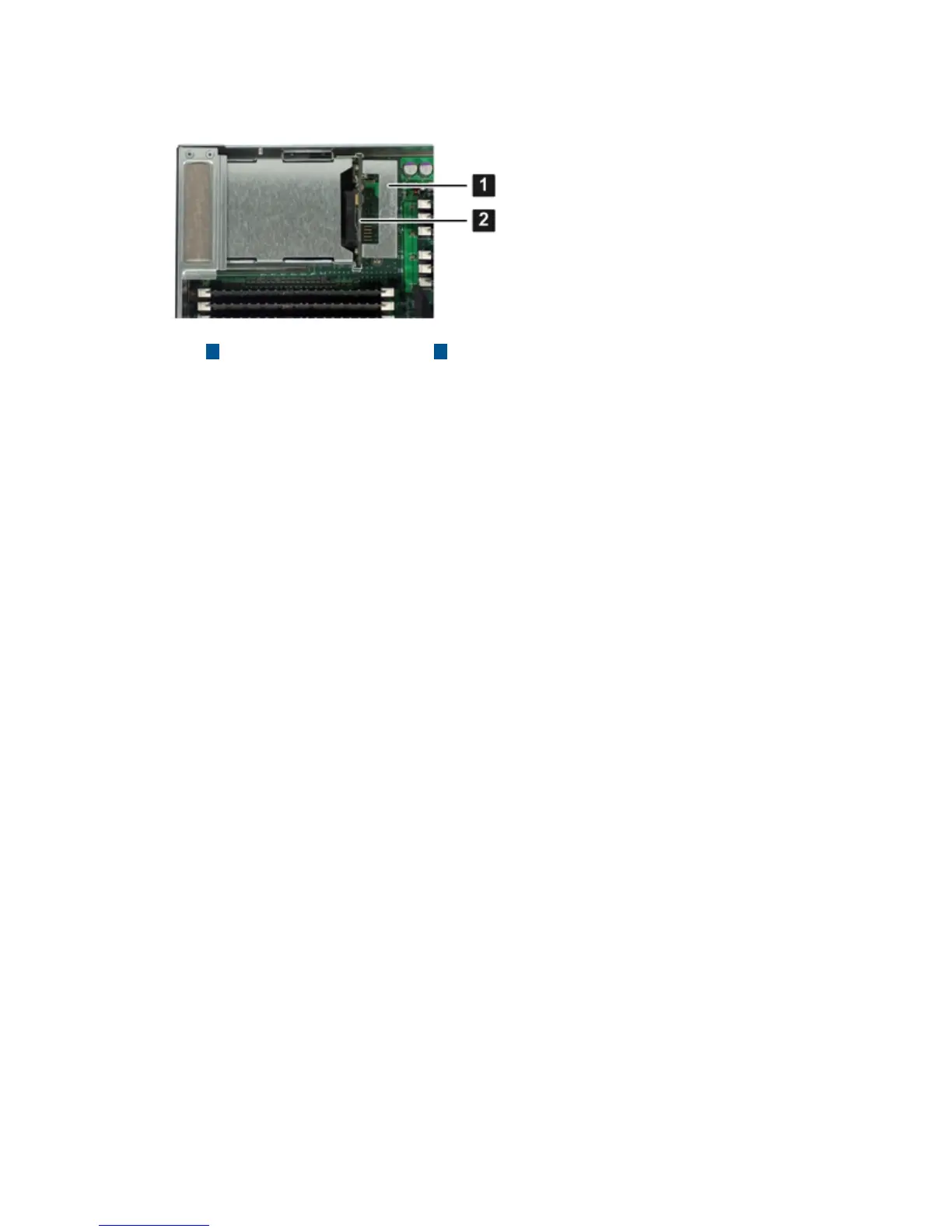

See Figure 48.
Figure 48 Removing the SAS Backplane
21
SAS backplaneSAS backplane
handle
Installing the SAS Backplane
To install the SAS backplane into the server blade after a SAS backplane failure:
1. Slide the SAS backplane into the slot on the system board.
See Figure 48 (page 120).
2. Install the SAS disk drives, or disk drive blanks, into the server blade.
See “Replacing a SAS Disk Drive” (page 109), or “Replacing a Disk Drive Blank” (page 110).
3. Install the access panel.
See “Replacing the Server Blade Access Panel” (page 112).
4. Place the server blade back into the enclosure and power it up.
See “Replacing the Server Blade in the Enclosure” (page 111).
Removing and Replacing the Front Display Assembly
The following procedures describe how to remove and replace the front display assembly on the
server blade. The front display assembly is attached to the front of the server blade.
Removing the Front Display Assembly
To remove the failed front display assembly on the server blade:
1. Power off the server and remove it from the enclosure.
See “Preparing the Server Blade for Servicing” (page 110).
2. Remove the access panel.
See “Removing the Server Blade Access Panel” (page 112).
3. Remove the four screws that hold the front display assembly to the front of the server blade.
There are two screws on each side (1).
See Figure 49.
120 Removing and Replacing Components
