2. Close the lever to lock the drive into place (2).

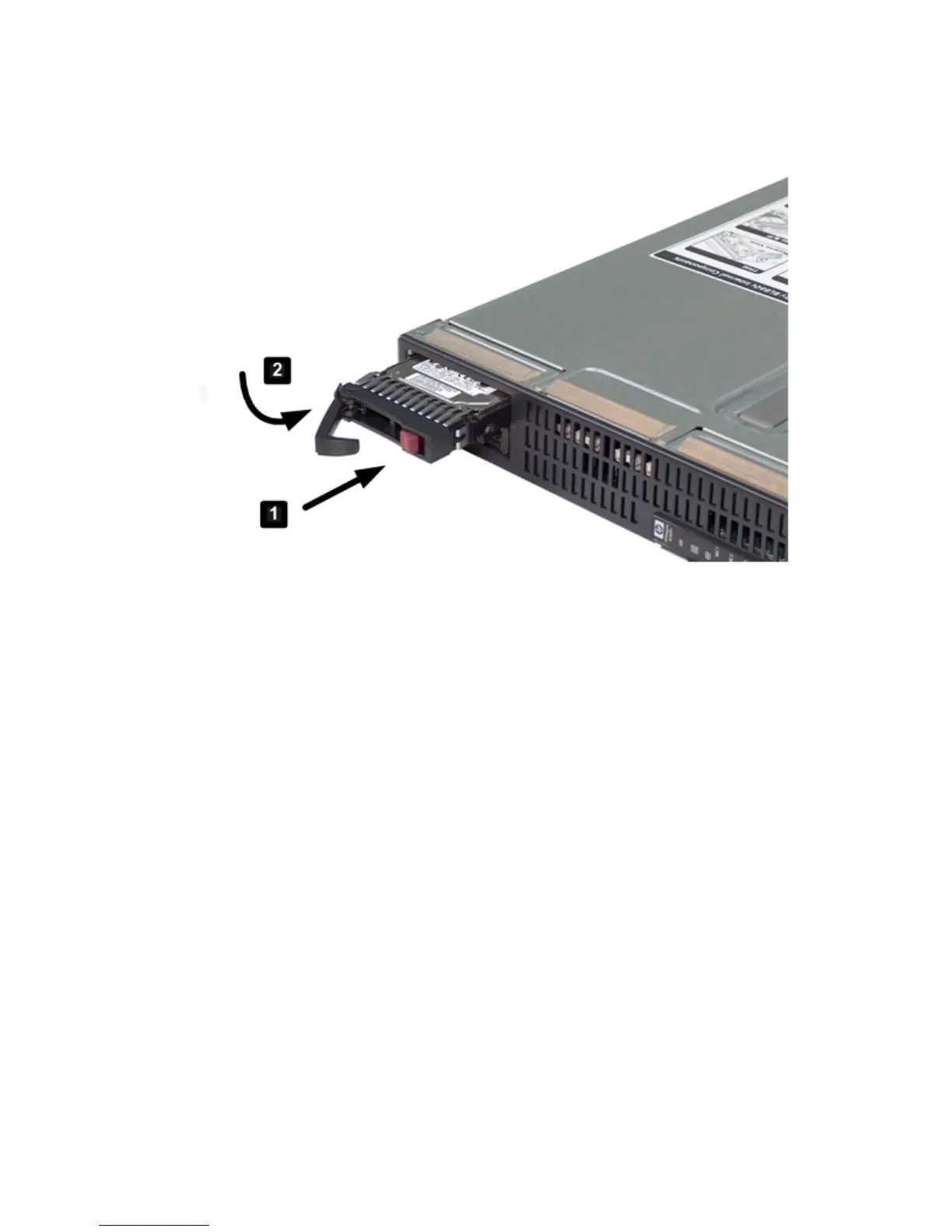

Figure 10 Installing a Hot-Plug SAS Disk Drive
Installing Internal Components
Use these procedures to install internal components that were not installed into your server blade.
Before you can install the internal components, you must remove the access panel.
Removing the Access Panel
To remove the access panel:
1. Unlock the cam on the access panel latch (if necessary) by turning the lock on the access panel
latch counter-clockwise with a Torx T-15 or flathead screwdriver. See Figure 11.
2. Pull up on the access panel latch (1). This causes the access panel to slide back about 2 cm
(0.75 in).
3. Remove the access panel by lifting it straight up and off the server blade (2).
Installing Additional Components 29
