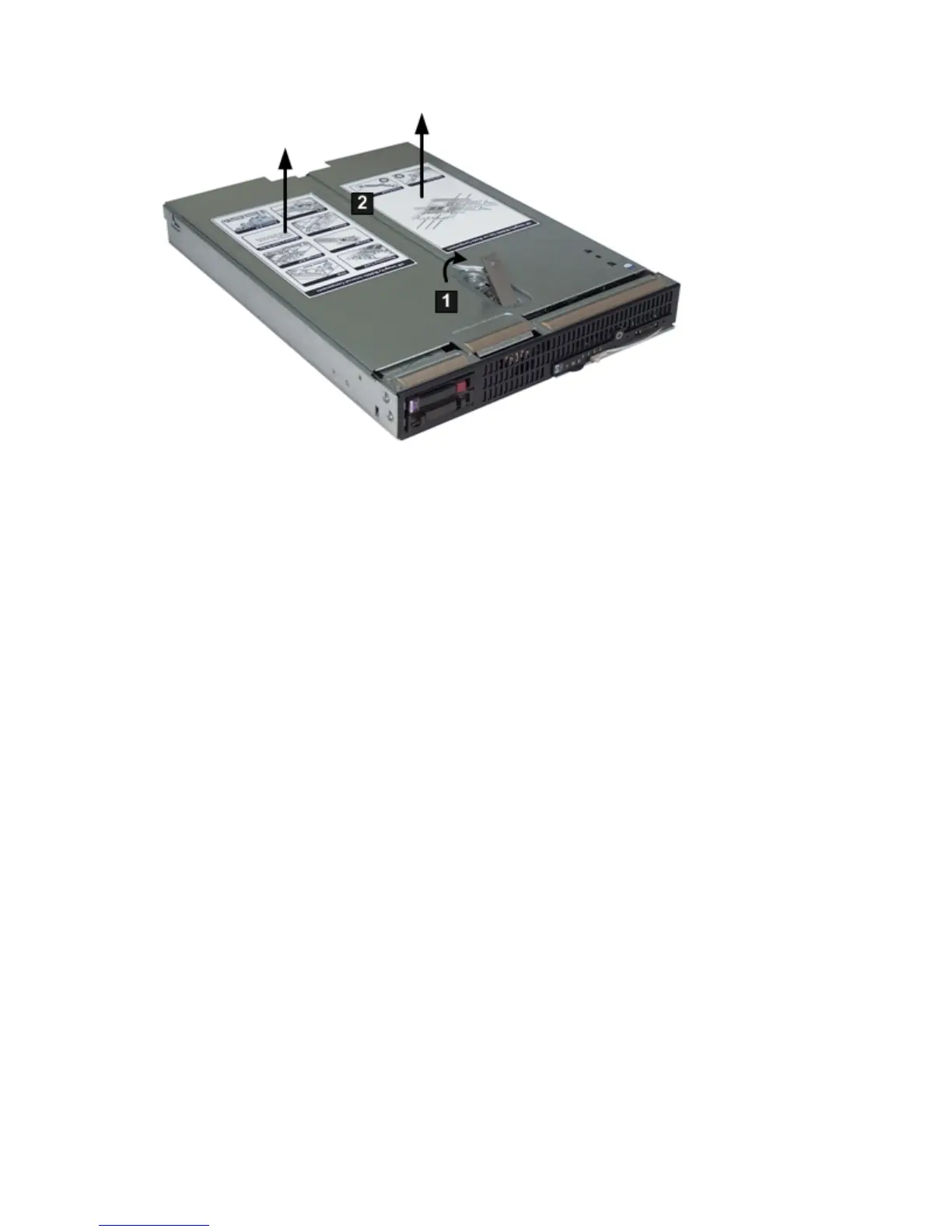

Figure 11 Removing the Server Blade Access Panel
After the access panel is off, you can do the following:
• Add an additional processor.
See “Installing a Processor” (page 30).
• Add additional memory DIMMs.
See “Installing DIMMs” (page 32).
• Add additional mezzanine cards.
See “Installing Mezzanine Cards” (page 33)
Installing a Processor
Use this procedure to install an additional processor into the server blade.
To install a processor:
1. Remove the dust cover from the empty processor 1 slot on the system board (if necessary).
2. Make sure the ZIF socket lock for the empty processor 1 slot on the system board is unlocked
by turning the cam counter-clockwise 180 degrees with the processor installation tool (1).
If the socket lock does not turn, the socket is open and ready for the processor to be installed.
Figure 12 shows the ZIF socket lock in the unlocked position.
30 Installing the Server Blade Into the Enclosure
