Service Tools Required
Service of this product can require the following tools:
• An IPF Processor Install Tool Kit, consisting of:
• Disposable ESD Kit
• Processor installation tool (2.5 mm hex and Torx 15 screwdriver)
NOTE: If you purchased an additional processor, the IPF Processor Install Toolkit is
included with the processor.
The server blade has a Torx T–15 screwdriver mounted on the inside of the access panel.
Adding a Hot-Plug SAS Disk Drive
Use the following procedures if the server blade has a disk drive blank installed and you need to
install a hot-plug SAS disk drive.
For a list of supported SAS disk drives for the server blade, see: http://h18004.www1.hp.com/
products/blades/components/c-class-storage.html
1. Press the release buttons simultaneously. See Figure 9.
2. Pull the blank out of the drive bay.

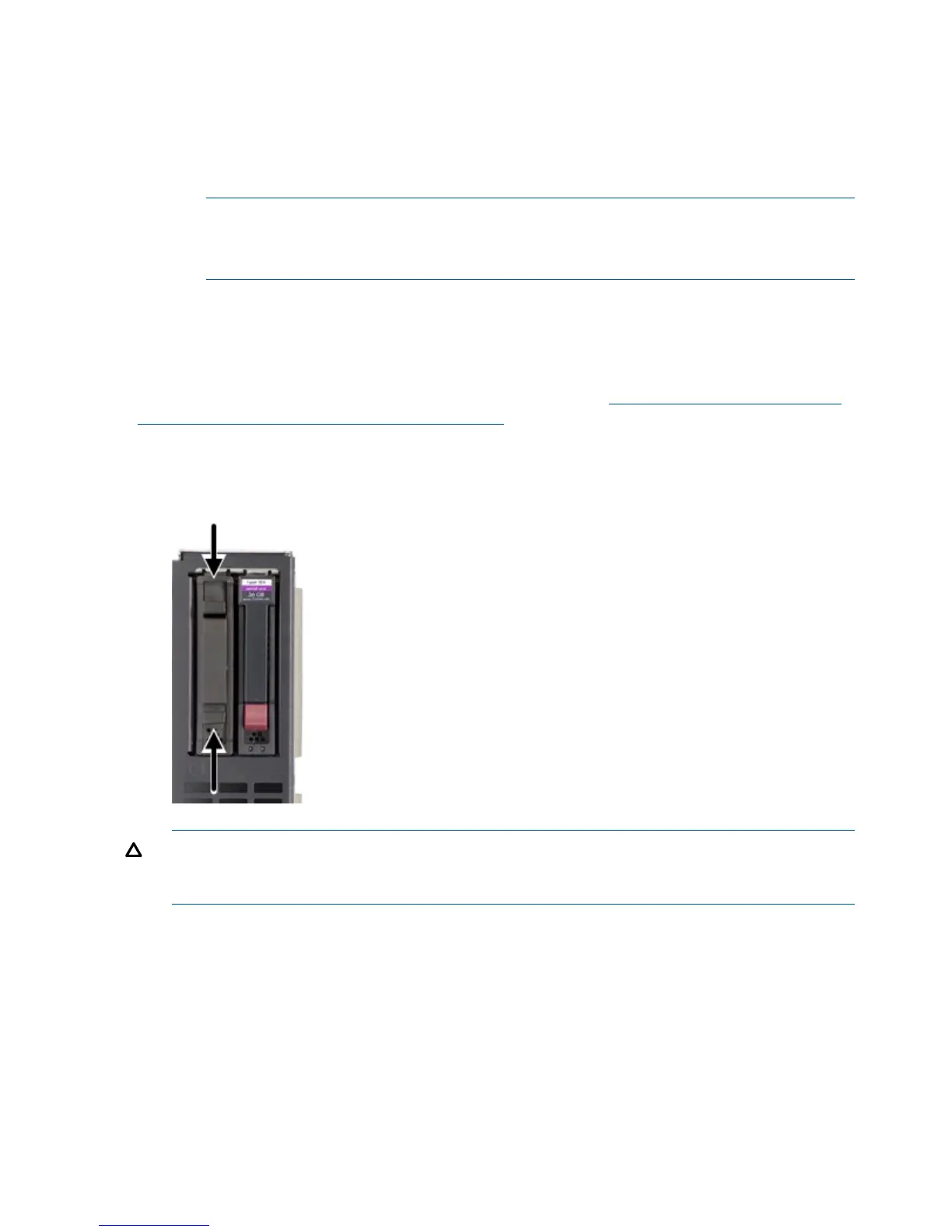

Figure 9 Removing a Disk Drive Blank
CAUTION: Always populate hard drive bays with either a SAS disk drive or a disk drive
blank. Operating the server blade without a SAS disk drive or disk drive blank causes improper
airflow and cooling that can lead to thermal damage to the server blade.
To install a SAS disk drive:
1. Slide the drive into the cage until it is fully seated (1).
See Figure 10.
28 Installing the Server Blade Into the Enclosure
