4. Grasp the mezzanine card by the edges and lift it off of the port.
NOTE: Mezzanine card 2 is installed above mezzanine card 1 on the system board. If you
remove mezzanine card 1, remove mezzanine card 2 to access it (if it is installed).

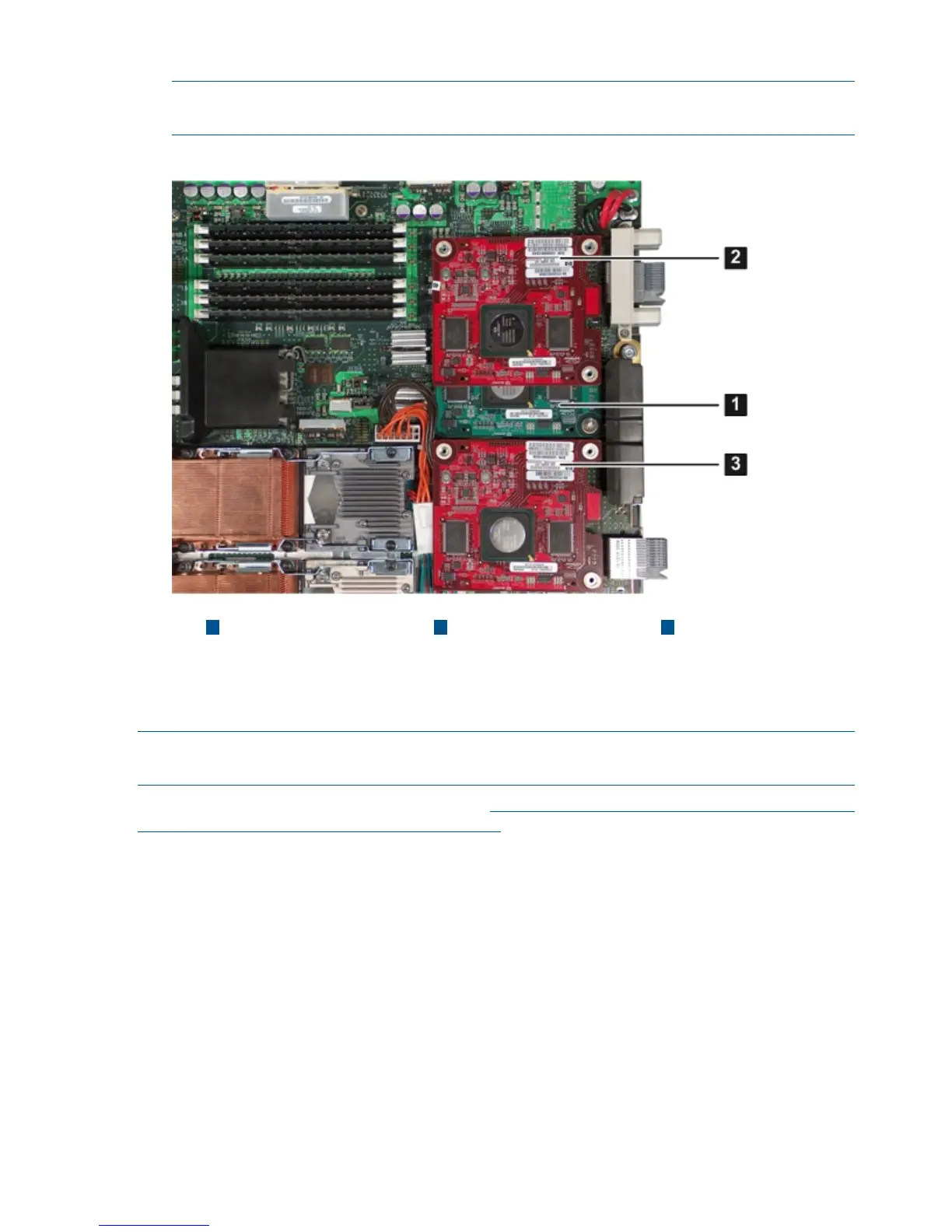

Figure 52 Server Blade with All Three Mezzanine Cards Installed
321
Mezzanine card 3
(PCIe x8)
Mezzanine card 2
(PCIe x8)
Mezzanine card 1
(PCIe x4)
Replacing a Mezzanine Card
To replace a mezzanine card on the system board:
NOTE: If you are installing mezzanine card 1, remove mezzanine card 2 to access it (if necessary).
Mezzanine card 2 is installed above mezzanine card 1 on the system board.
For a matrix of supported mezzanine cards, see http://h71028.www7.hp.com/enterprise/cache/
316682-0-0-0-121.html?jumpid=reg_R1002_USEN.
1. Grasp the mezzanine card by its edges, and line the card up with the post on the system
board. See Figure 52 (page 124) for mezzanine card locations on the system board.
2. Push down on the card right above the port to seat it into the port.
3. Tighten the three thumbscrews to secure the card to the system board.
4. Install the access panel.
See “Replacing the Server Blade Access Panel” (page 112).
5. Place the server blade back into the enclosure and power it up.
See “Replacing the Server Blade in the Enclosure” (page 111).
Removing and Replacing a Cache Module
The following procedures describe how to remove and replace a cache module from the server
blade. Cache modules are used by some mezzanine controller boards.
124 Removing and Replacing Components
