HP Integrity BL860c - Connecting Terminal to Server Blade

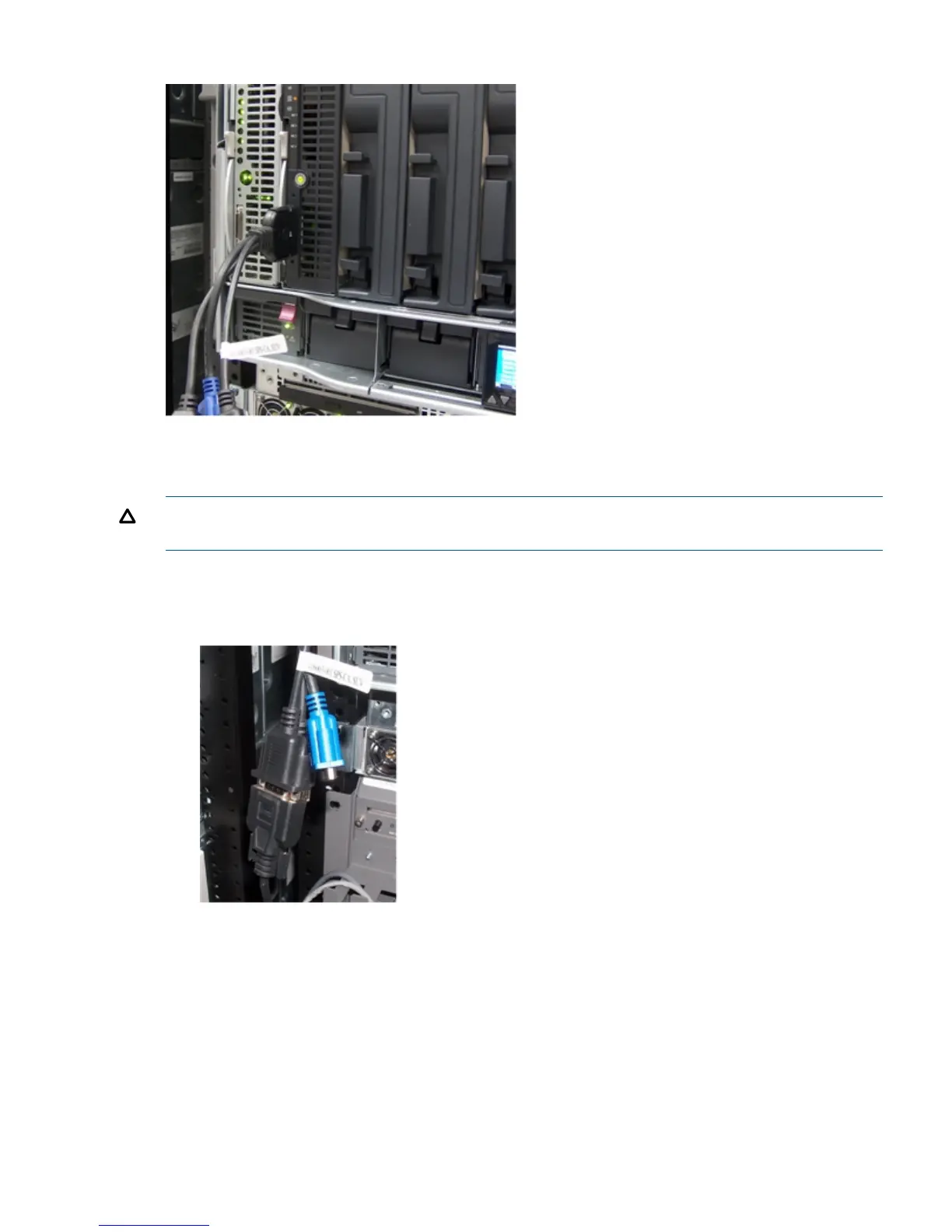

Figure 25 Connecting the SUV Cable to the Server Blade
Connecting a Terminal to the Server Blade
To establish a connection from your server to your terminal (or emulator device):
CAUTION: Disconnect the SUV cable from the port when not in use. The port and connector are
not intended to provide a permanent connection.
1. Connect the standard DB9f to DB9f modem eliminator cable to the RS-232 port on the SUV
cable. See Figure 26.
Figure 26 Serial Connector on the SUV Cable
2. Connect the other end of the DB9f to DB9f modem eliminator cable to your terminal device.
For more information about iLO 2 MP functions, see the HP Integrity iLO 2 Operations Guide.
3. Verify that the parameters for RS-232 serial port communication are set to the following values
on your terminal or emulator device:
• VT 100 protocol
• 8/none (parity)
• 9600 baud
• None (receive)
• None (transmit)
