Table 14 Advanced Low End Troubleshooting (continued)
ActionSymptom/ConditionStep
You must hard reset the server
blade to clear the fatal condition
and boot the OS.
Preceding problem is fixed when the MCA does not repeat.
Troubleshooting Tools
The HP Integrity BL860c server blade uses LEDs and other tools to help troubleshoot problems that
occur in the server blade.
Front Panel LEDs
The front panel of the server blade contains the unit identifier (UID) LED, server health LED, internal
health LED, and the network interface controller (NIC) LEDs. Figure 33 shows the front panel LED
locations.
Server blades use flashing states (amber or red) on these LEDs to indicate a warning or an error.
There are a total of seven buttons, arranged vertically (when the server blade is installed in the
enclosure).
The BMC controls the server health LED, blade hardware controls the power LED. Both BMC and
iLO 2 MP code determine the state of the health LED.

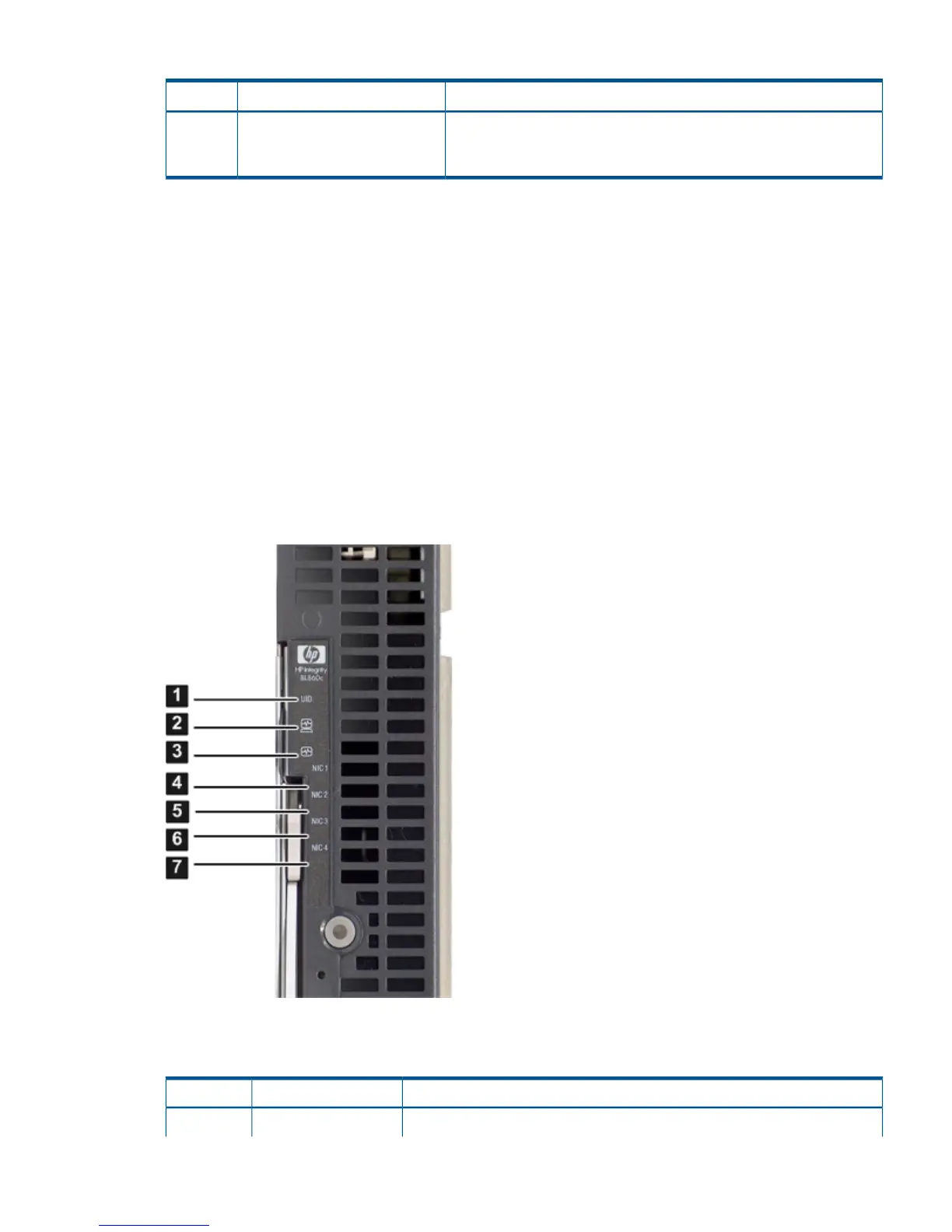

Figure 33 Server Blade Front Panel LEDs
Table 15 details the functions of the front panel LEDs.
Table 15 Server Blade Front Panel LEDs
StatusLED DescriptionItem
Steady Blue = FlaggedUnit Identification (UID)1
Troubleshooting Tools 91
