1. Locate the DIMM slots on the server blade system board.
See Figure 15.
NOTE: The server blade ships with at least two DIMMs installed in slots 0A and 0B.

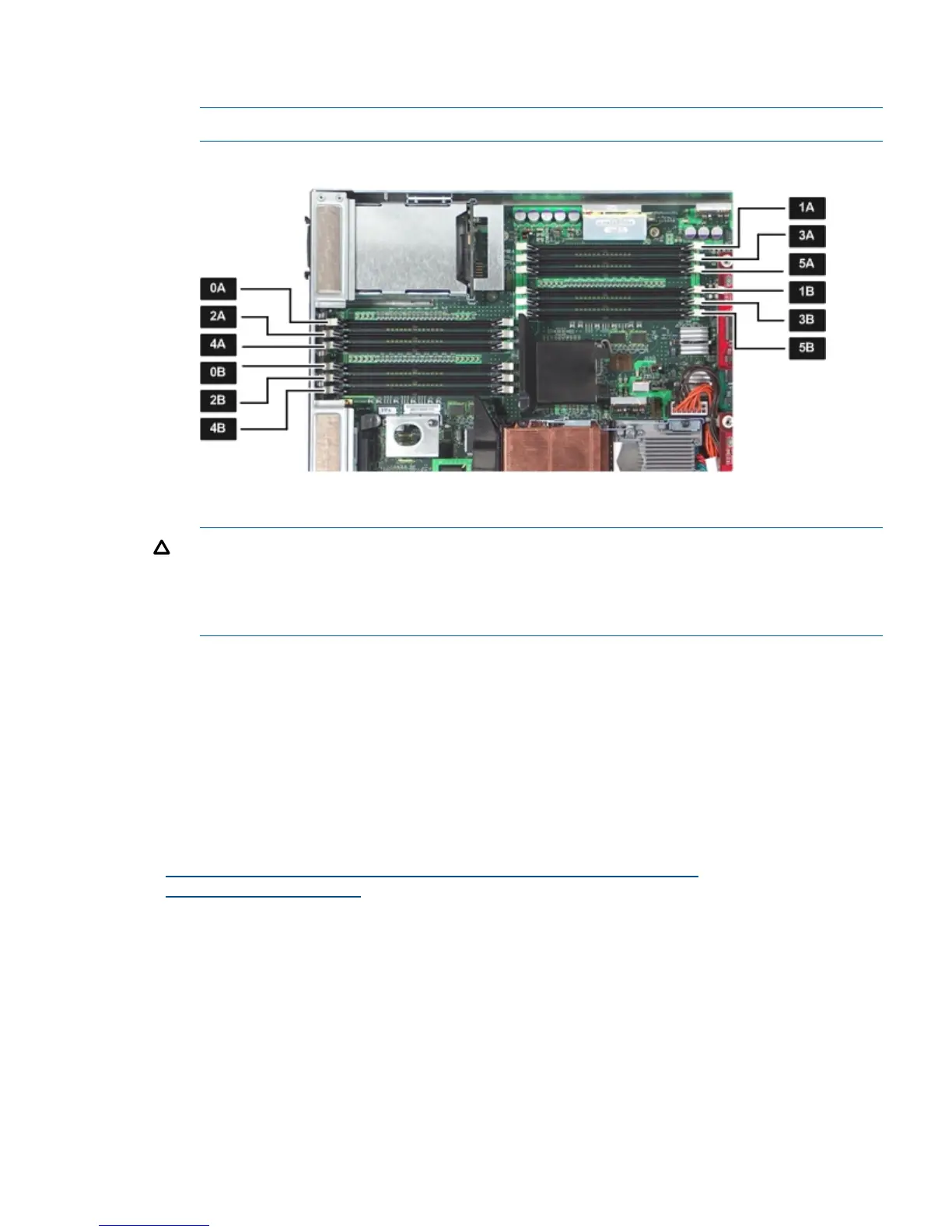

Figure 15 DIMM Slot Locations
2. Ensure the DIMM slot latches are open.
CAUTION: Use only HP low profile (1.2 in.) DIMMs. DIMMs from other sources might
adversely affect data integrity.
DIMMs do not seat fully if turned the wrong way.
DIMMs in a pair must be identical.
3. Insert a DIMM in a slot and push down firmly until the latches click shut.
Installing Mezzanine Cards
The server blade has three ports for mezzanine cards on the system board. These cards provide
I/O capabilities for the server blade. The server supports one Type I mezzanine card, and two
Type II mezzanine cards.
• The Type I mezzanine port supports an Intel PCIe x4 card
• The Type II mezzanine ports support Intel PCIe x8 cards
For more information regarding the different cards supported by the BL860c server blade, see
http://h71028.www7.hp.com/enterprise/cache/316682-0-0-0-121.html?
jumpid=reg_R1002_USEN.
The available power rails for the mezzanine cards are 12 V, 3.3 V, and 3 V auxiliary, with a total
power of 25 W for each card.
Figure 16 shows the mezzanine port locations on the system board.
Installing Additional Components 33
