Internal Health LED
The internal health LED indicates the internal health of the server blade. If the LED is red, the server
blade needs attention. Examine the event logs (on iLO 2 MP) for details of the problem. Table 18
details the states of the internal health LEDs.
Table 18 Internal Health LED States
StatusLED
Server is on and health is goodGreen
Server degraded, check System Event LogAmber
Critical internal error, check System Event LogFlashing red
Server is off, and health last known state is goodOff
NIC LEDs
Table 19 shows the NIC LED status on the server blade.
Table 19 NIC LEDs
StatusLEDs
NIC is connected to the networkSteady green
Network activityFlashing green
No network activityOff
SAS Disk Drive LEDs

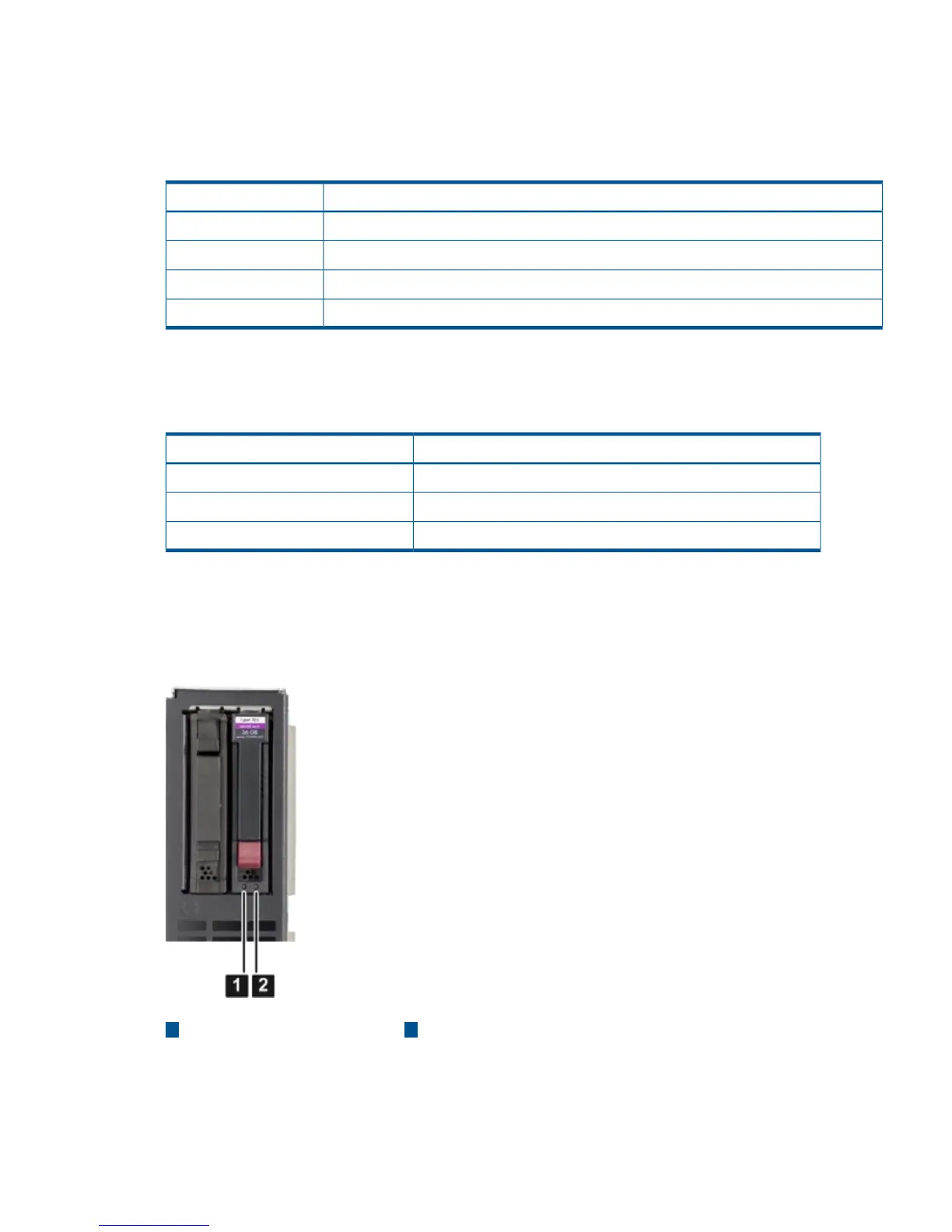

The two SAS disk drives on the server blade have identical LEDs that show the drive status. Figure 34
shows the location drive LEDs.
Figure 34 SAS Disk Drive LEDs
21
Status LEDActivity LED
Table 20 details the functions of the hard disk drive LEDs.
Troubleshooting Tools 93
