Front Panel View
The server blade has seven server LEDs, one Power button, two Reset buttons, SAS disk drive LEDs
and one front panel port that accepts the serial, USB, video (SUV) cable for configuration and

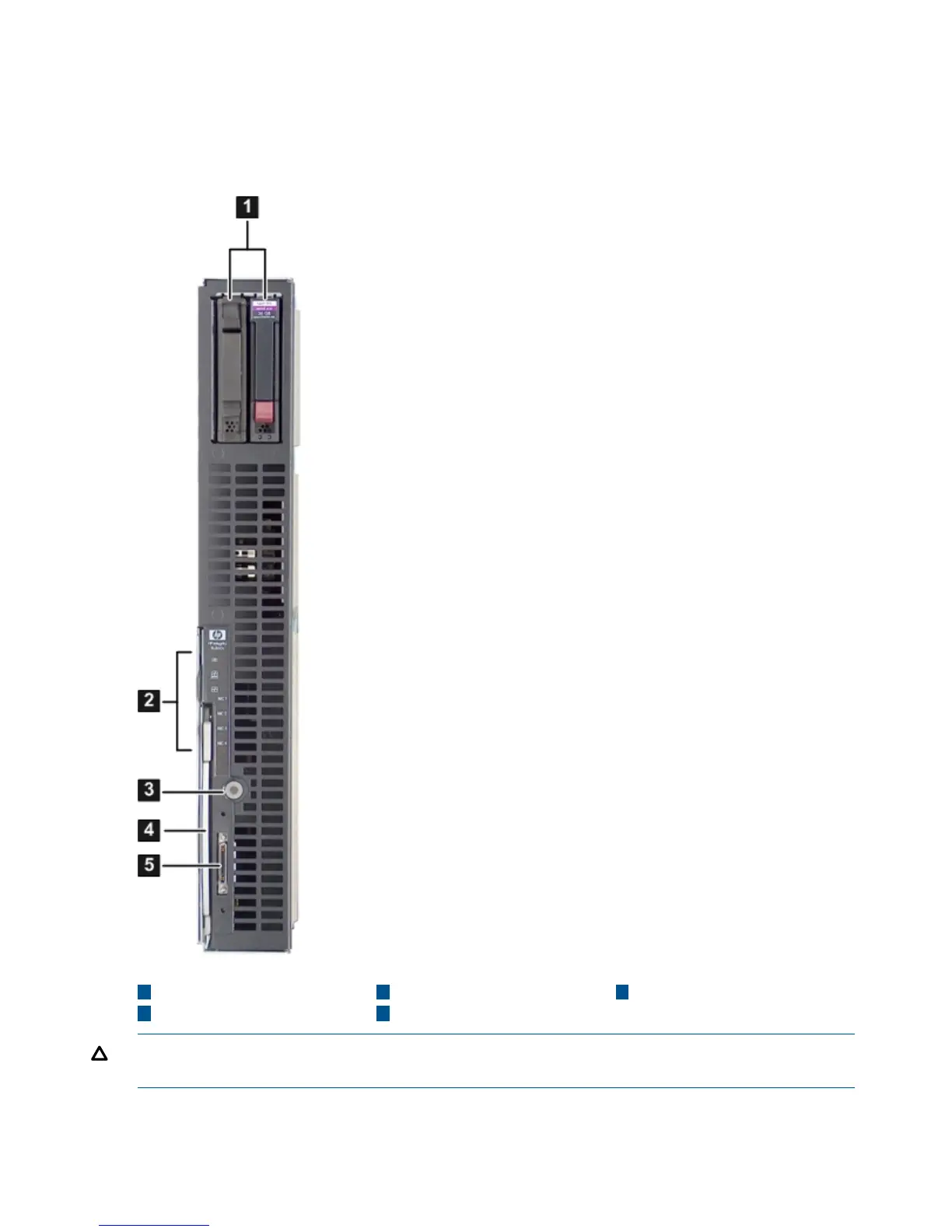

troubleshooting. Figure 3 shows the LEDs, ports, and controls on the front panel of the server blade.
Figure 3 Server Blade Front View
53
Power button
1
SAS disk drives SUV cable port
42
Blade extraction handleFront panel LEDs
CAUTION: Disconnect the local I/O cable from the I/O port when not in use. The connector is
not designed to provide a permanent connection.
Front Panel LEDs
The server blade contains seven LEDs on the front panel that indicate the server status.
20 Overview
