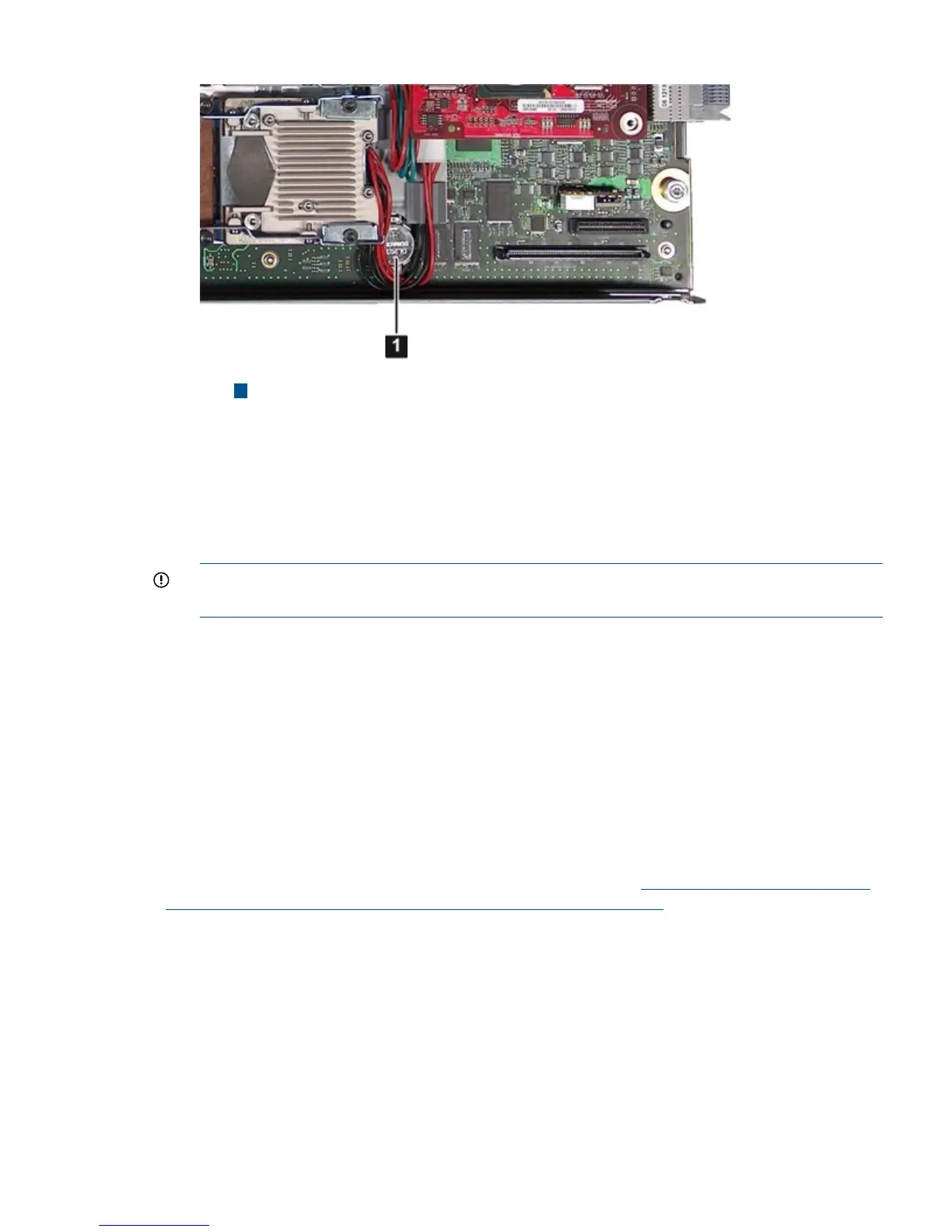

Figure 51 Server Battery Location
1
Server battery on the
system board
5. Dispose of the server battery by following your local requirements.
Replacing the Server Battery
To replace the server battery:
1. Install the new server battery by gently pushing the battery into the socket. Move the processor
0 power cable if necessary.
IMPORTANT: Ensure that the new battery is fully seated and that all locking tabs are correctly
engaged.
2. Install the access panel. See “Replacing the Server Blade Access Panel” (page 112).
3. Place the server blade back into the enclosure and power it on. See “Replacing the Server
Blade in the Enclosure” (page 111).
Removing and Replacing the Mezzanine Cards
The following procedures describe how to remove and replace the three mezzanine cards available
on the server blade. The server blade supports up to three PCIe mezzanine cards. Slot 1 is a PCIe
x4 slot, and slots 2 and 3 are PCIe x8 slots.
Removing a Mezzanine Card
To determine which card you are replacing, see Figure 52 (page 124). For more information
regarding the different cards supported by the server blade, see http://h71028.www7.hp.com/
enterprise/cache/316682-0-0-0-121.html?jumpid=reg_R1002_USEN.
To remove a mezzanine card from the server blade:
1. Power off the server and remove it from the enclosure.
See “Preparing the Server Blade for Servicing” (page 110).
2. Remove the access panel.
See “Removing the Server Blade Access Panel” (page 112).
3. Unscrew the thumbscrews holding the card you are replacing.
Removing and Replacing the Mezzanine Cards 123
