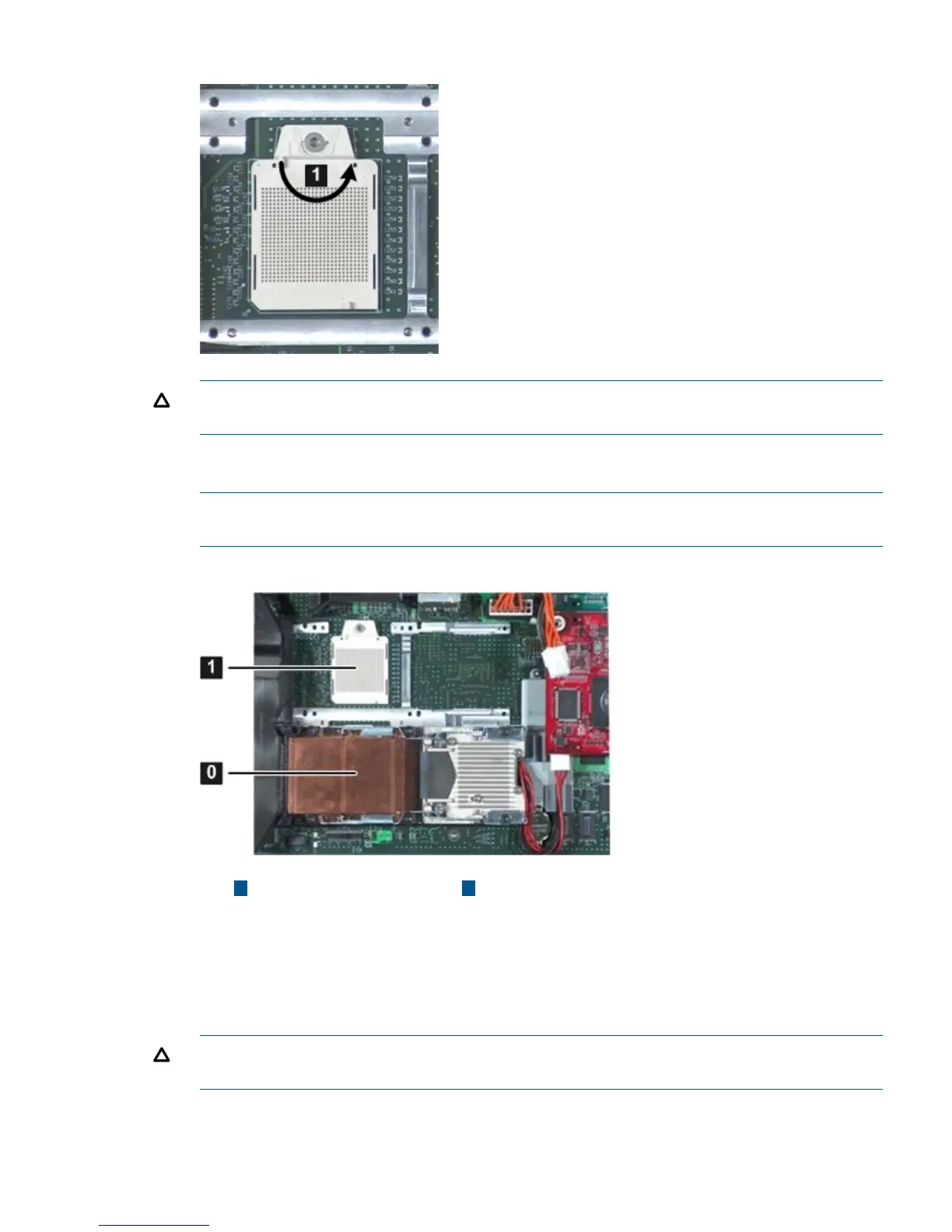

Figure 12 Unlocked ZIF Socket
CAUTION: Do not tighten the ZIF socket lock more than 180 degrees in either direction.
This severely damages the socket and processor, and renders the processor slot unusable.
3. Install the processor into processor slot 1 on the system board by lining up the alignment pins
on the processor with the holes in the processor slot.
NOTE: Processor 0 is already installed in the server blade. See Figure 13 for slot locations
on the server blade system board.
Figure 13 Processor Slot Identification
21
Processor slot 1
(empty)
Processor slot 0 (filled)
4. Ensure the processor is seated correctly by pressing down gently on the processor. The
processor should not move, or rock back and forth. Reseat the processor if necessary.
5. Tighten the ZIF socket lock by turning the lock 180 degrees clockwise with the processor
installation tool. Press down gently on the processor when tightening the ZIF socket to ensure
the lock engages properly.
CAUTION: Do not tighten the ZIF socket lock more than 180 degrees in either direction.
This severely damages the socket and processor, and renders the system board unusable.
6. To tighten the captive shoulder screws 1 through 4 on the processor, tighten them 2 full turns
once they engage the threads. When all four shoulder screws are engaged, tighten them in
the order shown in Figure 14 with the Torx T-15 screwdriver.
Installing Additional Components 31
