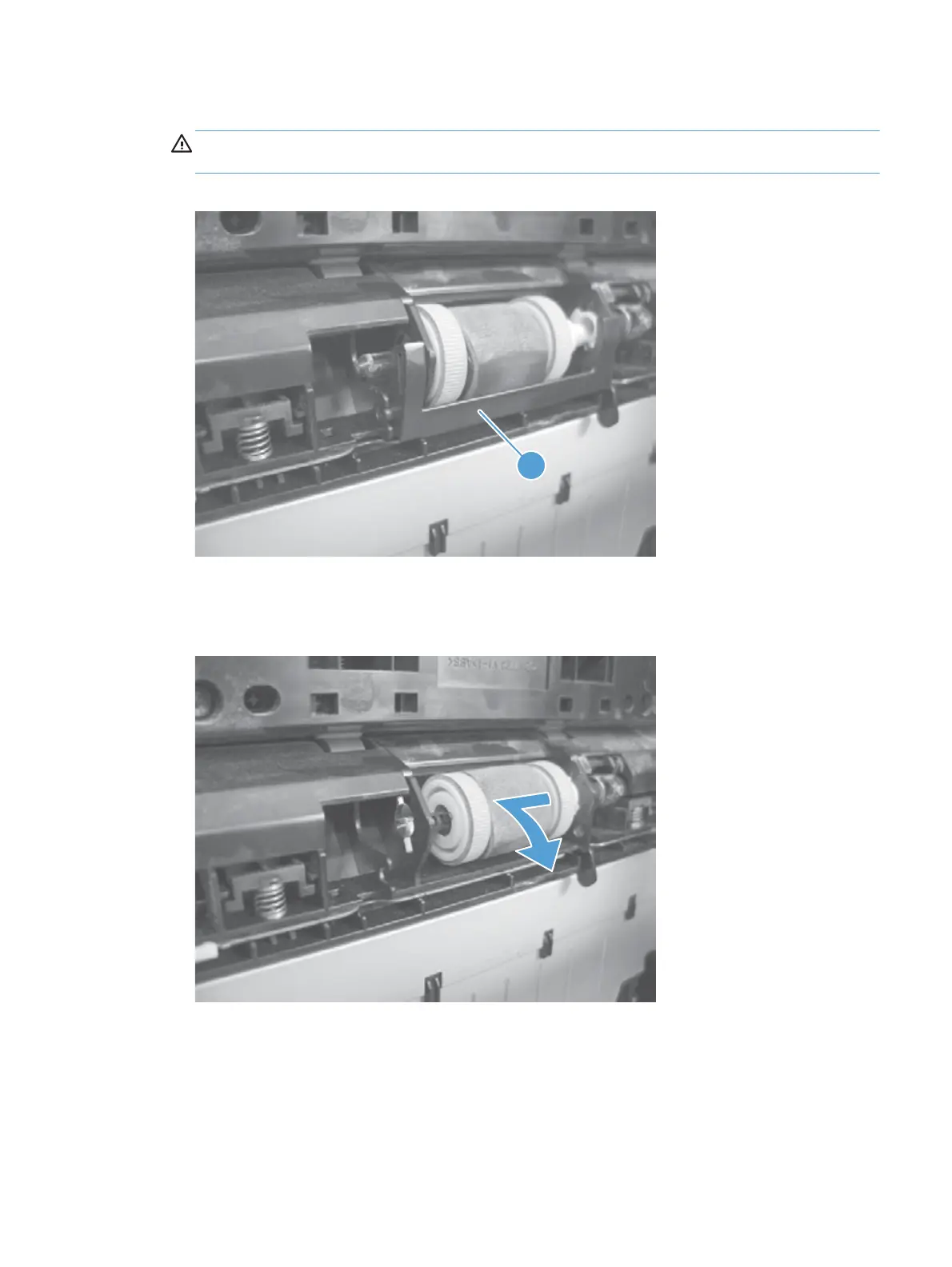

3. Carefully remove the black-plastic guard (callout 1).
CAUTION: The guard is partially retained by the bushing removed in the previous step. Do not
lose the guard when the bushing is removed.
Figure 1-148 Remove the Tray 2, 3, or 4 pickup roller (2 of 3)
1
4. Slide the roller toward the left side of the product, rotate the right end of the roller away from the
product, and then remove the roller assembly.
Figure 1-149 Remove the Tray 2, 3, or 4 pickup roller (3 of 3)
ENWW
Removal and replacement procedures
99
