ADF assemblies and scanner
Deskew mylar and separation mylar
1. Open the jam-access cover.
NOTE: Check the orientation of the deskew mylar before removing.

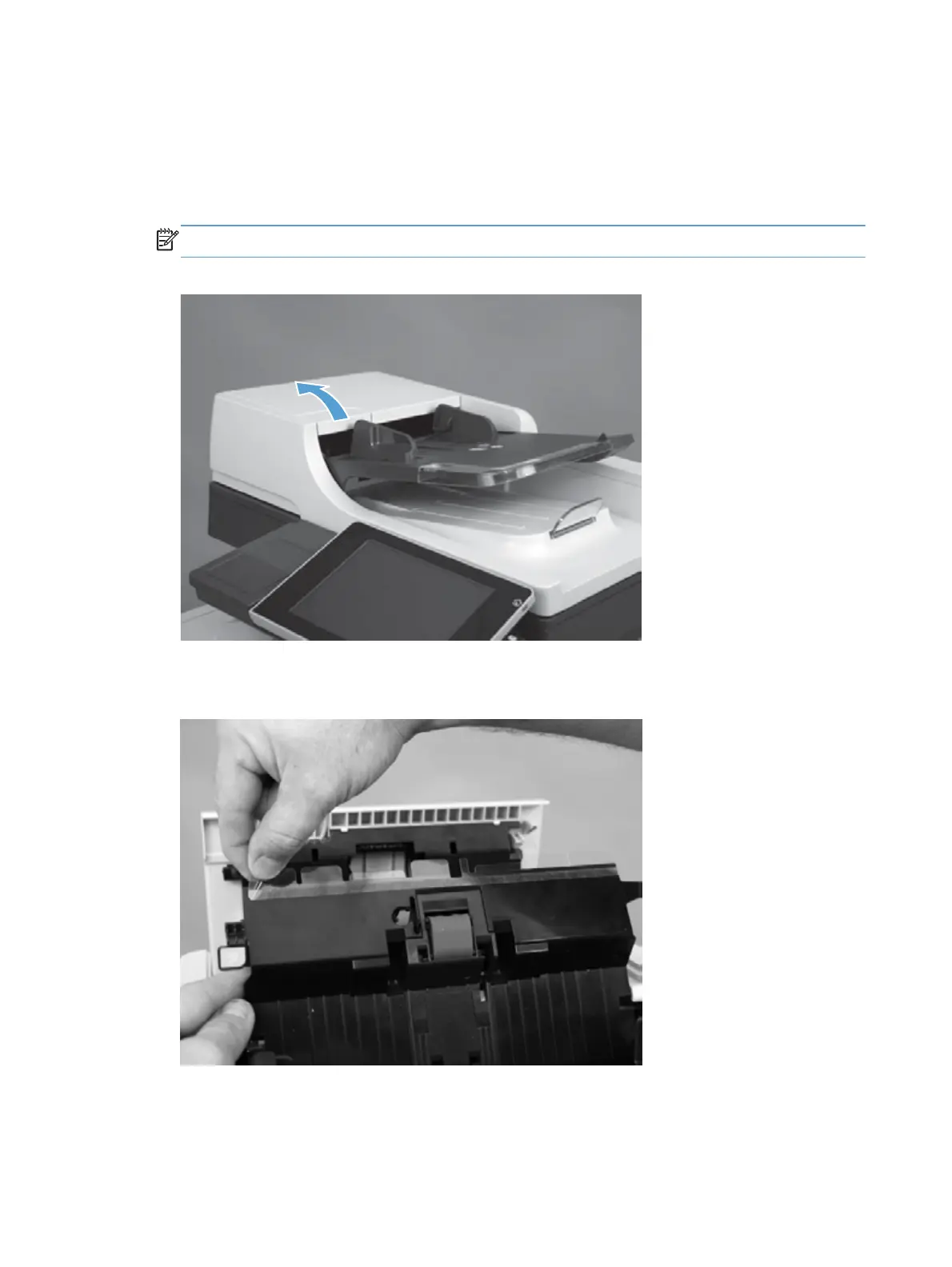

Figure 1-106 Remove the deskew mylar and separation mylar (1 of 3)
2. Carefully peel off the deskew mylar
Figure 1-107 Remove the deskew mylar and separation mylar (2 of 3)
