Required tools
#2 Phillips 152 mm (6 in) screwdriver with magnetic tip
#2 Phillips 76 mm (3 in) screwdriver with magnetic tip
Small flat blade screwdriver
Small needle-nose pliers
ESD mat
Penlight
CAUTION: Always use a Phillips screwdriver (callout 1). Do not use a Pozidriv® screwdriver
(callout 2) or any motorized screwdriver. These can damage screws or screw threads.

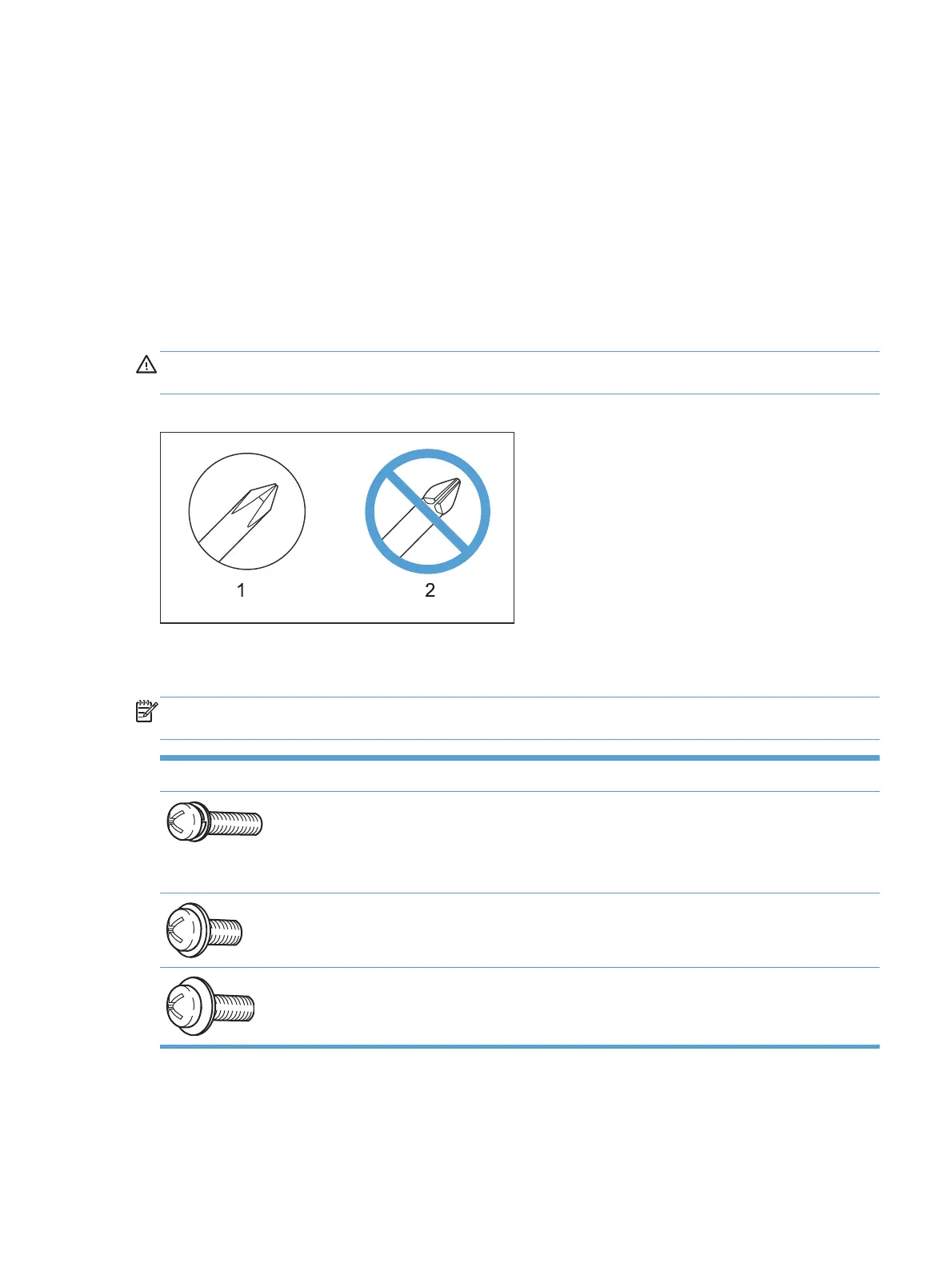

Figure 1-1 Phillips and Pozidriv screwdriver comparison
Types of screws
NOTE: The illustration in this section are for reference only. The screws in your product might look
slightly different.
Illustration Description Size Part number Use
Screw with washer M3X6 XB2-7300-000CN Used to secure metal
components to metal
components (for
example, a ground
wire to the frame)
Screw, tapping M3X6 XA9-1503-000CN
Screw D-M3X6 XA9-1671-000CN
ENWW
Removal and replacement strategy
3
