ADF PCA
WARNING! ESD sensitive component.
1. Before proceeding, remove the following:
ADF rear cover. See
ADF rear cover on page 59.
2. Disconnect five connectors (callout 1), remove one screw (callout 2), and then remove the PCA.

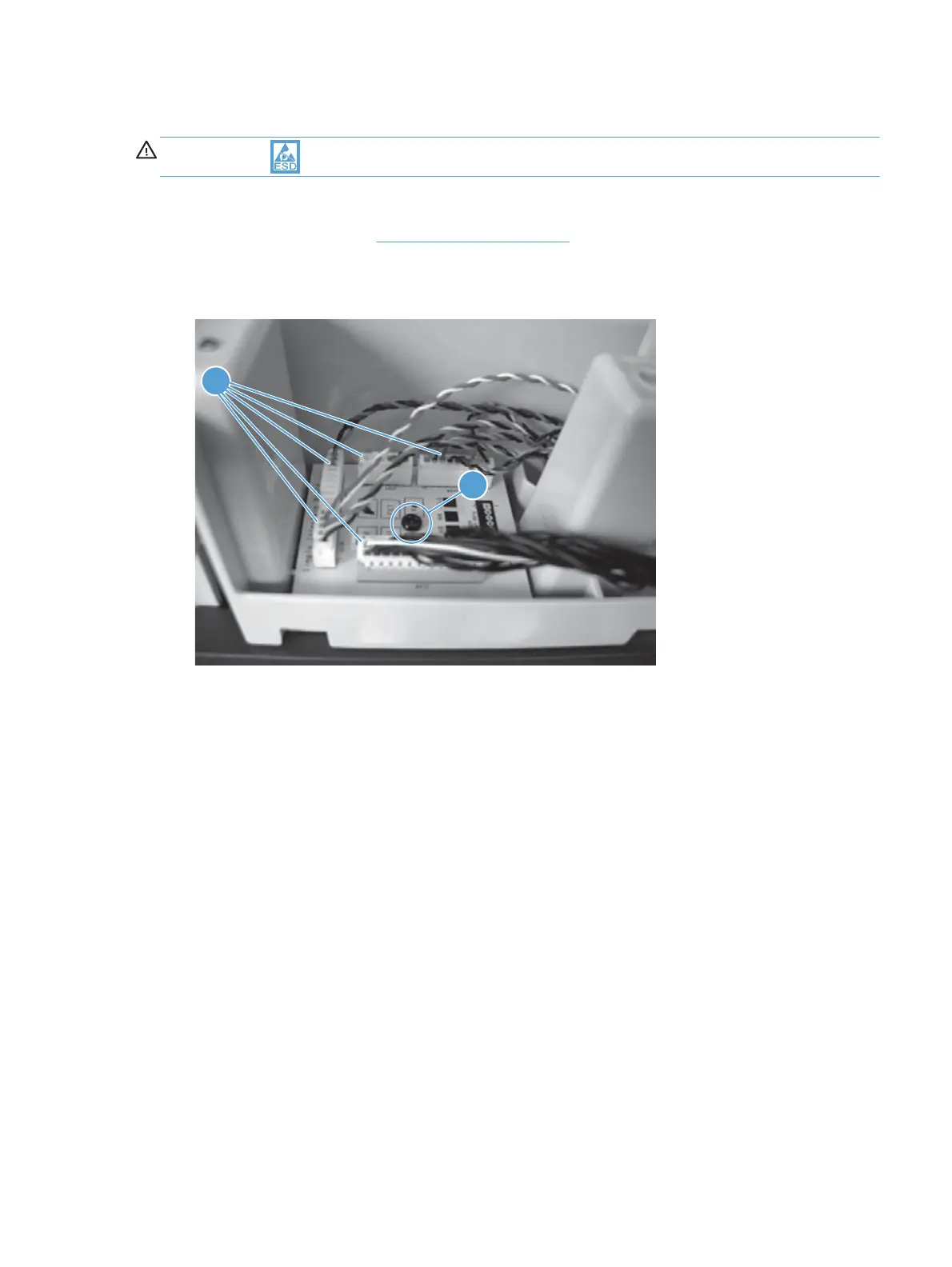

Figure 1-111 Remove the ADF PCA
1
2
ENWW
Removal and replacement procedures
73
