Registration roller assembly
1. Before proceeding, remove the following components:
Rear cover assembly. See
Rear cover assembly on page 44.
Left cover. See
Left cover on page 48.
2. Unhook the clasp on the registration roller assembly gear (callout 1), and then slide the gear off of
the shaft.

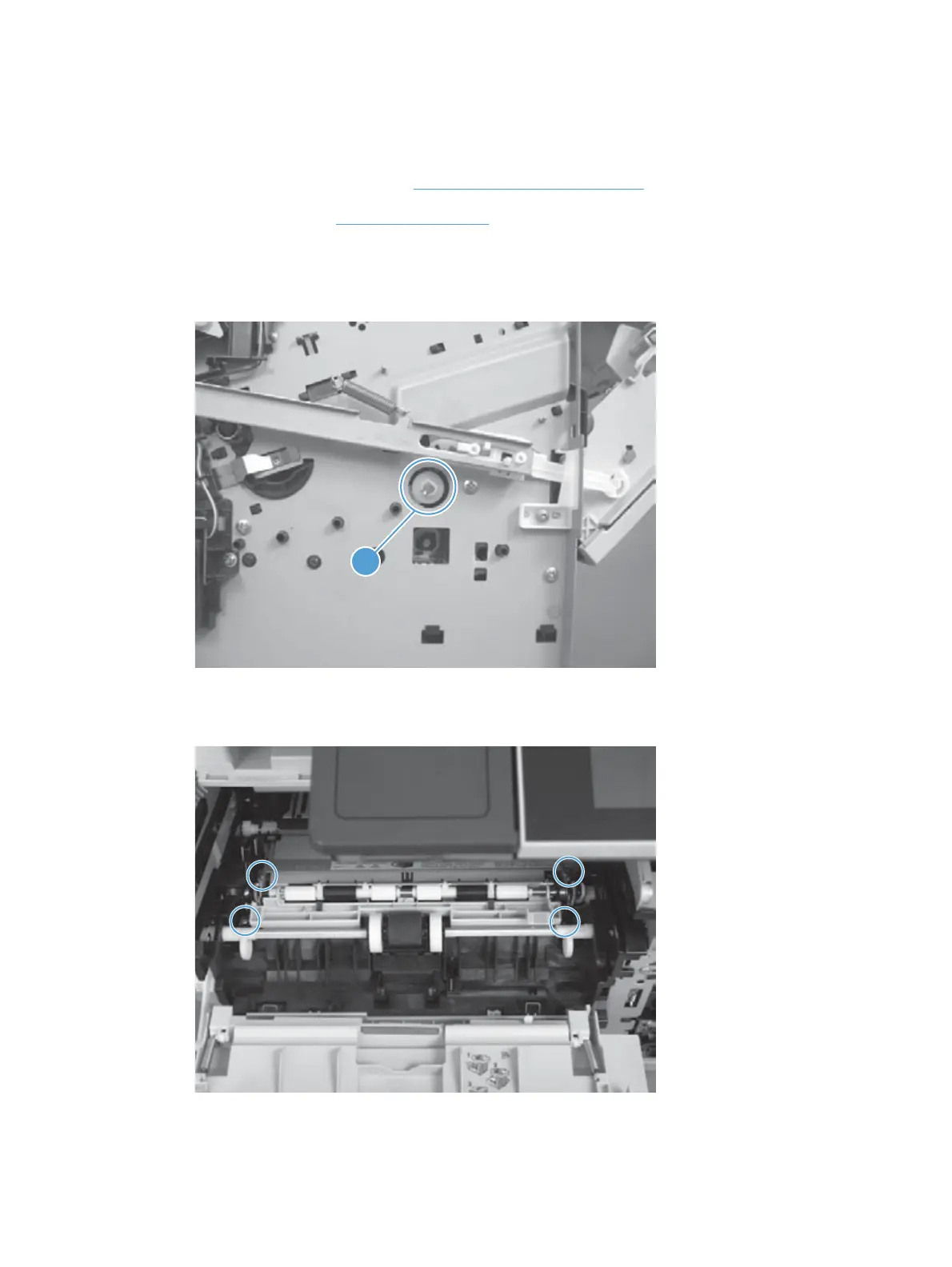

Figure 1-167 Remove the registration roller assembly (1 of 3)
1
3. Open the cartridge door, and then remove four screws.
Figure 1-168 Remove the registration roller assembly (2 of 3)
ENWW
Removal and replacement procedures
111
