ADF whole unit kit
1. Before proceeding, remove the following:
●
Formatter cover. See
Formatter cover on page 37.
●
Rear scanner cover. See
Rear scanner cover on page 56.
2. Open formatter cage.

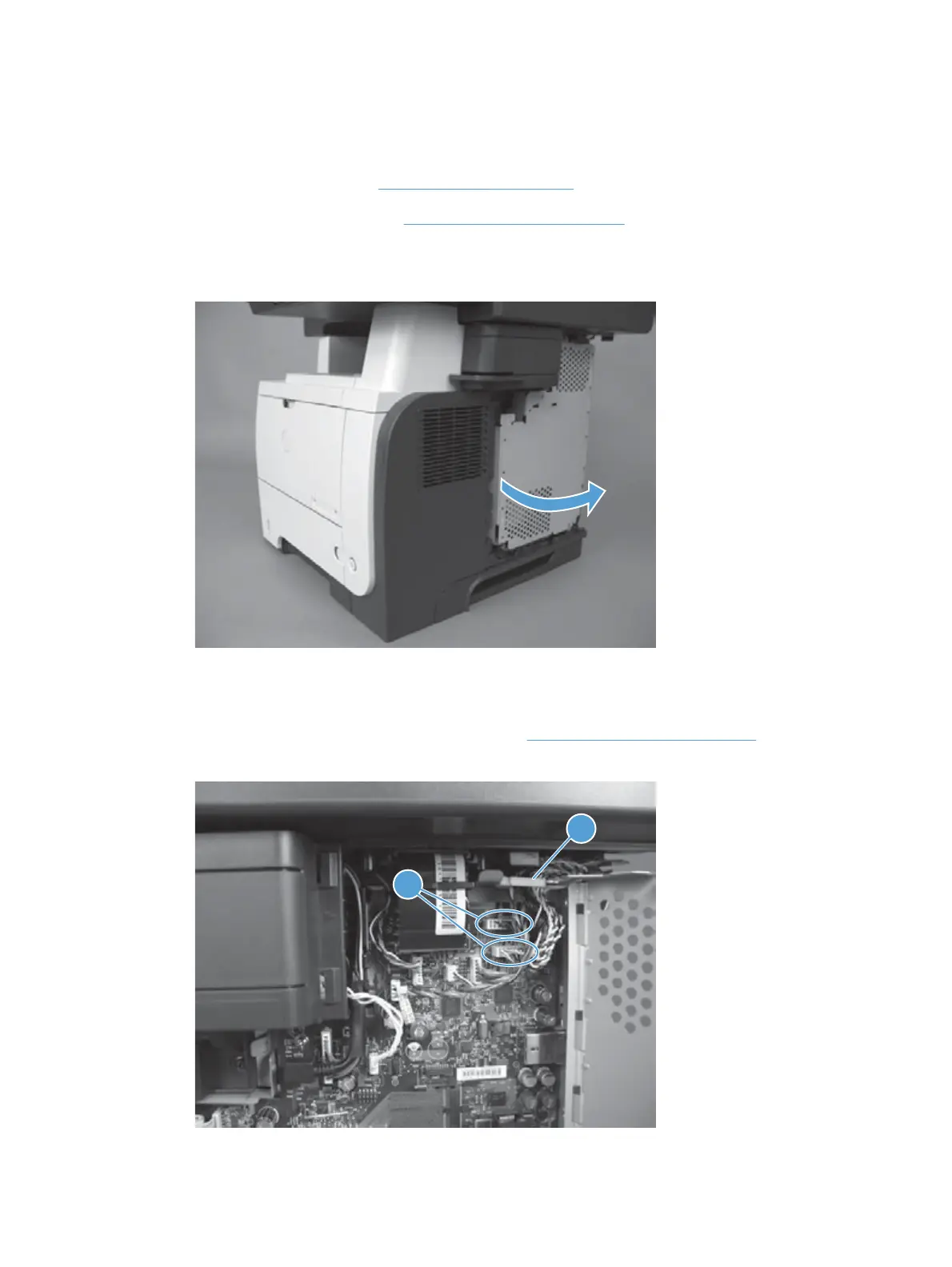

Figure 1-132 Remove the ADF whole unit kit (1 of 4)
3. Disconnect two connectors (callout 1) from the formatter PCA and then release the wire harness
from its retainer (callout 2).
To locate the formatter connector locations, see
Formatter connections on page 9.
Figure 1-133 Remove the ADF whole unit kit (2 of 4)
2
1
