7. Slide the scanner toward the rear of the product (callout 1) until it stops. Lift the scanner (callout 2)
to remove.

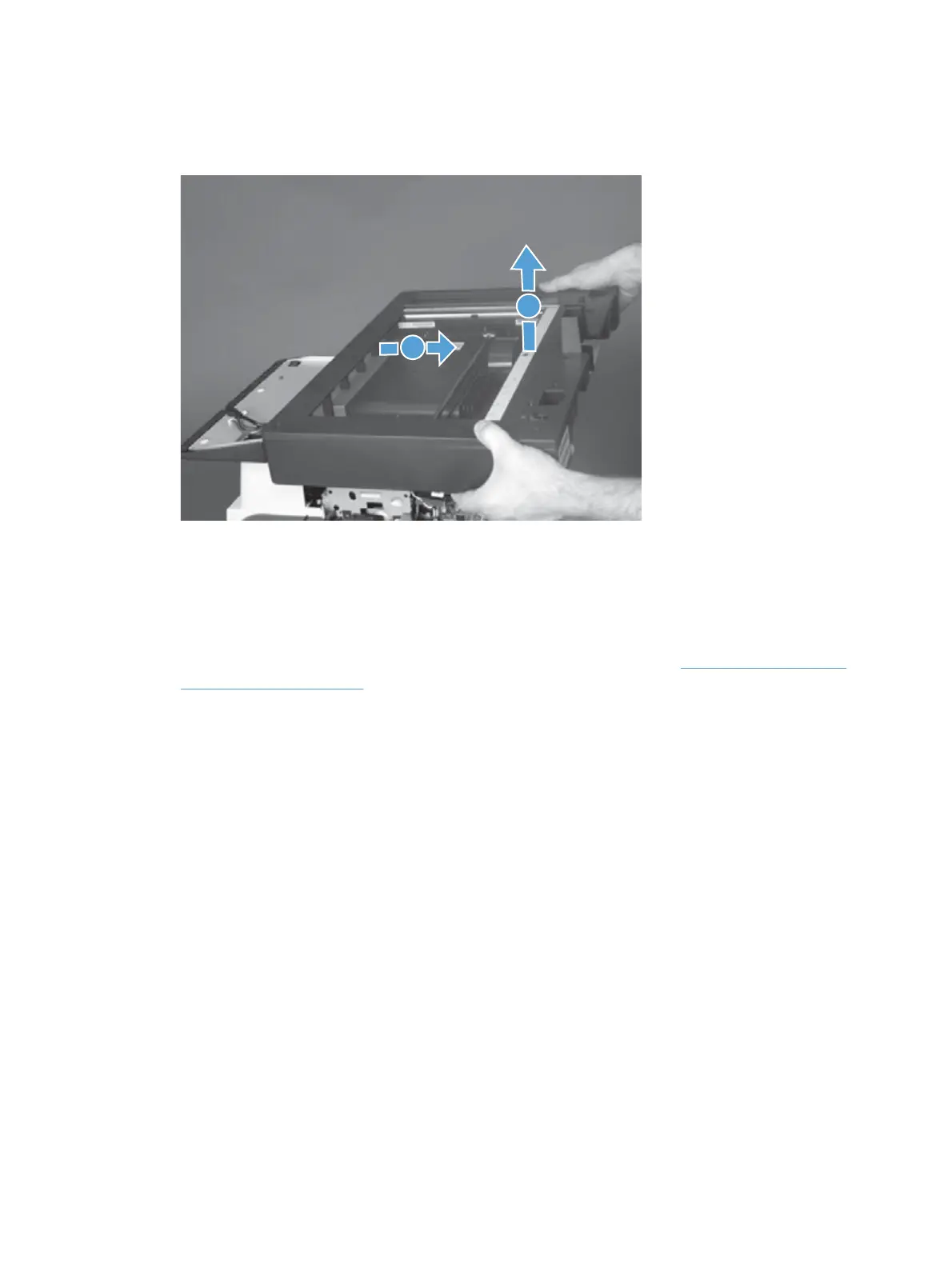

Figure 1-142 Remove the image scanner whole unit kit (6 of 6)
1
2
Reinstall the image scanner
Install foam reflector kit on the ADF
If a replacement ADF, image scanner, or both assemblies are installed, you must install a
replacement foam reflector kit that came with the replacement part. See
Foam reflector kit (white
ADF backing) on page 19.
Calibrate the image scanner
1. On the control-panel Home screen, scroll to and touch Device Maintenance.
2. Touch Calibration/Cleaning.
3. Touch Calibrate Scanner.
4. Follow the instructions on the control-panel display.
94 Chapter 1 Removal and replacement ENWW
